Canistercare; Motor Safety Filter Cleaning - Sears Kenmore Vacuum Cleaner Owner's Manual

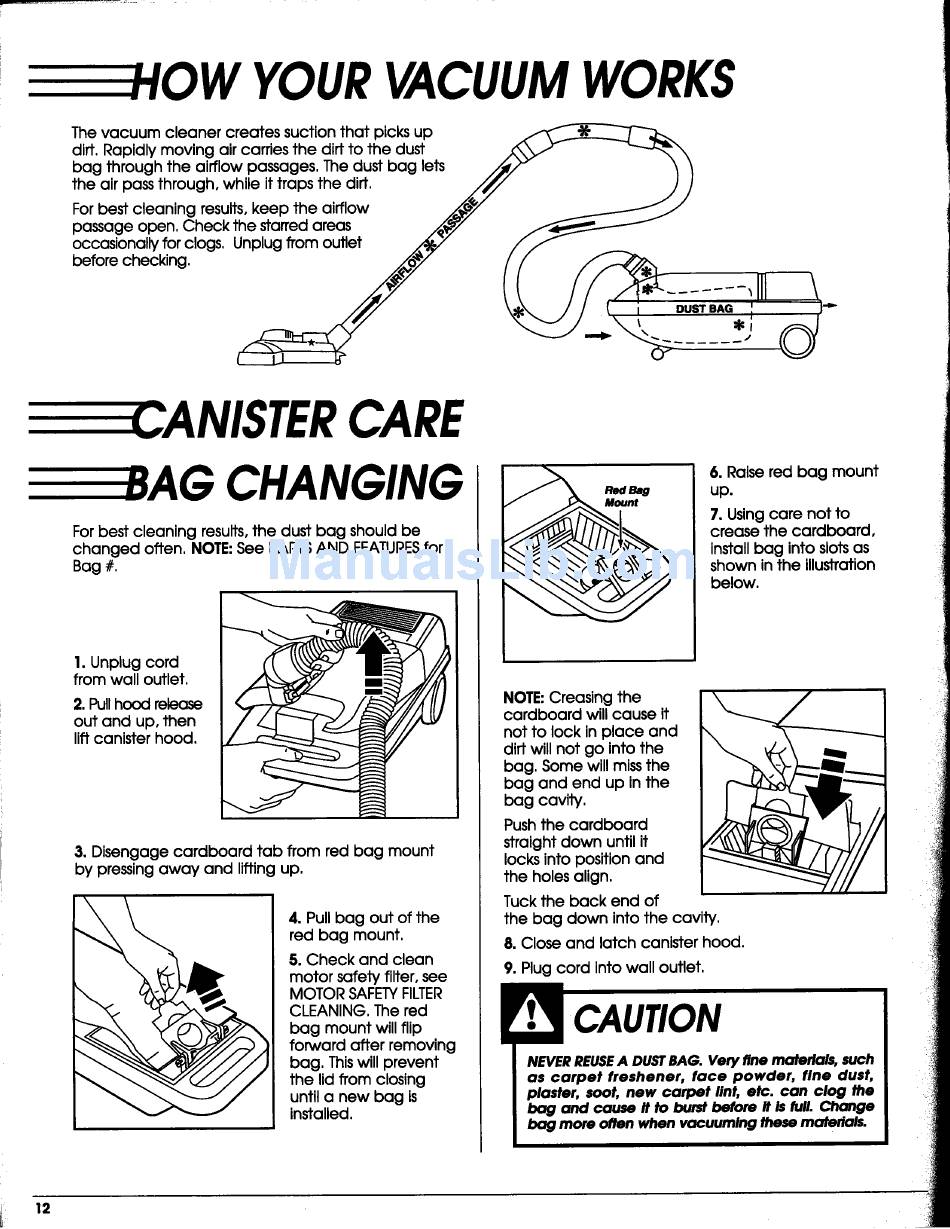

YOURVACUUMWORKS
The vacuum cleaner creates suction that picks up
diff, Rapidly moving air carries the dirt to the dust
bag through the airflow passages. The dust bag lets
the air pass through, while it traps the diff.
For best cleaning results, keep the airflow
passage open. Check the starred areas
occasionally for clogs, Unplug from outlet
before checking.
==_-CANISTERCARE
CHANGING
For best cleaning results, the dust bag should be
changed often, NOTE: See PARTSAND FEATURES for
Bag #,
1. Unplug cord
from wall outlet.
2. Pull hood release
out and up. then
lift canister hood.
3. Disengage cardboard tab from red bag mount
by pressing away and lifting up.
4. Pull bag out of the
red bag mount,
5.Check and clean
motor safety filter, see
MOTOR SAFETYFILTER
CLEANING, The red
bag mount will flip
forward after removing
bag, This will prevent
the lid from closing
until a new bag is
installed.
6. Raise red bag mount
up.
7. Using care not to
crease the cardboard,
install bag into slotsas
shown in the illustration
below.
NOTE Creasing the
cardboard will cause it
not to lock in place and
dirt will not go into the
bag, Some will miss the
bag and end up in the
bag cavity.
Push the cardboard
straight d own until i t
locks intoposition and
the holesalign.
Tuck the back end of
the bag down intothe cavity,
8.Close and latchcanlster hood.
9. Plug cord into wall outlet,
NEVER REUSEA DUST BAG. Very fine materials, such
as carpet freshener, face powder, fine dust,
plaster, soot, new carpet lint, etc. can clog the
bag and cause it to burst before it is full. Change
bag more often when vacuuming these materials.
12
