Expansion Card
Dell™ OptiPlex™ 580 Service Manual—Small Form Factor
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

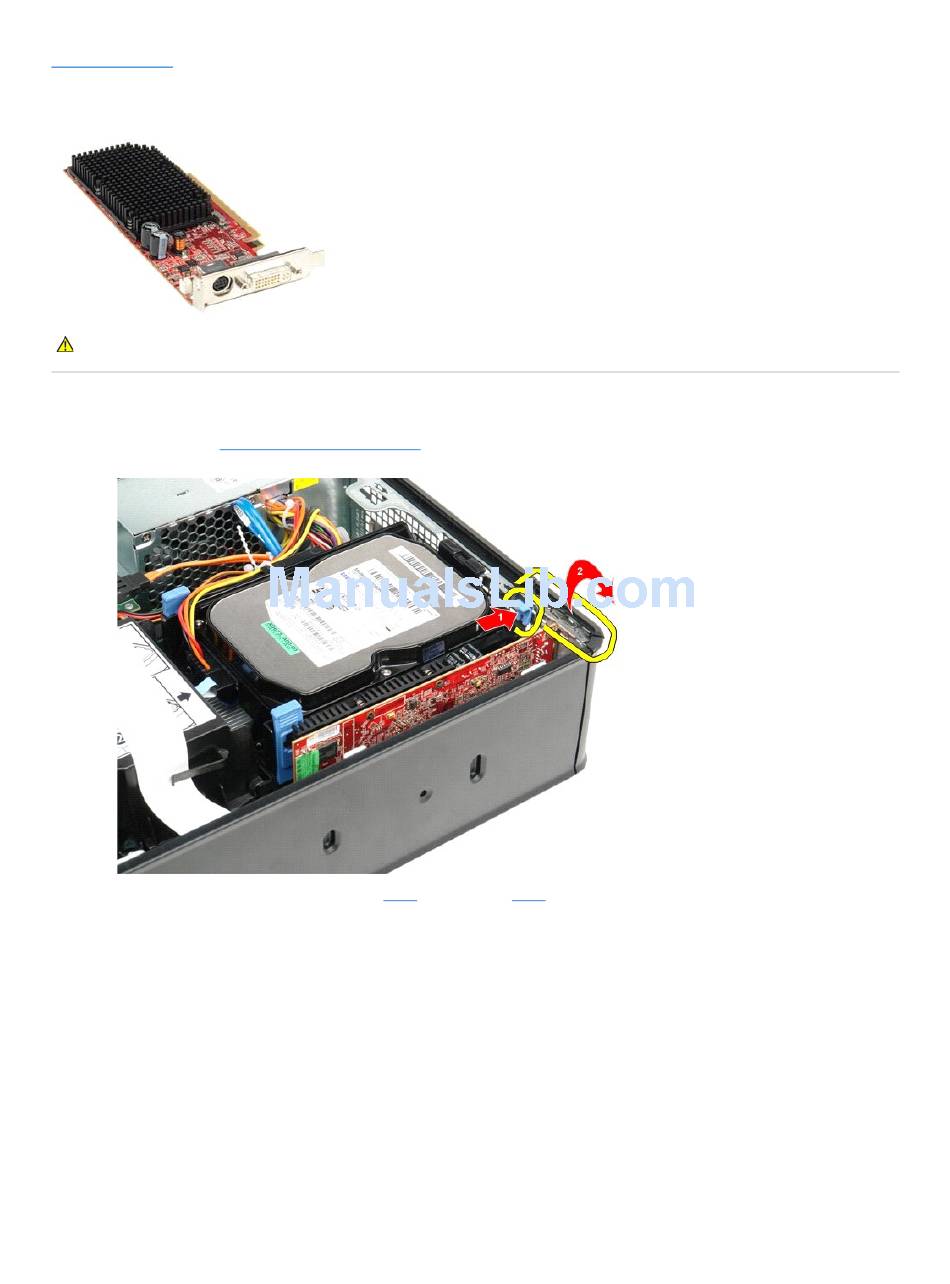

Removing an Expansion Card

1. Follow the procedures in Before Working Inside Your
2. Push the release tab on the card retention latch from the inside, then pivot the latch open.
3. If you are removing a PCI-Express x16 video card go to
4. Press the securing tab to unlock the PCI-Express x16 video card from its connector.
Computer.
step 4, otherwise go to step 5.
