Summary of Contents for Clarity C4230

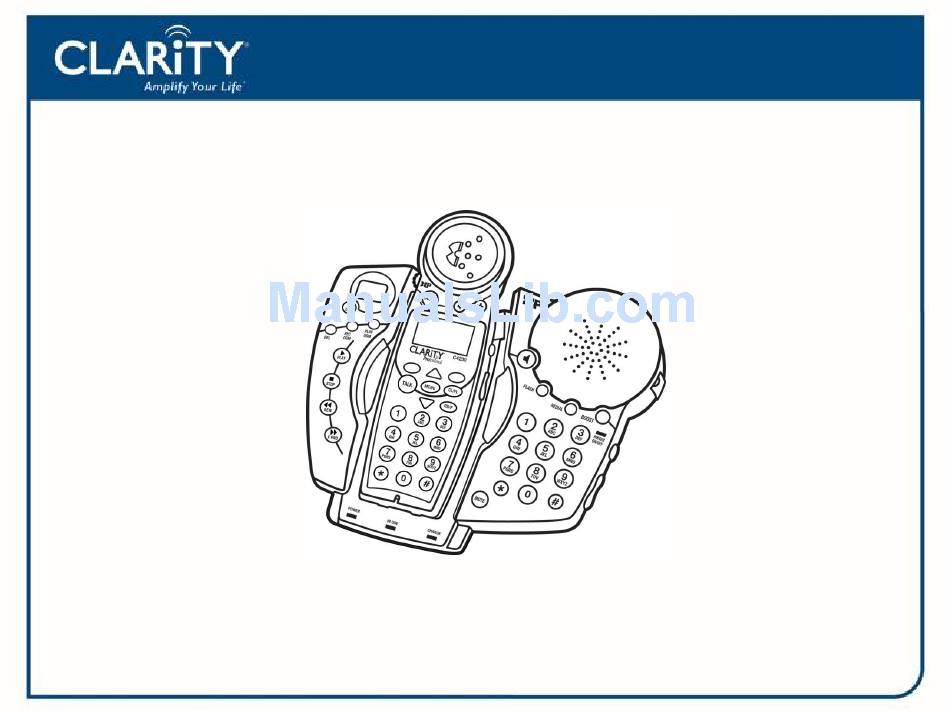

- Page 1 C4230...
- Page 2 C4230 The C4230 is a 5.8 GHz cordless amplified phone is perfect for those with a moderate-to-severe hearing loss by amplifying incoming sound up to 50dB/124dBSPL. The C4230 offers many features including a speakerphone and a digital answering machine. For a full listing of instructions please see the C4230 user guide.
- Page 3 C4230 Features • DCP ™ with tone control • Amplifies up to 50 dB • 5.8 GHz w/ intercom • Speakerphone in handset and base • Digital answering machine • Call Waiting CID • Multi handset capability • Lamp flasher and bed shaker ports •...
- Page 4 C4230 Base Design Visual Ringers Flash to notify the user that the phone is ringing. The visual ringer is also used as part of the design to emphasize Clarity’s technology by drawing attention to the earpiece speaker. The “Talk” and “Speakerphone”...
- Page 5 C4230 Handset Design Earpiece Shape The earpiece is shaped specifically to cup the user’s ear, accomplishing a “custom fit” experience. Not only comfortable, but functional. The “cup” forms a sealed chamber around the ear for better sound. This enables the...
- Page 6 C4230 Parts Checklist...
- Page 7 C4230 Installation 1. Connect one end of the phone cord into the C4230 base and the other end into the telephone wall jack. 2. Connect the AC adapter to the back of the base and a 120V wall outlet.
- Page 8 C4230 Installation Battery 1. Open the battery compartment cover 2. Insert the battery where the (+) and (-) touch the metal springs inside the battery compartment. 3. Close the battery compartment cover 4. Place the handset in base for battery to charge.
- Page 9 C4230 Handset Features TALK: To make a call Press the TALK button or predial number and press Talk. Volume Control: The dial controls the volume levels of the handset, headset or neck loop and ringer volumes. Boost: When pressed, an extra level of amplification is added over the entire range of volume.
- Page 10 C4230 Handset Features Soft Keys: Press the soft key to select a menu item displayed just above the key. Arrow Buttons: Press up or down Arrows to navigate through the menus. Help Key: Press Help Key Button to dial preprogrammed number.
- Page 11 C4230 Handset Features Tone: Press to select the audio tone for the handset. Boost must be ON to activate tone selection. Intercom: Press to call Base or other handset on system. Headset Port: A 2.5 mm headset can be used.
- Page 12 C4230 Handset Features Ringer ON/OFF: Switch to turn Handset Ringer ON or OFF. Neck loop Port: A 3.5mm neck loop can be used.
- Page 13 C4230 Base Features Speaker: Press to activate base speaker phone. Flash: Press to receive an incoming call while on a call. Redial: Press to redial the last number called. Boost: Press to add an extra level of amplification over the entire range of volume control.
- Page 14 C4230 Base Ringer Style: Press to adjust the style of ring. Mute button: Press to turn OFF speaker phone microphone. Page: Press to page handset. Lamp Flasher port: Port for optional C2210 Lamp Flasher Notification Accessory. Ringer ON/OFF LED: Illuminates when Ringer is ON.
- Page 15 C4230 Base Answer Machine Answering Machine Display: Displays number of messages. OGM/Play: Press to Play Outgoing Message. OGM/REC: Press to Record Outgoing Message.
- Page 16 C4230 How to How to Make and Receive a Call HANDSET 1. To answer a call, press TALK on the handset. 2. When placing a call press TALK and dial number or pre-dial number and press TALK. 3. After completing a call press TALK again and return handset to base unit.
- Page 17 C4230 Audio Tone Audio Tone Switching Audio Tones will change how the telephone conversation sounds.
- Page 18 C4230 Audio Tone Recommendations Audio Tone 1 Amplification Type: Bass-Low General Recommendations • User has Noise Induced Hearing Loss • User has Mild to Moderate Hearing Loss • User has Mild to Moderate Hearing Loss at Low Frequencies • User has Moderate to Severe Hearing...
- Page 19 C4230 Audio Tone Recommendations Audio Tone 2 Amplification Type: Flat Frequency Amplification General Recommendations • User listens while wearing Digital Hearing Aids • User has Moderate to Severe Hearing Loss • User has Moderate to Severe Hearing Loss at High Frequencies...
- Page 20 C4230 Audio Tone Recommendations Audio Tone 3 Amplification Type: Clarity Power General Recommendations • User listens while wearing a digital hearing aid • User has Mild to Moderate Hearing Loss at some High Frequency • User has Moderate to Severe Hearing Loss •...
- Page 21 C4230 Audio Tone Recommendations Audio Tone 4 Amplification Type: Multiband Compression - Low General Recommendations • User listens while wearing Analog Hearing Aids • User has difficulty understanding speech on telephone • User has Mild to Moderate Hearing Loss at Significant High Frequencies •...
- Page 22 C4230 Answer Machine Access from Handset Access Answering Machine from Handset 1. Select Messages from the Main Menu Screen. 2. The sub-menu will be displayed. Next, press the (soft key) Select to activate each of the following functions: Review, Play/Stop, Skip, Answr ON/OFF, Memo, Repeat Menu, Erase.
- Page 23 C4230 Answer Machine Playback Speed Slowdown Message Playback Speed 1. Select Playback Speed from the submenu. 2. Next, scroll and select the desired speed to playback messages. Choose on of the following: Normal, Slow or Slowest. Press the (Soft Key) Save.
- Page 24 C4230HS Additional Handset Registering the C4230HS Place the C4230HS into the main unit until the screen displays: “Handset Registered”. After registering the C4230HS, the handset will automatically be assigned a handset number.
- Page 25 C4230 Technical Specifications General Model Number: C4230 Frequency: 5.8 GHz Amplification: 50 dB Headset Unit Dimensions: (L x W x H) 7.25 x 2 x 1.25 inches Weight: 0.05 lb Base Dimensions: (L x W x H) 7.8 x 5.25 x 5.75 inches Handset and Base Dimensions: (L x W x H) 7.80 x 5.25 x 5.75...
- Page 26 C4230 Technical Specifications Additional Handsets Clarity Part number: C4230HS The C4230 will support a total of three (3) additional handsets. Battery Information: Battery Type: Ni-MH AAA 800 mAh 3.6 V Battery Life Talk Time: 3-4 Hours Battery Life Standby: 6 days...
