Summary of Contents for Sony Exmor HXC-D70H

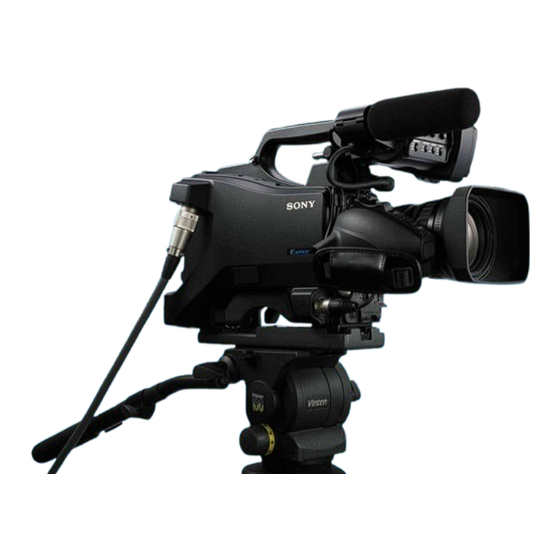

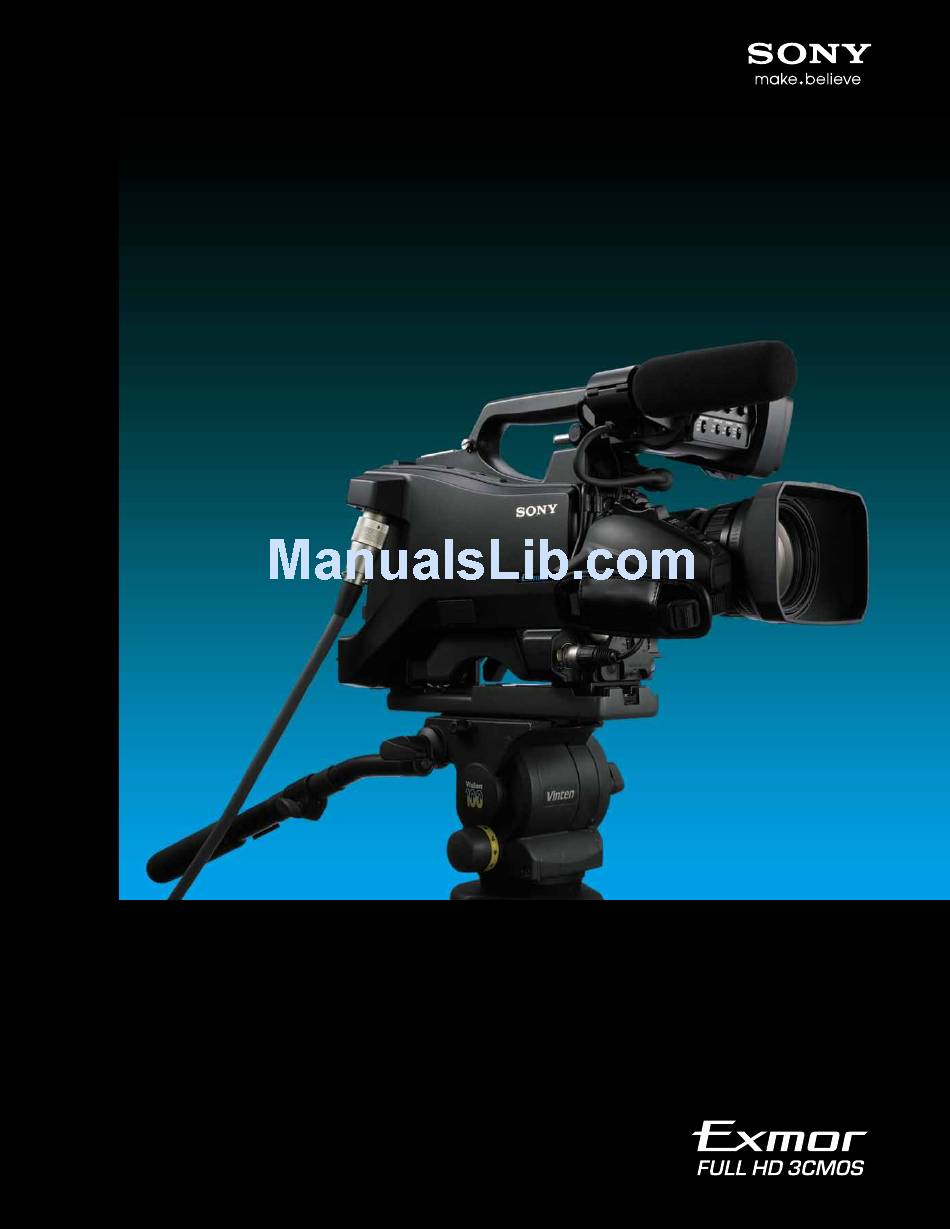

- Page 1 HD/SD System Camera HXC-D70...
- Page 2 Opening a New World of HD Production Sony introduces an ideal solution for HD/SD small studio operations with the HXC-D70 Full HD System Camera, HXCU-D70 Camera Control Unit (CCU), and DXF-C50WA 5-inch Color LCD Viewfinder. The newly developed HXC-D70 is a high-performance camera which inherits field-proven operability from the highly regarded DXC-D Series of system cameras.
-
Page 3: System Versatility
Knee Saturation OFF Knee Saturation ON Simulated images System Versatility Sony's BP-L Series battery can also be directly The HXC-D70 can be remotely controlled from the attached to allow stand-alone operation. HXCU-D70 Camera Control Unit using a standard multi- core cable. - Page 4 HXC-D70 Two types of viewfinder interface Three accessory shoes Various camera accessories can be attached. Interface for the DXF Series such as the DXF-51, DXF-C50WA, and 3.5-inch color LCD viewfinder (supplied with the HXC-D70K and HXC-D70L). 3.5-inch color LCD viewfinder (supplied with the HXC-D70K and HXC-D70L). 3.5-inch color LCD viewfinder (supplied with the HXC-D70K and HXC-D70L).
- Page 5 Wide viewable range in action Sony’s standard shoe fits a battery and other accessories Wide range of right-side vision through this area enables Direct-mounted HD/SD the camera operator to move around with confidence while the camera operator to move around with confidence while...
- Page 6 Interface of HXC-D70 and HXCU-D70 Multi-core Digital To CCU CCZ-A (26-pin multi-core cable) VF I/F SDI OUTPUT HD / SD w/ Rec-trigger CBK-VF01 HD-SDI INPUT TEST Output Composite Video Composite Video output PROMPTER DXF-C50WA / GENLOCK or Reference signal input DXF type Analog VF I/F REMOTE...
-
Page 7: Optional Accessories
Variety of supplied accessories package HXC-D70H HXC-D70L HXC-D70K • Camera Main Unit • Camera Main Unit • Camera Main Unit • Supplied Viewfinder • Supplied Viewfinder • Microphone • Microphone • Auto Focus Lens Optional Accessories DXF-C50WA DXF-51 VFH-570 CBK-VF01 5-inch* LCD Color Viewfinder 5.0-inch*... -
Page 8: Specifications
Environmental Management System certification. The values for weight and dimension are approximate. Sony Electronics Inc. Sony, the Sony make.believe logo, and Exmor are trademarks of Sony. 1 Sony Drive All other trademarks are the property of their respective owners. Park Ridge, NJ 07656 sony.com/professional...
