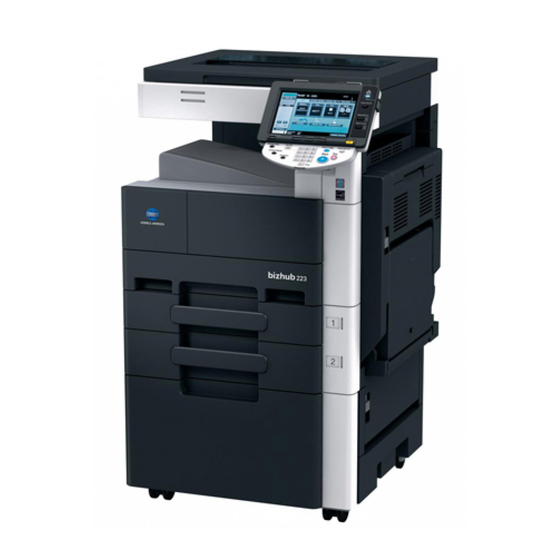

Konica Minolta bizhub 223 Assembly Manual

Step 1: Base Unit
4 23/363/283/223
Digital Printer/Copier/Scanner/Fax
(Includes PS, PCL & XPS Controller, 2 GB Standard
Memory, Duplex Unit, USB Interfaces for Scan-to-USB
Thumb Drive/Print-from-USB Thumb Drive, USB Local
Printing, Optional Authentication Device Connection,
Service USB Firmware Updates
Step 2: Document Handling Options
OC-509 Original Cover
D F-621 Reversing Automatic Document Feeder
(Standard on bizhub 423/363)
Step 3: Paper Supply/Cabinet Options
Select one of the following:
P C-409 Large Capacity Cassette
(2,500 sheets - Letter crosswise only)
P C-208 2-way Paper Feed Cassette
(Two 500-sheet Universal Cassettes)
P C-109 Paper Feed Cassette
(One 500-sheet Universal Cassette; Includes 1 storage drawer)
DK-508 Copy Desk (Storage Drawer Only)
Step 4: Output Options
None
JS-505 Job Separator Tray
F S-527 Floor Finisher
J S-603 Job Separator Tray
(3rd Output Tray for FS-527)
PK-517 Punch Kit
SD-509 Saddle Stitcher Kit
F S-529 Inner Finisher
Step 5: Analog Fax Options
F K-508 Fax Kit
MK-726 Mount Kit
S P-501 Stamp Unit
(for DF-621)
Spare TX Marker Stamp 2
SD-509
Saddle
Stitcher Kit
DK-508
PC-109
Copy Desk
Paper Feed Cassette
500
Sheets
Storage Only Storage

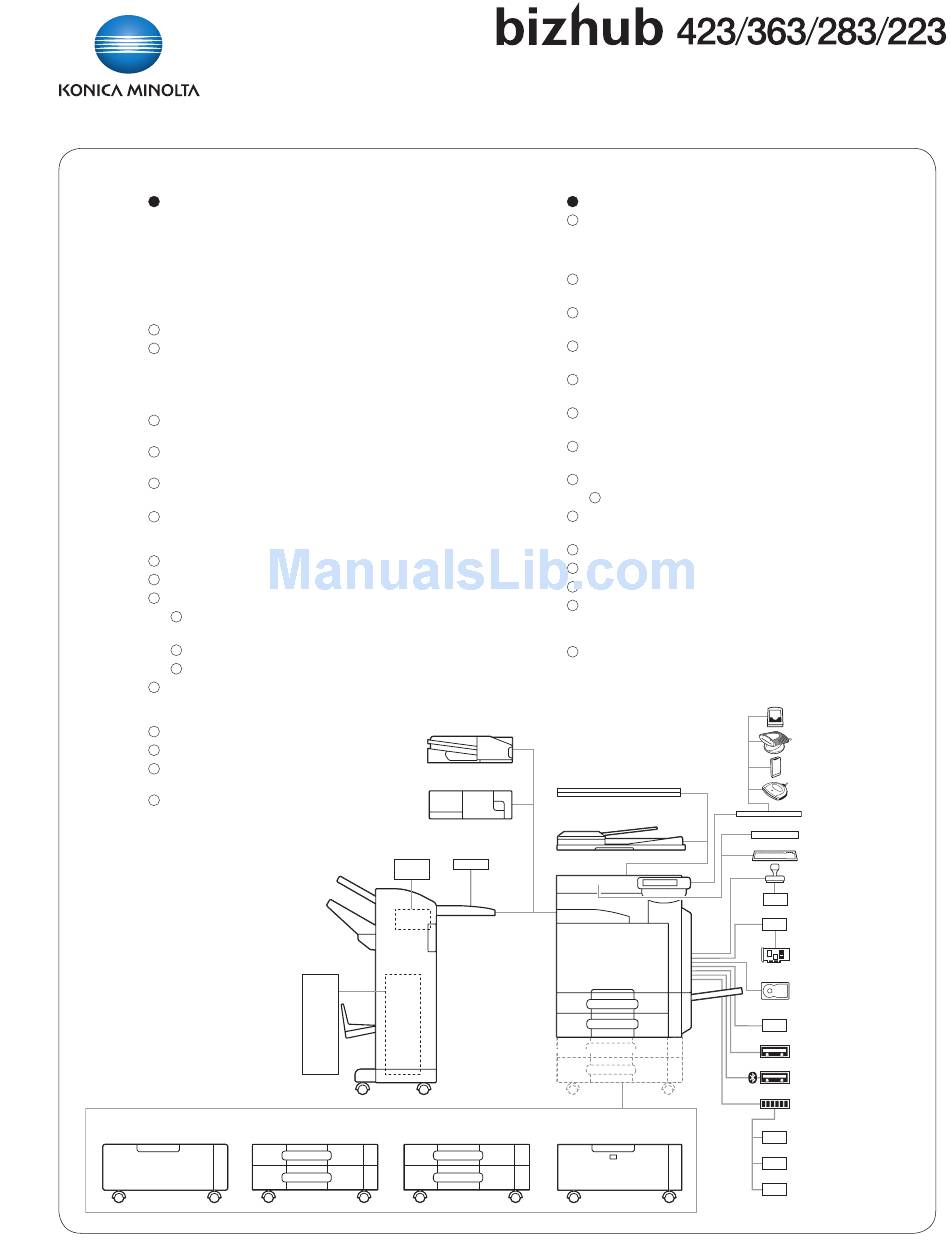

How to build a bizhub 423/363/283/223 System (from start to finish)
(Select one)
(Required)
(50-sheet stapling)
(for FS-527)
(for FS-527)
(50-sheet stapling)
JS-505
Job Separator
Tray
FS-529
Inner Finisher
JS-603 Job
PK-517
Separator Tray
Punch Unit (3rd Output Tray)
FS-527
Floor
Finisher
PC-208
2-way Paper Feed Cassette
500
Sheets
500
Sheets
Step 6: Controller Option
Standard Controller
H D-516 250 GB Hard Disk Drive
(Standard on bizhub 423/363)
Step 7: Additional Options
A U-102 Biometric Authentication Unit
(Requires WT-506)
A U-201H HID Proximity Card Authentication Unit
(WT-506 recommended)
A U-202H HID iClass Card Authentication Unit
(Requires WT-506)
A U-211P CAC/PIV Card Authentication Unit
(Requires WT-506)
E K-604 USB Connection Kit
(For External Keyboard)
E K-605 USB Connection Kit
(For External Keyboard and Bluetooth Printing)
E xternal USB Keyboard
K H-101 Keyboard Holder
L K-101 v2 License Kit
and Scan-to-SharePoint)
L K-102 License Kit
L K-105 License Kit
SC-507 Copy Guard Kit
U K-203 Memory Upgrade Kit
LK-101 v2, LK-102, LK-105 and PageScope My Panel;
only one memory upgrade required on MFP)
WT-506 Working Table
OC-509 Original Cover
DF-621 Reversing
Auto Document Feeder
500
Sheets
500
Sheets
PC-409
Large Capacity Cassette
2,500
Sheets
5/2010
(PCL/PS/XPS)
(Requires KH-101)
(Web Browser, Image Panel
(Enhanced PDF Encryption)
(Searchable PDF)
(Required for
AU-102 Biometric
Authentication Unit
AU-201H HID Proximity
Card Authentication Unit
AU-202H HID iClass
Card Authentication Unit
AU-211P CAC/PIV
Card Authentication Unit
WT-506 Working Table
KH-101 Keyboard Holder
External USB Keyboard
SP-501 Stamp Unit
Spare TX Marker
Stamp 2
MK-726 Mount Kit Board
FK-508 Fax Kit
HD-516 250 GB
Hard Disk Drive
SC-507
Copy Guard Kit
EK-604 USB
Connection Kit
EK-605 USB Connection Kit
(Bluetooth Printing)
UK-203 Memory
Upgrade Kit
LK-101 v2
License Kit
LK-102
License Kit
LK-105
License Kit
