FujiFilm 3500 Instruction Manual

FujiFilm 3500 Instruction Manual

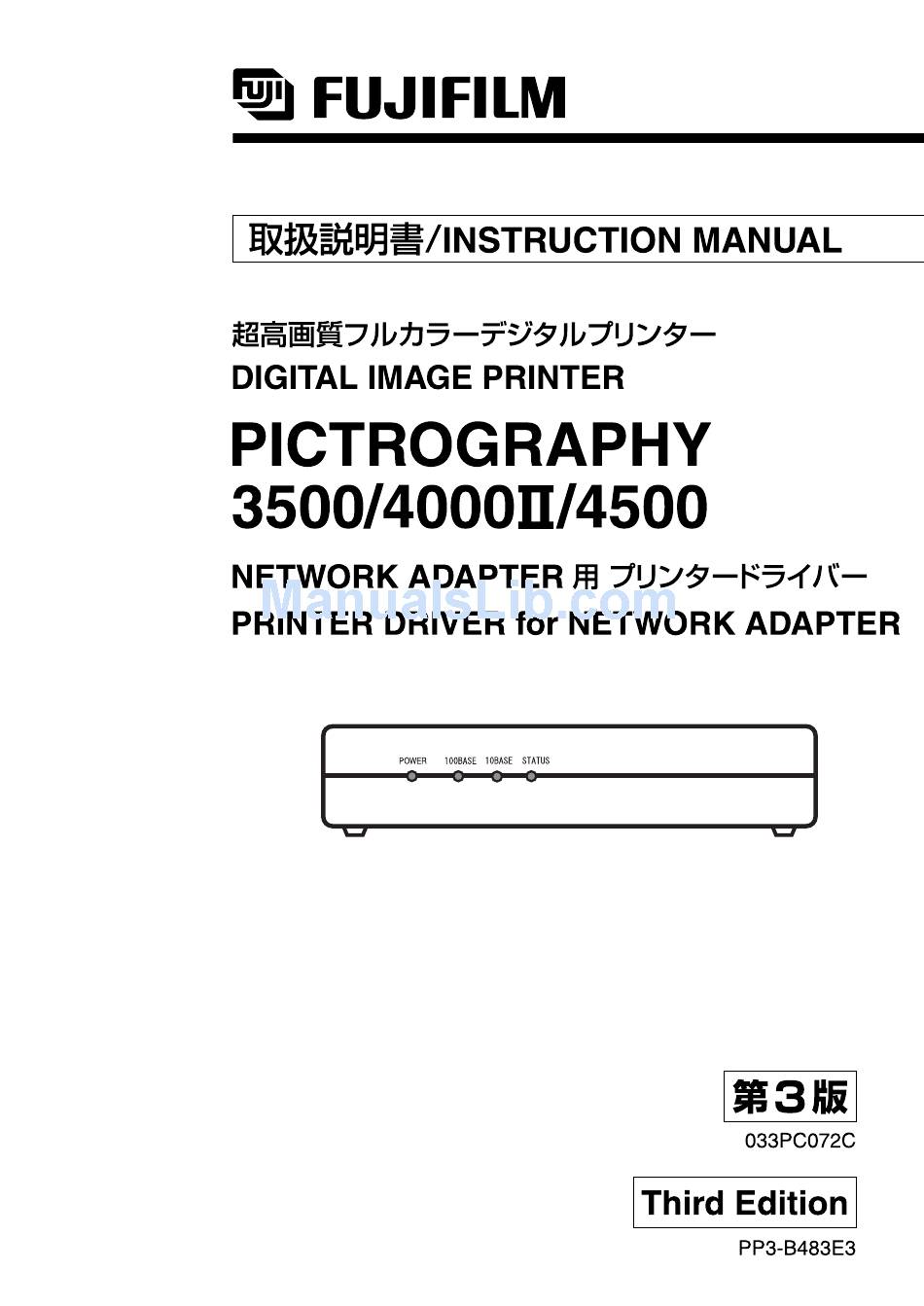

Fujifilm instruction manual digital image printer pictrography 3500, 40002, 4500
Hide thumbs Also See for 3500:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for FujiFilm 3500

Summary of Contents for FujiFilm 3500

  • Page 2 The copyright for this software is owned by Fuji Photo Film Co., Ltd. (“FUJI”). 2. Conditions of Use You are licensed to use this software on only one PICTROGRAPHY 3500/40002 2 2 2 2 /4500 device. 3. Prohibitions You may not (1) copy, modify or adapt any or all parts of this software; (2) provide this software to a third party in the from of a copy, loan or gift;...
  • Page 3 ● This manual gives procedures for installing and using the PICTROGRAPHY 3500/40002 2 2 2 2 /4500 printer driver, as well as several precautions. ● This software provides a means of making prints with the PICTROGRAPHY 3500/40002 2 2 2 2 /4500 that is connected to a network via the PICTROGRAPHY network adapter.

  • Page 4: Table Of Contents

    1. PRINTER DRIVER ... 4 Outline ... 4 Features ... 4 Operating Environment ... 4 2. PRINTER DRIVER PRELIMINARIES ... 5 Windows ... 5 2.1.1 Network setup ... 5 Macintosh ... 5 2.2.1 Setting up AppleTalk (to enable network printing) ... 5 3.
  • Page 5 4. USAGE OF PRINTER DRIVER ... 33 Windows ... 33 4.1.1 Work flow through printing ... 33 4.1.2 Print setup and printing ... 33 4.1.3 Message Monitor ... 35 4.1.4 Spooler ... 35 4.1.5 Printer folder ... 36 4.1.5.1 Windows 95/98 ... 36 4.1.5.2 Windows NT 4.0 ...

  • Page 6: Printer Driver

    : Pentium 133 MHz or newer • Memory : 3500; 64MB or more (4000 /4500; 256MB or more) • HDD : 3500; 96MB or more of available space (4000 /4500; 192MB or more) • A computer on which TCP/IP is usable. [Macintosh] •...

  • Page 7: Printer Driver Preliminaries

    Click [Network] in [Control Panel] to open the [Network] window, click the [File and Print Sharing...] button, check the [I want to be able to allow others to print to my printer(s)] option, and click the [OK] button. (2) Install the same protocol (e.g., TCP/IP) on a server computer and client computer.

  • Page 8: Installation

    3.1.1 For local printing: To enable local printing, install the printer driver as follows. 1. Insert the [PICTROGRAPHY 3500/40002 2 2 2 2 /4500 Network Adapter Printer Driver] CD-ROM into the PC. If the [USER SOFTWARE] window automatically opens, click [EXIT] to close it.
  • Page 9 9. Click to select the installing PICTROGRAPHY (3500, 4000 4500) in the [Printers:] field and then click the [Next] button. The following is displayed when the file is copied: 10. Click the [Add Port] button. The following dialog box then opens: 11.

  • Page 10: For Network Printing

    2. Select [Setting] > [Printer] from the [Start] menu. The [Printers] folder window appears. 3. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon and click [Sharing...] on the [File] menu. 4. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed.
  • Page 11 7. When the [Browse for Printer] opens to indicate the names of the networked computers, double-click the name of the server computer to open it, and then select a share name for the printer. Once you have selected the sharing name for the printer, click the [OK] button.

  • Page 12: Uninstall

    3.2.1 For local printing: To enable local printing, install the printer driver as follows. 1. Insert the [PICTROGRAPHY 3500/40002 2 2 2 2 /4500 Network Adapter Printer Driver] CD-ROM into the PC. If the [USER SOFTWARE] window automatically opens, click [EXIT] to close it.
  • Page 13 (* if your CD-ROM drive is E: drive) 8. Click the [OK] button. The following appears: 9. Click to select the installing PICTROGRAPHY (3500, 4000 4500) in the [Printers:] field and then click the [Next] button. The following is displayed when the file is copied: 10.

  • Page 14: For Network Printing

    2. Select [Setting] > [Printer] from the [Start] menu. The [Printers] folder window appears. 3. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon and click [Sharing...] on the [File] menu. 4. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed.
  • Page 15 7. When the [Browse for Printer] opens to indicate the names of the networked computers, double-click the name of the server computer to open it, and then select a share name for the printer. Once you have selected the Share Name for the printer, click the [OK] button.

  • Page 16: Uninstall

    1. Select [Setting] > [Printer] from the [Start] menu. The [Printers] folder window is displayed. 2. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, then click [Delete] from the [File] menu. You will be prompted to confirm the delete. Click the [Yes] button.
  • Page 17 (* if your CD-ROM drive is E: drive) Click the [OK] button. The following appears. 8. Verify that [FUJIFILM PICTRO TCP Port] is displayed in the [Available Printer Ports:] field, and then click the [New Port...] button. After a file copy operation is performed, the following dialog box opens: 9.
  • Page 18 The following appears. 14. Click the [OK] button. The following appears: 15. Click to select the installing PICTROGRAPHY (3500, 4000 4500) in the [Printers:] field and then click the [Next] button. The following appears: 16. Specify a printer name in the field currently displaying the name of the default printer.

  • Page 19: For Network Printing

    [Yes] button. Otherwise, click the [No] button and perform troubleshooting as instructed on- screen. 20. If installation of the printer driver is complete, the icon for the new printer will appear in the [Printers] folder window, as shown below: 21.

  • Page 20: Uninstall

    4. Select [Network printer server] and click the [Next] button. The [Connect to Printer] dialog box appears: 5. Enter a network path in the [Printer:] field and specify the server and its share name. If, for instance, the server computer name is "SERVER"...

  • Page 21: Windows 2000

    3.4 Windows 2000 Note the following when installing the printer driver in Windows 2000: You must be logged on as a user assigned to the Administrators’ Group. In the [File signature verification] field in the [Driver Signing Option] dialog box, check to make sure that either [Ignore-Install all file, regardless of file signature] or [Warn-Display a message before installing an unsigned file] is specified.
  • Page 22 3. INSTALLATION 7. Confirm that [FUJIFILM PICTRO TCP Port] appears in the [Available Port types;] field, and then click the [New Port] button. After a file copy operation is performed, the following dialog box appears: 8. Specify the port name as directed below: Enter a numerical value between 1 and 99 to specify the port name.
  • Page 23 (* if your CD-ROM drive is E: drive) 18. Click the [OK] button. The following appears. 19. Click to select the installing PICTROGRAPHY (3500, 4000 4500) in the [Printers:] field and then click the [Next] button. The following appears. 20. Specify a printer name in the field where the name of the default printer is currently displayed.

  • Page 24: For Network Printing

    This displays the [Printers] folder. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon and click [Properties] from the [File] menu. This displays the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box. (4) Click the [Detailed Setting] tab.

  • Page 25: Installing To The Server

    3.4.2.1 Installing to the Server 1. When running Windows 2000 on the server computer, install the printer driver to the server, by doing Steps 1. through 20. in "3.4.1 For local printing." The following appears. Then continue the installation by following the procedures described below.
  • Page 26 5. Select [Network Printer], and then click the [Next] button. The [Locate Your Printer] dialog box is displayed. 6. Select [Type the printer name, or click Next to browse for a printer]. Enter a network path in the [Name] field, or click the [Next] button without entering anything.

  • Page 27: Uninstall

    Click to select [Setting] > [Printer] from the [Start] menu. The [Printers] folder window is displayed. 2. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, and then click [Delete] from the [File] menu. You will be prompted to confirm the deletion. Click the [Yes] button.
  • Page 28 (* if your CD-ROM drive is E: drive) Click the [OK] button. The following appears. 7. Confirm that [FUJIFILM PICTRO TCP Port] appears in the [Available Port types;] field, and then click the [New Port] button. After a file copy operation is performed, the following dialog box appears: 8.
  • Page 29 12. Now install the printer. Click the [Add a printer] icon in the [Printers and Faxes] folder window. The [Add Printer Wizard] dialog box is displayed. 13. Click the [Next] button. The following appears. 14. Select [Local printer attached to this computer] and uncheck [Automatically detect and install my Plug and Play printer].
  • Page 30 3. INSTALLATION 18. Click the [OK] button. The following appears. 19. Click to select the installing PICTROGRAPHY (3500, 4000 4500) in the [Printers:] field and then click the [Next] button. The following appears. 20. Specify a printer name in the field where the name of the default printer is currently displayed.

  • Page 31: For Network Printing

    (3) Click to select [Printers and Faxes] from the [Start] menu. This displays the [Printers and Faxes] folder. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon and then click [Properties] in the [File] menu. This displays the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box.

  • Page 32: Installing To A Client Computer

    3. INSTALLATION 3. Enter the location of the printer in the [Location] field and the description of the printer in the [Comment] field, or click the [Next] button without entering anything. 4. Continue installation of the printer driver according to the procedure described in Step 22.

  • Page 33: Uninstall

    Click to select [Printers and Faxes] from the [Start] menu. The [Printers and Faxes] folder window is displayed. 2. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, and then click [Delete] from the [File] menu.

  • Page 34: Macintosh

    3.6 Macintosh 3.6.1 Installation Install the printer driver by performing the following procedure: 1. Insert the [PICTROGRAPHY 3500/40002 2 2 2 2 / 4500 Network Adapter Printer Driver] CD-ROM into the PC. 2. Sequentially open the [Driver]>[PG3500]>[Mac]> [English] [Driver]>[PG4K2_4500]>[Mac]> [English] folders on the CD-ROM.

  • Page 35: Usage Of Printer Driver

    4. USAGE OF PRINTER DRIVER 2. Selecting a paper size After choosing the printer name in step 1, click the [Properties] button. This opens the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties]dialog box. for CE type for UC type •...
  • Page 36 • Image process Select a color-matching function. This color-matching func- tion refers to the one provided with the PICTROGRAPHY 3500/40002 2 2 2 2 /4500, which provides the following options: ON1 (CG): Performs color conversions suitable for print- ing high-chroma images, including computer graphics.

  • Page 37: Message Monitor

    2. Canceling printing In the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] window, click the document for which you want to cancel printing. Then select [Cancel Print] from the [Document] menu to cancel printing.

  • Page 38: Printer Folder

    [Printers] folder window. Click the [FUJIFILM PICTRO- GRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, then select [Properties] on the [File] menu. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed. 1. Paper setting Click the [Paper setting] tab on the [FUJIFILM PICTRO- GRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box.

  • Page 39: Windows Nt 4.0

    [Printers] folder window. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, then select [Properties] on the [File] menu. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed. Click the [Paper setting] tab.

  • Page 40: Windows 2000

    [Printers] folder window. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, then select [Properties] on the [File] menu. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed. Click the [Ports] tab.

  • Page 41: Windows Xp

    [Printers] folder window. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, and then click [Properties] in the [File] menu. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed. Click the [Ports] tab.

  • Page 42: Icm

    Click to select [Printers and Faxes] in the [Start] menu. This opens the [Printers and Faxes] folder window. Click the [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP] icon, and then click [Properties] in the [File] menu. The [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties] dialog box is displayed.

  • Page 43: Macintosh

    1. Selecting the printer Select [Chooser] from the Apple menu and click [PG 3500(AT)] (for 3500) or [PG 40002 2 2 2 2 /4500(AT)] (for 4000 The following screen appears: The [Output path selection:] field shows the name of the PICTROGRAPHY printer that is networked via the PICTROGRAPHY network adapter.
  • Page 44 A color-matching function will work that produces results close to that obtained with PICTROGRAPHY3000 color matching function set to “OFF” (for 3500). A color-matching function will work that produces results close to that obtained with PICTROGRAPHY4000 color matching function set to “OFF”...

  • Page 45: Print Monitor

    • ColorSync Check here to use the Mac OS color management function (ColorSync). * The printer driver supports ColorSync version 2.5 or later. The driver is incompatible with earlier versions. * For network printing, the server copy of ColorSync must also be version 2.5 or later.

  • Page 46: Colorsync

    3. Canceling printing Open Print Monitor. Click [Print queue stop] in the [Printer] menu. If a print job is currently in progress, printing is suspended and the print job is moved to the Spool List Display area (lower part of the screen), where it is stored until printed .

  • Page 47: Error Messages

    • Printing is not possible with the presently loaded paper. Printing cannot be executed on the paper size specified. Replace the paper magazine currently loaded in the PICTROGRAPHY 3500/4000 4500 with one containing paper of the correct size, or change the paper size setting.
  • Page 48 Windows 95/98: Check in [Enable bi-directional support for this printer] in the screen displayed when you click the [Spool Setting] button on the [Details] dialog box of [FUJIFILM PICTROGRAPHY3500 (40002 2 2 2 2 or 4500) TCP Properties]. Windows NT 4.0/2000/XP:...

  • Page 49: Restrictions

    Some applications may permit even more copies than the maximum (=50) permitted by the PICTROGRAPHY 3500. If a number greater than 50 is selected, the printer may output only a single copy. The number of print copies may sometimes be specified through an application dialog.

  • Page 50: Macintosh

    The PICTROGRAPHY is a non-PostScript printer. Therefore, if a document having an EPS (Encapsulated PostScript) file linked is printed on the printer, image data of the EPS file will be replaced with a preview image (low-resolution image) in the print.
