GN-1060
with GN-3010
for MC760/MC770/MC780/ES7460/ES7470/ES7480/MPS3537/MPS4242
SET-UP GUIDE
Warnings Points
• The unpacking and setup procedure shall be done by a qualified service technician.
• Be sure to unplug the power cable of the equipment before installing and setting up the product.
• Disconnect the ground wire after unplugging the power cable. In addition, be sure to connect the ground wire
before plugging the power cable.
Cautionary Points
• Install the equipment near an outlet. Be sure to wire the power cable securely so as to unplug it easily and not
to trip over it.
• According to the equipment model, these illustrations may differ.
• The covers of this equipment have been designed so as not to be easily removed. Therefore, when using
tools, be sure not to put your face and hands in the direction in which force will be applied; otherwise this could
result in injury. In addition, pay attention not to deform parts by using too much force.
• When unpacking and setting up the product, be sure to wear gloves to avoid injury.

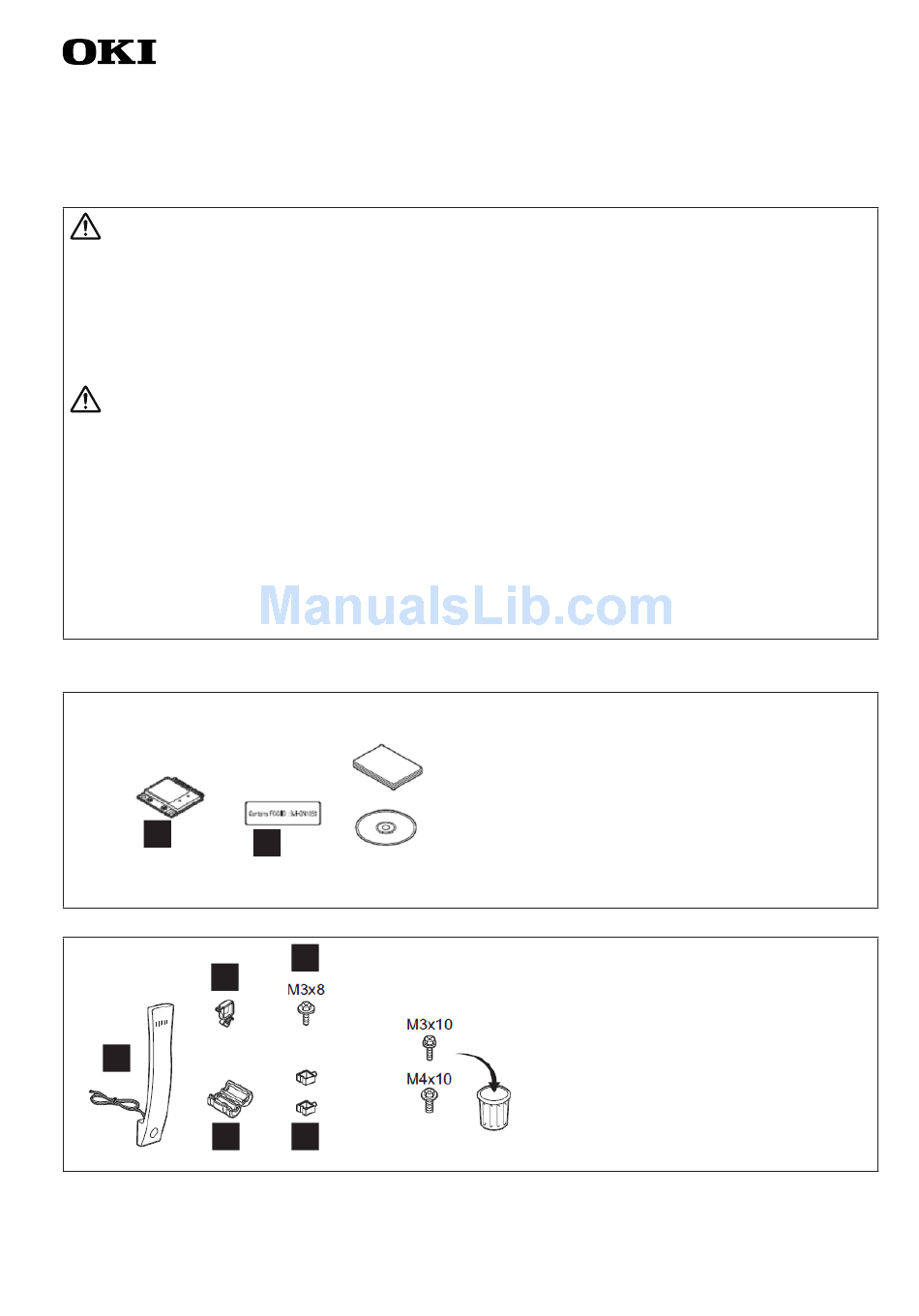

Accessories
„
„
GN-1060
A
GN-3010
E
D
J
B
f
H
1 / 9
GN-1060 with GN-3010
