Page 83
Contents Safety precautions ........................... 83 Getting started Your headset overview ........................... 84 Button functions ............................85 Charging the headset ..........................86 Wearing the headset ..........................91 Using your headset Turning the headset on or off ......................93 Using voice prompts ..........................93 Pairing and connecting the headset ....................
Page 84
Samsung Electronics. Trademarks • SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung Electronics. ® • Bluetooth is a registered trademark of the Bluetooth SIG, Inc.
Please read all Safety precautions before using your headset to ensure safe and proper use. Safety precautions • When using your headset while driving, follow local regulations in the region you are in. • Never disassemble or modify your headset for any reason. Doing this may cause the headset to malfunction or become combustible.

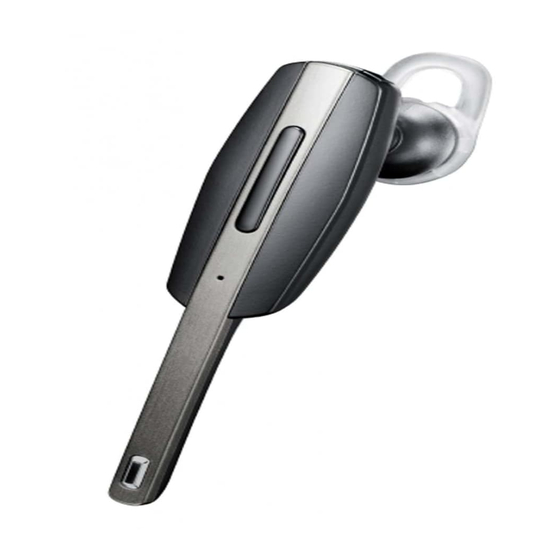

Getting started Your headset overview Charging socket Volume button Talk button Indicator light Noise cancellation Earpiece microphone Language selection button Primary microphone • Make sure you have the following items: travel adapter, portable charger, headset, ear hook, ear pieces and user manual. •...
Button functions Button Function • Press and hold to turn the headset on. • Press and hold for 3 seconds to turn the headset off. • With the headset turned off, press and hold for 3 seconds to enter Pairing mode. Talk •...
To check the battery level, see page 90. Use only Samsung-approved chargers. Unauthorised or Non-Samsung chargers could cause damage to the headset or in extreme circumstances an explosion, it could also invalidate any warranty on the product.
Page 89
Charging the headset with the portable charger Charge the portable charger. When it is fully charged, the indicator light is changed to blue colour. Follow directions in the picture to open the cover of charger.
Page 90
Put your headset in the fully charged portable charger and then turn on the portable charger. When the indicator light on the headset is changed to blue colour, turn off the portable charger.
Page 91
• The portable charger will be discharged when you remain the headset in it without turnnig off the portable charger. • The headset will be charged first and then charge the portable charger when using travel adapter to charge portable charger with headset put in. •...
Checking the battery level To check the battery level, press and hold the Volume down button and the Talk button at the same time. Depending on the battery level, the indicator light flashes 5 times in one of the following colours: Indicator light Battery level Voice prompt...
Wearing the headset Depending on which ear you are going to wear the headset, simply adjust the ear hook accordingly. Left Right You can also use the optional earpiece cushions instead of the ear hook. Remove the earpiece cover and attach the earpiece cushion.
Using your headset This section explains how to turn the headset on or off, pair and connect the headset to the phone, and use various functions. • Activated functions and features may differ depending on the phone type. • Some devices, especially those that are not tested or approved by the Bluetooth Special Interest Group (SIG), may be incompatible with your headset.
Turning the headset on or off To turn the headset on Press and hold the Talk button until the blue indicator light flashes 4 times. To turn the headset off Press and hold the Talk button for 3 second. The indicator light flashes blue and red then turns off.
Page 96
Turning the voice prompt on or off To turn voice prompts on In Pairing mode, press and hold the Volume up button for 3 seconds. You will hear “Voice prompts on”. To enter Pairing mode, see page 96. To turn voice prompts off In Pairing mode, press and hold the Volume down button for 3 seconds.
Page 97
Status Voice prompt When you turn the voice “Voice prompts on” or prompt on or off “Voice prompts off” “Multi-point on” or When you turn Multi-point feature on or off “Multi-point off” When you connect the “Device connected” or headset to the devices “Two devices connected”...
Activate the Bluetooth feature on your phone and search for the headset (see your phone’s user manual). Select the headset (HM7000) from the list of devices found by your phone. If requested, enter the Bluetooth PIN 0000 (4 zeros) to pair and connect the...
Activate the Bluetooth feature on the second Bluetooth phone and search for the headset (see your phone’s user manual). Select the headset (HM7000) from the list of devices found by the second Bluetooth phone. If requested, enter the Bluetooth PIN 0000 (4 zeros) to connect the headset to the second Bluetooth phone.
When connecting the headset to 2 Bluetooth phones, some phones may not be able to connect as a second Bluetooth phone. To turn Multi-point feature on To turn Multi-point feature off In Pairing mode, press and hold the In Pairing mode, press and hold the Volume up button.
Disconnecting the headset Turn off the headset or use the Bluetooth menu on your phone. Reconnecting the headset To reconnect to the paired phone (HFP) • Press the Talk button on the headset or use the Bluetooth menu on your phone. To reconnect to the paired music device (A2DP) •...
Pairing via the Active pairing feature With the Active pairing feature, your headset automatically looks for a Bluetooth device within range and tries to make a connection with it. The phone’s Bluetooth visibility option must be set to on. Place the headset and phone close to each other to avoid pairing with other devices.
Using call functions • Available call functions may differ from phone to phone. • For better sound quality during a call, avoid covering the Noise cancellation microphone. Making a call Redialling the latest number To redial the last number dialed on the primary phone, •...
Answering a call • Press the Talk button to answer a call when you hear incoming call tones. • If you receive calls on both connected devices at the same time you can only answer the call on the primary phone. •...
Page 105
Options available during a call You can use the following functions during a call. Adjusting the volume Press the Volume up or down button to adjust the volume. You will hear a beep when the volume level of the headset reaches it’s lowest or highest level.
Answering a second call • Press the Talk button to end the first call and answer a second call. • Press and hold the Talk button to place the first call on hold and answer a second call. To switch between the current call and the held call, press and hold the Talk button.
Appendix Frequently asked questions Will my headset work Your headset will work with devices that support with laptops, PCs, and your headset’s Bluetooth version and profiles. PDAs? For specifications, see page 108. Why do I hear static Appliances such as cordless phones and wireless or interference while on networking equipment may cause interference, which a call?
Page 108
Can other Bluetooth When you pair your headset to your Bluetooth phone, phone users hear you are creating a private link between only these two my conversation? Bluetooth devices. The wireless Bluetooth technology used in your headset is not easily monitored by third parties because Bluetooth wireless signals are significantly lower in radio frequency power than those produced by a typical mobile phone.
Warranty and parts replacement Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.* If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualified service centre.
Specifications Item Specifications and description Bluetooth version Support profile Headset Profile, Hands-Free Profile, Advanced Audio Distribution Profile Operating range Up to 33 feet (10 metres) Standby time Up to 130 hours* Talk time Up to 3 hours* Play time Up to 3 hours* Charging time Approximately 2 hours (With fully charged portable charger): Approximately 2-3...
Page 111
Printed in China GH68-34974L www.samsung.com CHI. 11/2011. Rev. 1.1...
