Using The FastCheck Monitoring Utility
S.M.A.R.T. Status: Indicates whether attached hard drive implements Self-Monitoring
Analysis & Reporting Technology to predict drive failure
Size: Indicates capacity of individual drive.
Location: Shows physical location of drive. Indicates on which IDE channel (1 or 2),
and whether drive is Master or Slave on cable. This allows user to identify drives
for removal/replacement.
Mapping: Indicates physical parameters of drive (cylinders, heads, sectors)
Timing: Shows selection of drive timing (directly related to burst speed) based on
type of drive and cable used.

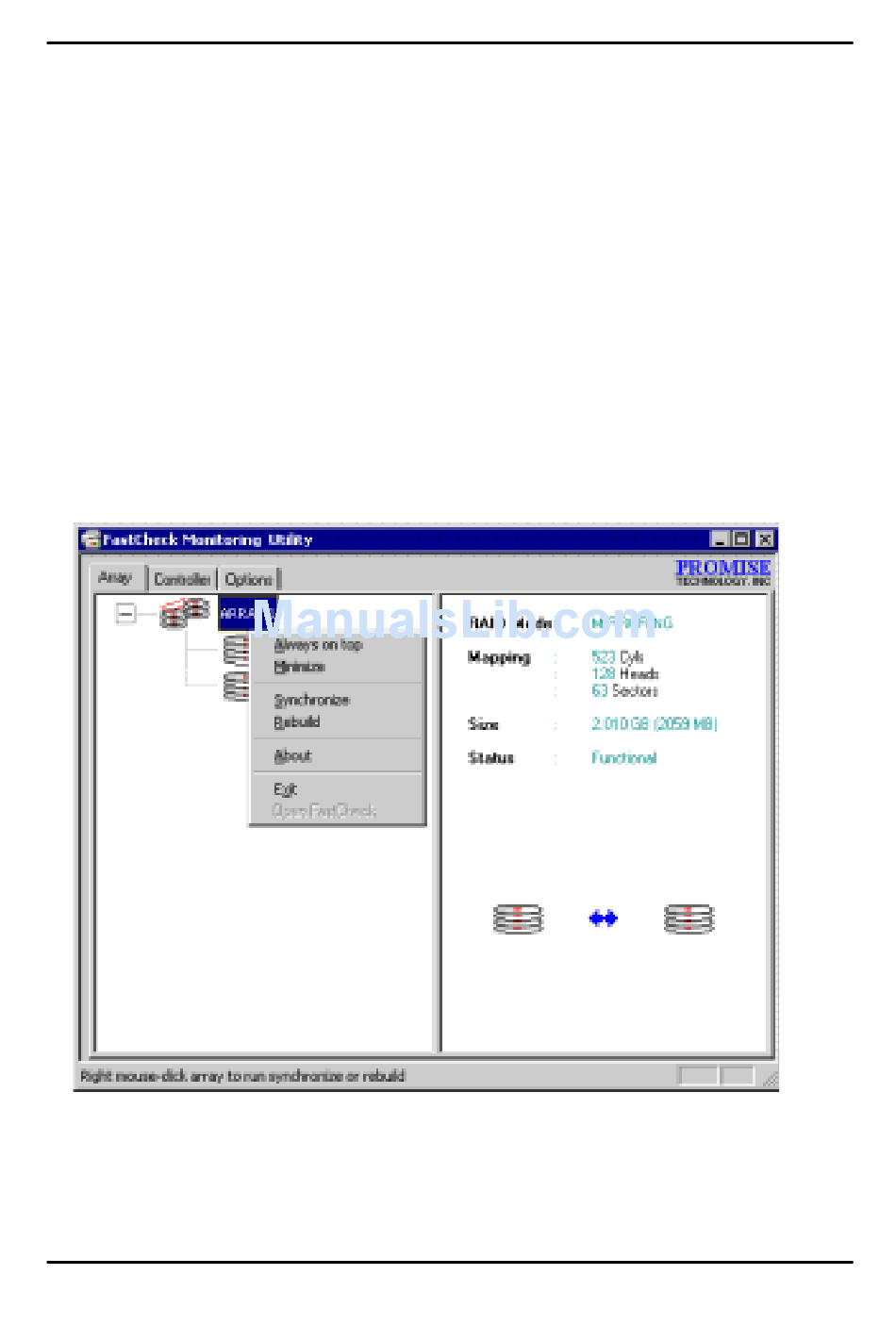

Using Array Pull-down Menu
At the bottom of the Array window, it indicates to right-click on an Array to perform
synchronization or rebuild operations. Right-clicking displays the following pull-down
menu:
From this menu, users may choose to have the Window Always Appear on Top of
applications, Minimize, Synchronize mirrored drives, Rebuild a mirrored array, use
About to check FastCheck version #, or Exit the onscreen window.
3 3
