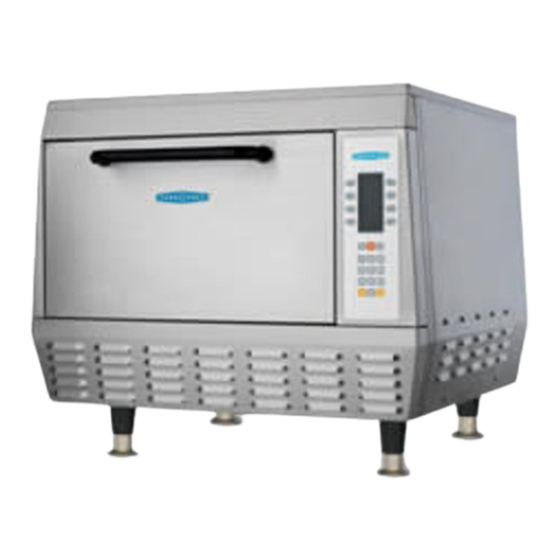

TurboChef TORNADO Quick Manual

Tornado or C3
(Figure 1)
Outer Holes = Tornado
Inner Holes = C3
High h Batch
(Figure 2)
Encore
(Figure 3)
Stacking
Bracket
Split Lock
Washer
Flat Washer
Bolt
Bolt
Flat Washer
Bracket
Flat Washer
Split Lock Washer
Nut
Bolt
Flat Washer
Bracket
Flat Washer
Split Lock Washer
Nut
Securing Tornado, C3, High h Batch, and
Encore Ovens to an Oven Cart
FOR ALL OVENS:
1. Unplug the oven.
2. Lock the wheels of the oven cart.
NOTE: For additional skid prevention of C3 and Tornado ovens, place a
TurboChef sorbothane stacking mat (part number NGC-1342-1) on the cart,
aligning the edges of the mat with the edges of the cart.
3. Place the oven on the oven cart.
WARNING: Do not attempt to lift the oven with fewer than 2 people.
WARNING: When lifting, position at least one person on each side.
WARNING: Do not lift the oven from the front and back.
WARNING: Do not lift the oven by the door handle.
FOR TORNADO & C3 ONLY: (FIGURE 1)
4. If the oven is a C3 or Tornado, remove the legs. There will be holes in the
oven where the legs used to be.
5. Align the oven holes with the oven cart holes. (Different sets of holes are
provided on cart to accommodate either the Tornado or C3 - see Figure 1.)
6. Install bolts with washers by running them up through the cart surface
and into the holes in the oven (where the legs were).
FOR HIGH H BATCH (FIGURE 2) AND ENCORE (FIGURE 3):
4. Attach one oven cart bracket to each leg (part number HHB-8206
includes four brackets).
5. Secure each leg by aligning the bracket with the holes on the oven
cart and attaching the parts listed in Figure 2 for the High h Batch and
Figure 3 for the Encore.
NOTE: Ensure the nut is securely tightened.
DOC-1032/Revision F/
February 2013
