Planet FNSW-2402S User Manual

24-port + 2-slot smart fast ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Trademarks

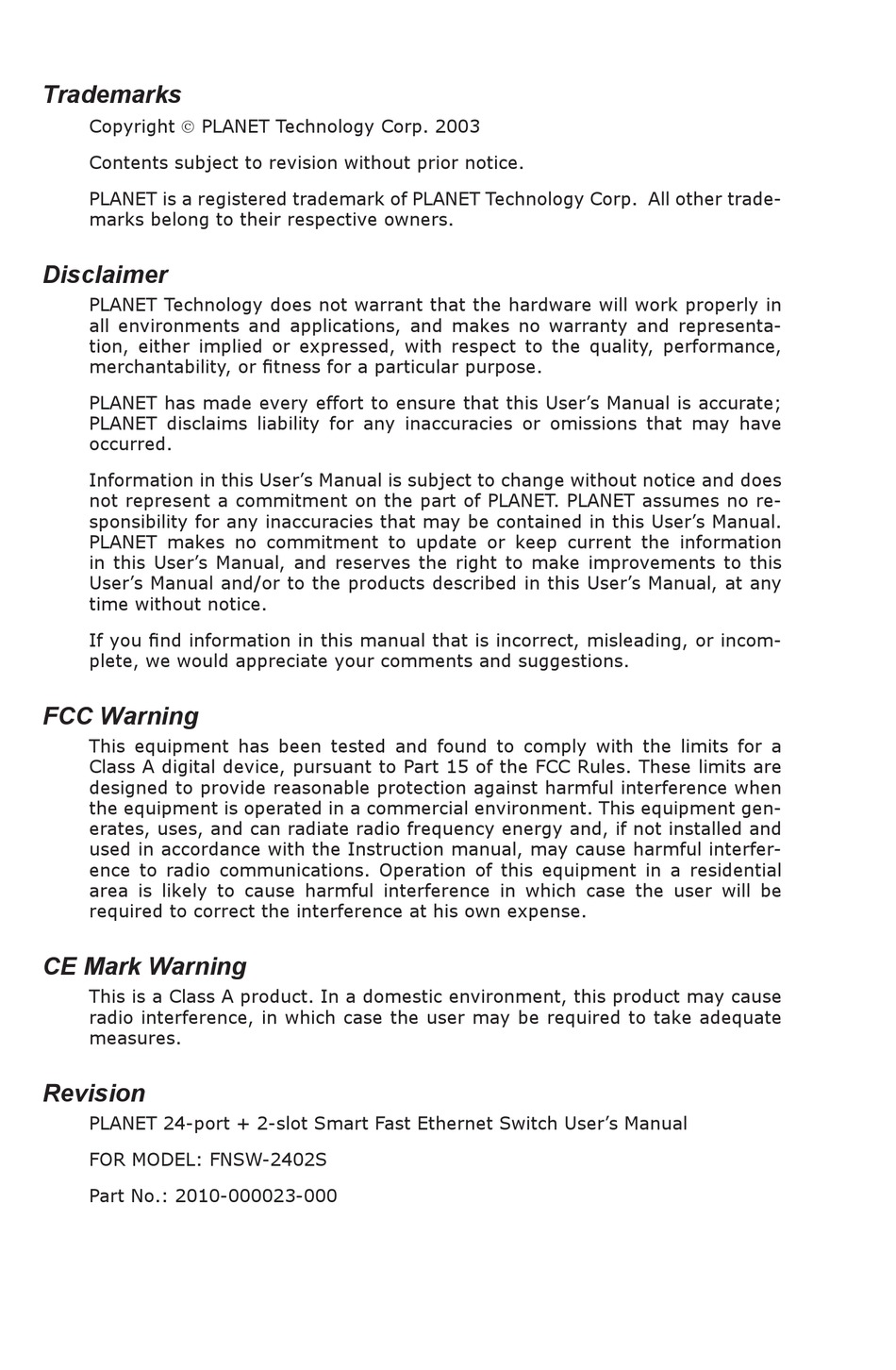

Copyright  PLANET Technology Corp. 2003
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other trade-
marks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in
all environments and applications, and makes no warranty and representa-
tion, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User's Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred.
Information in this User's Manual is subject to change without notice and does
not represent a commitment on the part of PLANET. PLANET assumes no re-
sponsibility for any inaccuracies that may be contained in this User's Manual.
PLANET makes no commitment to update or keep current the information
in this User's Manual, and reserves the right to make improvements to this
User's Manual and/or to the products described in this User's Manual, at any
time without notice.
If you find information in this manual that is incorrect, misleading, or incom-
plete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the Instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Revision
PLANET 24-port + 2-slot Smart Fast Ethernet Switch User's Manual
FOR MODEL: FNSW-2402S
Part No.: 2010-000023-000

Advertisement

Table of Contents
loading

Related Manuals for Planet FNSW-2402S

Summary of Contents for Planet FNSW-2402S

  • Page 1: Fcc Warning

    Trademarks Copyright  PLANET Technology Corp. 2003 Contents subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trade- marks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in...

  • Page 2: Table Of Contents

    1.1 Package Contents 1.2 How to Use This Manual 1.3 Product Features 1.4 Product Specifications Chapter 2 Installation 2.1 Product Description 2.2 Installing a FNSW-2402S Chapter 3 Configuration 3.1 Preparing for configuration 3.2 Getting Started Chapter 4 Switch Operation 4.1 Address Table 4.2 Learning...

  • Page 3: Chapter 1 Introduction

    1.2 How to Use This Manual This Smart Fast Ethernet Switch User’s Manual is structured as follows: • Section 2, Installation It explains the functions of FNSW-2402S and how to physically install the FNSW-2402S. • Section 3, Configuration It contains information about the smart function of FNSW-2402S.

  • Page 4: Product Specifications

    • Support up to 7 Trunk groups, each trunk for up to maximum 4 port with 800Mbps bandwidth • Support rate control on each port 1.4 Product Specifications Model FNSW-2402S Hardware Specification Network ports 24 10/100Base-T RJ-45 MDI/MDI-X ports Module slot...
  • Page 5 Flow Control Back pressure for half duplex, IEEE 802.3x for full du- plex Packet Control Runt & CRC filtering, Broadcast storm control Switching Fabric 8.8Gbps Switch Management Port Configuration Port disable/enable. Rate control configuration Auto- negotiation/NWAY _FORCE/ FORCE mode selection. 10/100Mbps full and half duplex mode selection.

  • Page 7: Chapter 2 Installation

    Ethernet. Users can be segregated using built-in VLAN functionality. This, coupled with the flexible fiber module options, make the FNSW-2402S one of the best and most cost-effective MTU switch solutions for Multi- tenant service providers.

  • Page 8: Installing A Fnsw-2402S

    Switch or the power adapter. 2.2 Installing a FNSW-2402S This part describes how to install your FNSW-2402S Smart Fast Ethernet Switch and make connections to the switch. Please read the following topics and perform the procedures in the order being presented.
  • Page 9 2.2.1 Desktop Installation To install a FNSW-2402S on a desktop or shelf, simply complete the following steps: Step1: Attach the rubber feet to the recessed areas on the bottom of the switch. Step2: Place the FNSW-2402S on a desktop or shelf near an AC power source.
  • Page 10 Figure 2-3 Attaching the brackets to the FNSW-2402S Caution: You must use the screws supplied with the mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your war- ranty. Step 3: Secure the brackets tightly. Step 4: Follow the same steps to attach the second bracket to the opposite side.

  • Page 11: Chapter 3 Configuration

    Chapter 3 CONFIGURATION Unlike the unmanaged switch, FNSW-2402S performs series smart functions that make the switch operate more effectively. This section will describe the common usage of the Switch Smart Configuration. 3.1 Preparing for configuration 3.1.1 Connecting a PC or Terminal to the RS-232 Port...
  • Page 12 As the switch powers on, it goes through a self-test process to ensure proper operations of the FNSW-2402S hardware. The messages will be displayed to show the test progress. When the test completes successfully, the system will display a login screen. If any of the components fails during the test, you may need to contact your local dealer and have the switch replaced.

  • Page 13: Getting Started

    Table 3-1 General Guideline within the Menu 3.2.2 Main Menu Screen The main menu enables you to view and manage the FNSW-2402S settings. Use the “Tab” keys to move the highlight over a selection. Press “ Enter” key for chooses Smart function of FNSW-2402S.
  • Page 14 Explained on section 3.2.4. Reboot Switch Allow user to reset the FNSW-2402S back to factory default and restart the FNSW-2402S. Explained in section 3.2.5. Logout Allow user to logout the FNSW-2402S console interface.
  • Page 15 The screen of Port Configuration in Figure 3-6 appears. Table 3-3 describes the Port Configuration objects of FNSW-2402S. This menu allows you to view or change the port configuration of FNSW-2402S. The user can set rate control on each port and determine each port’s disabled/enabled, auto-negotiation, NWAY-FORCE or FORCE mode, speed, duplex mode, flow control and rate control.
  • Page 16 Spd/Dpx Allow user to modify the 4 various speed and duplex mode on each port of FNSW-2402S. This option only take effect when the negotiation mode is set to NWAY_FORCE or FORCE. The descrip- tions of 4 various speed and duplex mode are shown as below: 10 Half: 10Mbps half-duplex mode.
  • Page 17 Configuration menu controls the port trunking or the so-called Link Aggregation function. There are 7 Trunk groups in the FNSW-2402S Smart Fast Ethernet Switch can be bundled together to form a high-speed trunk. Use the “TAB” key to choose the <Edit> and press “Enter”.
  • Page 18 Allow user to disable the VLAN function, enable Port-based VLAN or IEEE 802.1Q VLAN. The available options are shown as below: Disabled: disable VLAN function of FNSW-2402S. PortBased: enable port-based VLAN function of FNSW- 2402S. 802.1Q: enable IEEE 802.1Q VLAN function of FNSW- 2402S.
  • Page 19 Create a VLAN Allow user to create new VLAN group. Maximum number of Group VLAN group allowed on this switch is 26 for both port-based VLAN and IEEE 802.1Q VLAN Edit/Delete a Allow user to edit or delete existing VLAN group. VLAN Group Previous Menu Back to Switch Configuration screen.
  • Page 20 Figure 3-11 Create a port-based VLAN Group screen Figure 3-12 Create an IEEE 802.1Q VLAN Group screen After setup completed, press “Ctrl-A” key to return to Actions menu and use the “TAB” key to choose the <Save> for saving the current configuration. The screen in figure 3-13 & 3-14 appears with message “Save successfully! Press any key to return!”...
  • Page 21 Figure 3-14 Save 802.1Q VLAN configuration successfully screen 3.2.3.3.3 Edit / Delete a VLAN Group Use the “TAB” key to move the highlight to the Edit/Delete a VLAN Group (Figure 3-15) and press “Enter” to access the screen of Edit/Delete a VLAN Group. The screen of Edit/ Delete a VLAN Group appears.
  • Page 22 Figure 3-16 Edit existing VLAN Group Configuration Screen Use the “Tab” and “Back space” to move forth and back between VLAN and press “Enter” to select the VLAN you want to edit. The screen in figure 3-17 appears. Please follow the same procedure as section 3.2.3.3.2 Create a VLAN Group to edit the VLAN group.
  • Page 23 3.2.3.3.3.2 Delete a VLAN Group On “Edit / Delete a VLAN group” menu, use the “TAB” key to move the highlight to the <Delete> and press “Enter” to start the deleting of existing VLAN group. The screen of Delete a VLAN Group in Figure 3-19 appears. Figure 3-19 Delete existing VLAN group Screen Use “TAB”...
  • Page 24 3.2.3.3.4 Previous Menu Choose “Previous Menu” to return to Switch Configuration screen of FNSW-2402S. Figure 3-21 Previous Menu Screen 3.2.3.4 Misc Configuration Use the “TAB” key to move the highlight to the Account Configuration and press “Enter” to access the screen of Account Configuration from the Switch Configuration screen (please see the figure 3-5).
  • Page 25 Figure 3-23 Save account Configuration successfully screen Object Description Username Allow user to set the login username for FNSW-2402S. The default username is admin. Up to 10 characters is allowed for the user name. Old Password Allow user to input the existing old password for FNSW- 2402S.

  • Page 26: Switch Information

    3.2.3.5 Main Menu This function allows user to return to the main menu of FNSW-2402S. The screen in figure 3-24 appears. Figure 3-24 Main Menu screen 3.2.4 Switch Information Press “Enter” to access the screen of Switch Information from the main menu screen (please see the figure3-4).
  • Page 27 Port Status from the Switch Information screen (please see the figure 3-25). This screen allows user to view the current status of each port from FNSW-2402S. The screen in figure 3-27 appears. Choose < Next Page> to go to next page of Port Status and choose <...

  • Page 28: Reboot Switch

    3.2.4.3 Main Menu This function allows user to return to the main menu of FNSW-2402S. The screen in figure 3-28 appears, press “Enter” to return to the main menu screen. Figure 3-28 Main Menu Screen 3.2.5 Reboot Switch Press “Enter” to access the screen of Reboot Switch from the main menu screen (please see the figure3-4).
  • Page 29 Previous Back to Main Menu of FNSW-2402S. Please refer to chapter 3.2.5.3 Menu for detail information. Table 3-10 Descriptions of the Switch Information Screen Objects 3.2.5.1 Default Use the “TAB” key to move the highlight to the Default and press “Enter” from the Restart Configuration screen (please see the figure 3-29).
  • Page 30 Then the FNSW-2402S will reboot and go to the login screen. The screen in figure 3-32 & 3-33 appears. All the configuration you have made to the switch is cleared now. Figure 3-32 Reboot the FNSW-2402S Screen Figure 3-33 FNSW-2402S login Screen 3.2.5.2 Restart...
  • Page 31 Then the FNSW-2402S’s login screen in figure 3-36 appears. Figure 3-36 FNSW-2402S login Screen 3.2.5.3 Previous Menu This function allows user to return to the main menu of FNSW-2402S. The screen in figure 3-37 appears. Figure 3-37 Previous Menu Screen...
  • Page 32 3.2.6 Logout Press “Enter” to access the screen of Logout from the main menu screen (please see the figure3-4). Then users will logout from the FNSW-2402S. The screen in Figure 3-38 appears. Figure 3-38 FNSW-2402S login Screen...

  • Page 33: Chapter 4 Switch Operation

    Chapter 4 SWITCH OPERATION 4.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This information comes from the learning process of Ethernet Switch.

  • Page 34: Auto-Negotiation

    The Switch performs “Store and forward” therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur. 4.5 Auto-Negotiation The STP ports on the Switch have built-in “Auto-negotiation”. This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset).

  • Page 35: Chapter 5 Troubleshooting

    Chapter 5 TROUBLESHOOTING This chapter contains information to help you solve problems. If the Ethernet Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual. The Link LED is not lit Solution: Check the cable connection and remove duplex mode of the Ethernet Switch Some stations cannot talk to other stations located on The other port...

  • Page 37: Switch's Rj-45 Pin Assignments

    Appendix A A.1 Switch‘s RJ-45 Pin Assignments When connecting your 10/100Mbps Ethernet Switch to another switch, a bridge or a hub, a straight or crossover cable is necessary. Each port of the Switch supports auto-MDI/ MDI-X detection. That means you can directly connect the Switch to any Ethernet devices without making a crossover cable.
  • Page 38 There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables into your network.
  • Page 39 Part No.:2010-000023-000...
