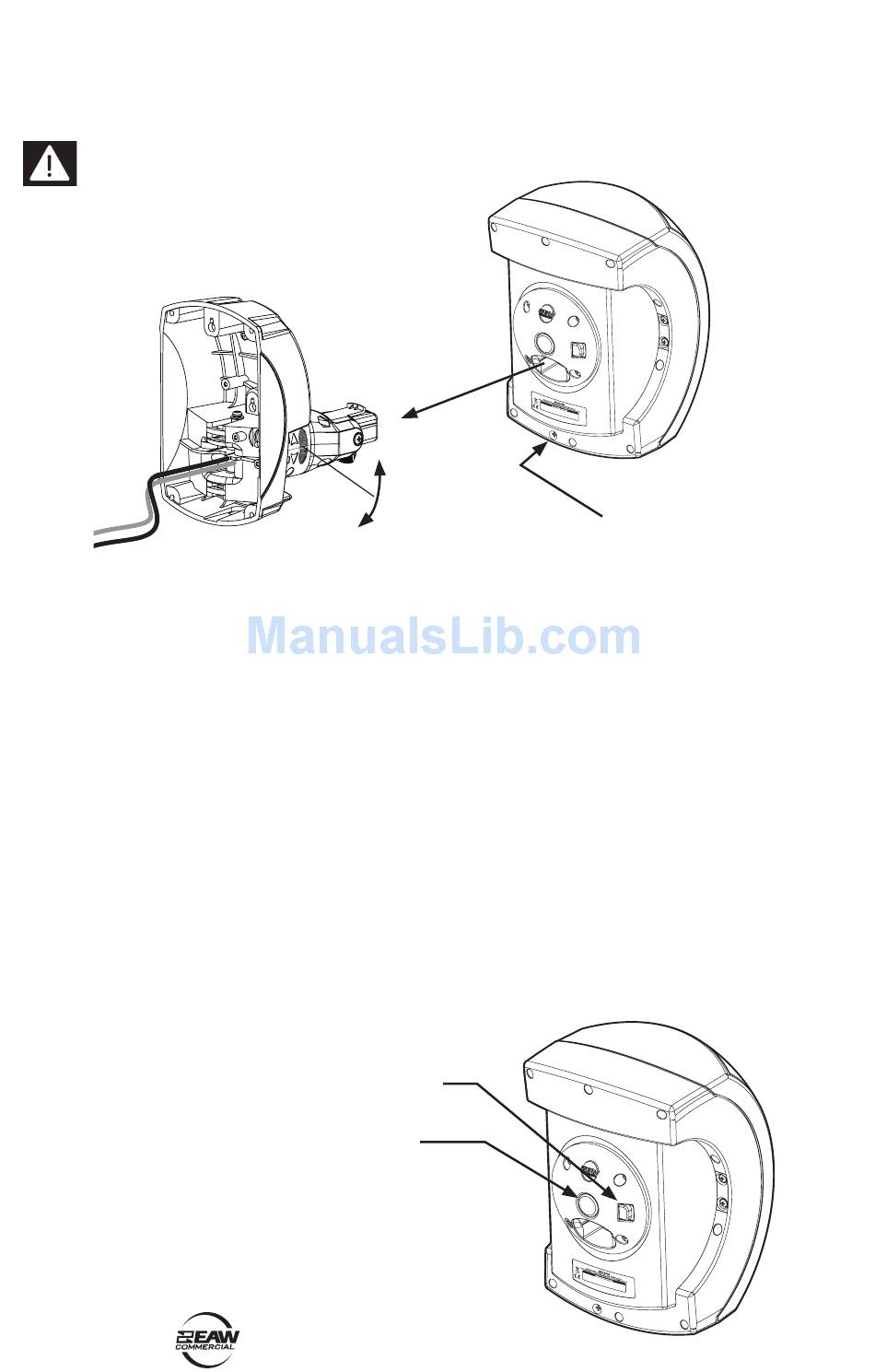

Mounting the loudspeaker onto a bracket:
a. Once the clip-fit bracket has been wired and secured to the wall, press the
loudspeaker onto the input connector, until it clicks into place.
Make sure it is fitted on correctly and clicks into place securely.
Adjusting the loudspeaker angle:
The adjustment and locking mechanism has been designed to be easy to use.
a. Rotate the locking wheel until the loudspeaker can be rotated horizontally and
vertically. Find the desired loudspeaker position, and then rotate the locking wheel
until it locks this position. Slots are provided in the locking wheel to allow further
tightening with a flathead screwdriver if required.
b. Perform a listening test to verify that the coverage is acceptable.
Tethering the loudspeaker:
a. An M5 threaded hole in the bottom rear of the loudspeaker is provided for tethering
the loudspeaker. This will reduce the chance of it from falling during structural events
such as earthquakes or fires. Professional installers will be able to advise the best
tethering system for your installation.
Unmounting the loudspeaker:
a. Slide the red plastic tab left, towards the
center of the loudspeaker, and hold it there
while you press the red center button
inwards.
Carefully pull the loudspeaker off the bracket,
using both hands.
10
– CF-2LZ/CF-2TX
Lock
Lock/unlock wheel
Unlock
M5 threaded tether hole
