EAW FB1SB Installation Instructions

Warning: Suspending Loudspeakers should be done with extreme caution and by a certified professional
who is qualified to determine the requirements for and to implement overhead rigging. Failure to
follow proper precautions may result in
damage to the equipment, injury, or death.
Description:
The FB1SB Fly-Bar is used to suspend up
to 12 SB1002 loudspeakers. These instructions enable a technician to suspend 2 SB1002 Loudspeakers
from the Fly-Bar. To suspend additional SB1002 loudspeakers, refer to the SB1002 Installation Manual.
Working Load Limit (WLL): vertical pull
FB1SB Fly-Bar WLL: 2000 lb/ 907 kg
maximum twelve (12) SB1002 in succession
Weights: SB1002: 155 lb/70 kg, Fly-Bar: 20 lb/9 kg

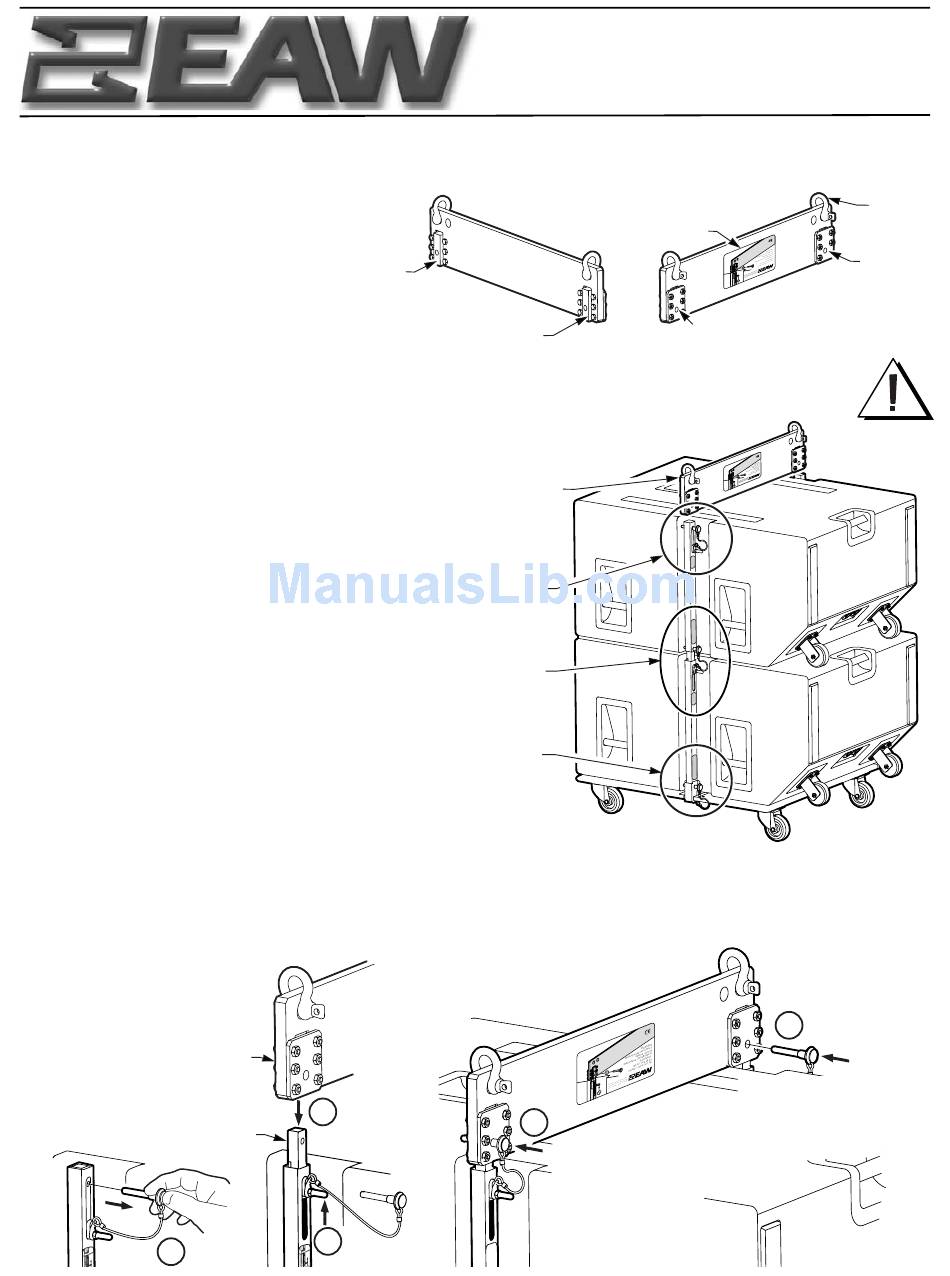

Rigging Points on the SB1002 Array:
These instructions follow the same sequence a
technician must follow when flying an array of
SB1002 enclosures. The figure to the right shows,
from the top down, the three rigging operations:
A. Enclosure to Fly-Bar,
B. Enclosure to Enclosure
C. Caster Pallet from Enclosure
The three rigging operations are defined by the
following three assembly illustrations.
Rigging tubes, hinges, and their tethered quick disconnect pins are attached to both sides of the SB1002
Loudspeaker. These instructions apply to both the right and left sides of the Fly-Bar, Loudspeakers, and Caster
Pallet. To disassemble the array reverse the sequence of the operations defined in these instructions.
A. Enclosure to Fly-Bar:
REMOVE QUICK
DISCONNECT PIN
1
HINGE TUBE
FLY - BAR / FB1SB
HINGE
TUBE
LOWER
FLY-BAR
AND FULLY
3
INSERT
HINGE INTO
HINGE
HINGE TUBE
2
RAISE
HINGE

Installation Instructions

FB1SB Fly-Bar & Rigging
FRONT
HINGE TUBE
FLY-BAR POSITIONED
ABOVE PALLET
OF SB1002
LOUDSPEAKERS
ENCLOSURE
TO FLY-BAR
ENCLOSURE TO
ENCLOSURE
CASTER PALLET
FROM
ENCLOSURE
4
ALIGN HOLES IN
HINGE TUBE AND
HINGE. FULLY INSERT
QUICK DISCONNECT PIN
TO LOCK FLY-BAR TO
ENCLOSURE
LABEL
DISCONNECT PIN
REAR
HOLE FOR QUICK DISCONNECT PIN
5
ALIGN HOLES IN
HINGE TUBE AND
HINGE. FULLY INSERT
QUICK DISCONNECT PIN
TO LOCK FLY-BAR TO
2X USER
SUPPLIED
SHACKLE
HOLE FOR
QUICK
ENCLOSURE
