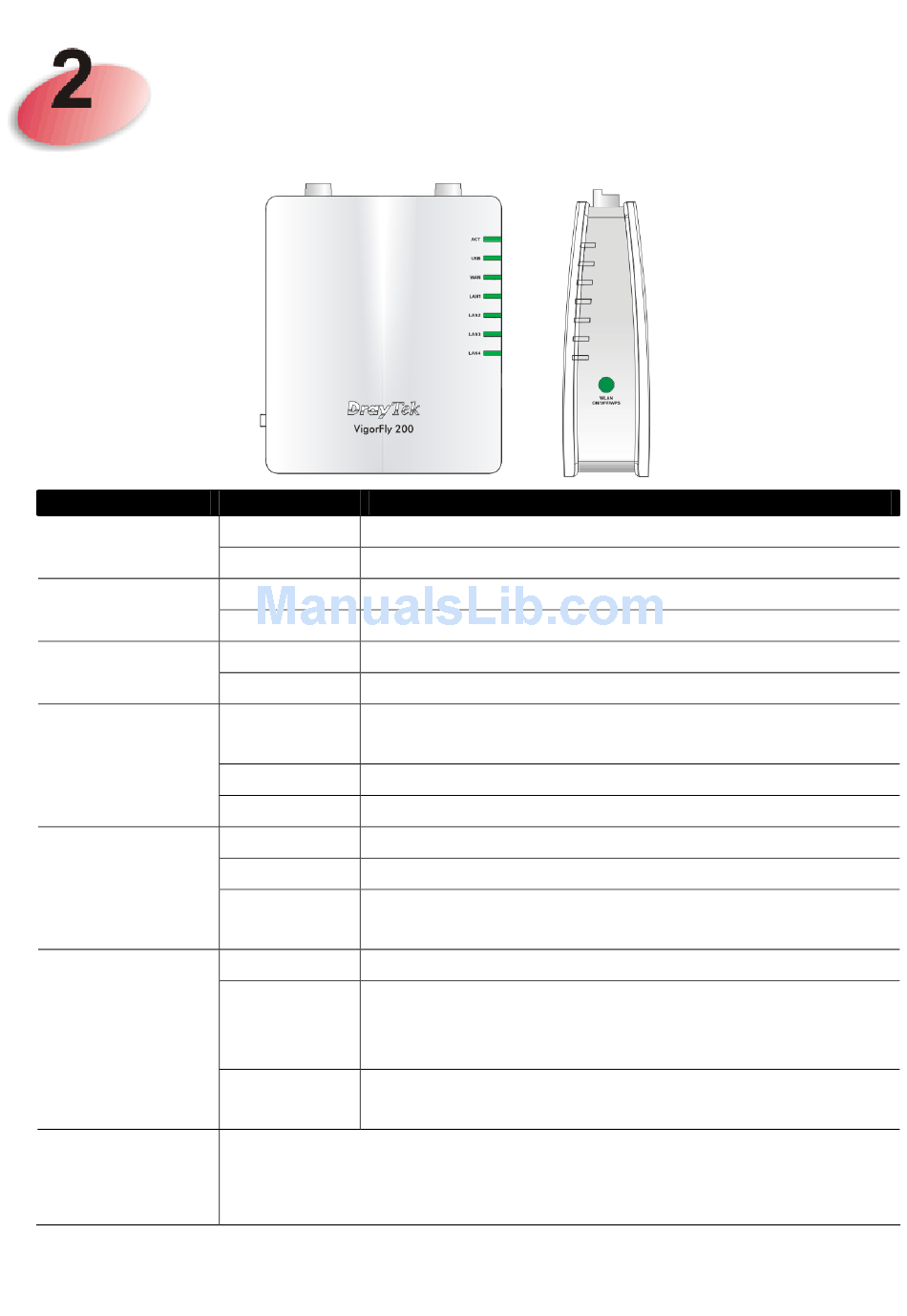

Descriptions of Components
LED
ACT
USB
WAN
LAN 1 - 4
WLAN
(Green LED) on
WLAN button
WPS
(Orange LED)
on WLAN
button
WPS Button
Status
Explanation
Off
The system is not ready or is failed.
Blinking
The system is ready and can work normally.
On
A USB device is connected and active.
Blinking
The data is transmitting.
On
The WAN port is connected.
Blinking
It will blink while transmitting data.
On
A normal connection is through its corresponding
port.
Off
LAN is disconnected.
Blinking
Data is transmitting (sending/receiving).
On
Wireless access point is ready.
Off
Wireless access point is not ready.
Blinking
Blink when wireless traffic goes through.
(Green)
Off
The WPS is off.
Blinking
Blink with 1 second cycle for 2 minutes - - WPS is
(Orange)
enabled and waiting for wireless client to connect
with it.
Blinking
Blink when wireless traffic goes through.
(Orange)
Press this button for 2 seconds to wait for client device making
network connection through WPS. When the orange LED lights
up, the WPS will be on.
