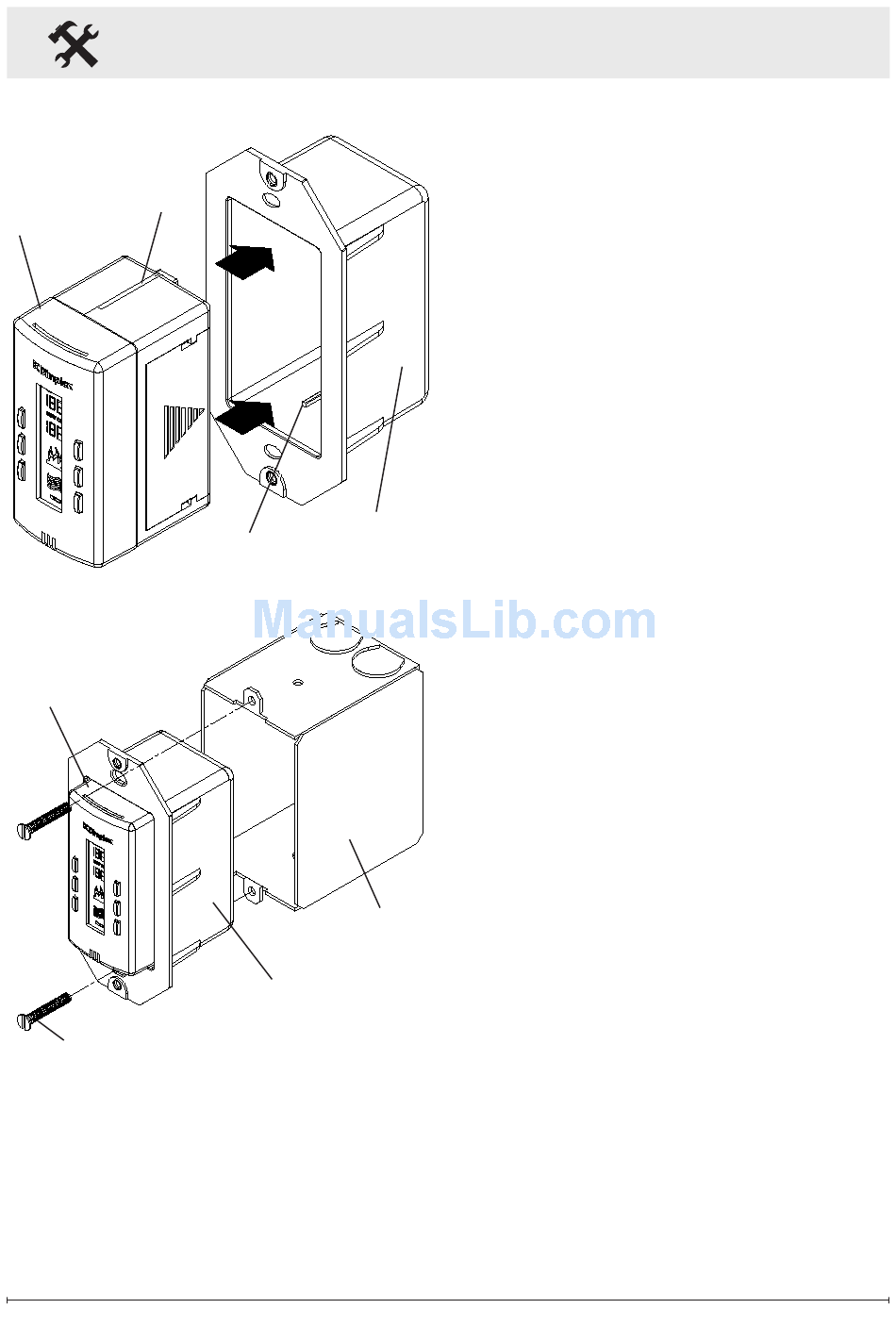

Wall Control Installation
Figure 8
Tracks
Controller
Figure 9
Controller
Flat head screws
(supplied)
head screws (supplied) as
shown in Figure 9.
7. Attach your choice of Decora
style faceplate (not supplied)
Guides
Housing
Wall Box
Outer Housing
to complete the installation
and to blend the installation in
with your choice of decor.
Hard Wired Power Supplied
Installation
Before starting this installation,
it is helpful to initialize the Wall
Switch Remote Control with your
firebox (see Initialization section).
You should have the following
Outer
items ready and prepared:
•
Installed standard wall device
box with a minimum depth of
2.5 inch (6.35 cm).
•
A 24V~ power source leading
to the device box. Possible
sources could be a 24V~
doorbell circuit or a Class 2
24V~ transformer.
•
The 24V~ wire leads coming
into the device box should have
between 4 and 6 inches (10-15
cm) of slack left inside the box
to allow for ease of installation
and/or servicing.
•
You may also leave the
supplied AAA batteries in the
Controller. There is an internal
electronic bypass that will draw
on the hard wired power source
before the batteries.
9
