Operation

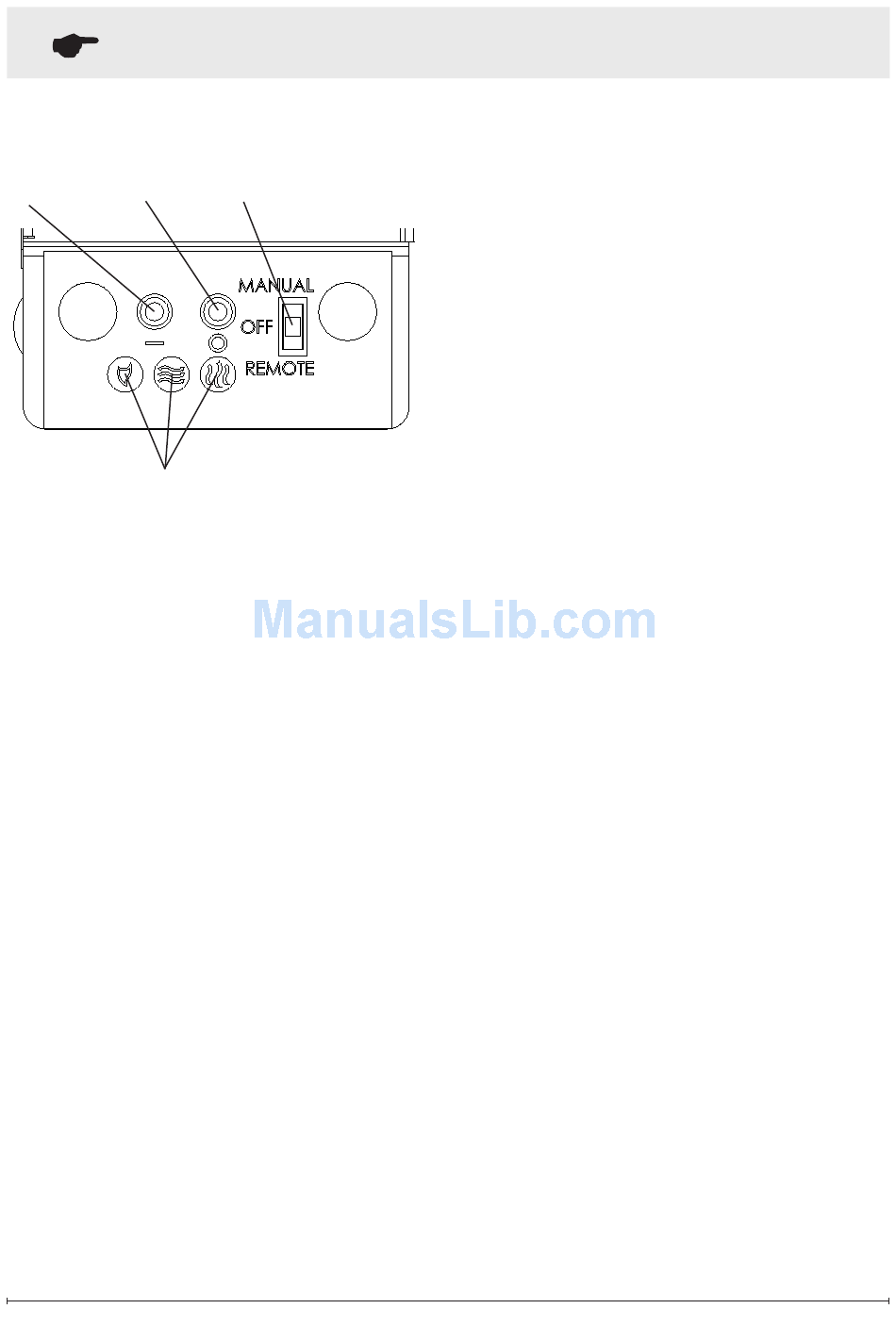

Figure 20
A
B
D
A. On Button
Pressing this button toggles
sequentially through the three
levels of the fireplace. Pressing
once activates Level 1 - flame
effect only, twice activates Level 2
- flame effect and Purifire™, three
times activates Level 3 - flame
effect, Purifire™ and heat.
B. Off Button
Pressing this button at any time
will shut the unit off.
C. Manual Selection Switch
Switches the operation of the
fireplace between the different
modes of the fireplace:
16
C
•
OFF (center): Makes the unit
inoperable.
•
MANUAL (top): All functions
of the fireplace are controlled
by the On and Off buttons as
described above (A, B).
•
REMOTE (bottom): All
functions of the fireplace are
controlled by the Wall Switch
Remote Control.
D. LED Indicators
Depicts which of the three (3)
levels the fireplace is currently
operating at: Level 1 - flame effect
only; Level 2 - flame effect and
Purifire™; Level 3 - Flame effect,
Purifire™ and heat.
!
NOTE: The third LED (Level 3)
on receiver board will always
be illuminated when the
Manual Selection Switch is set
to REMOTE. The only time
that the LED is turned off is
when the thermostat is set to
"Heat Off".
www.dimplex.com
