Dimplex WRCPF-KIT Owner's Manual

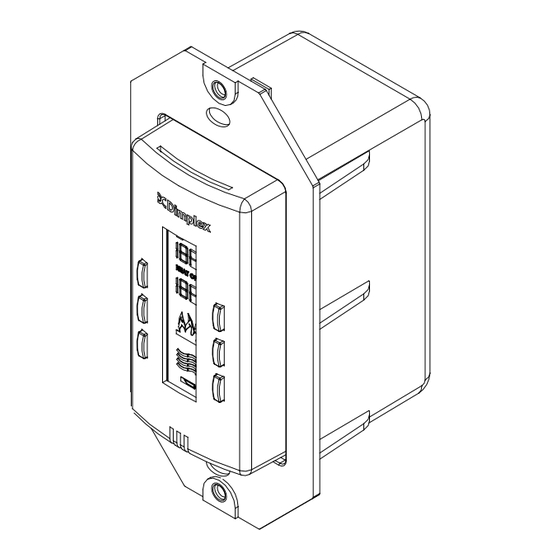

Wall switch remote control
Hide thumbs Also See for WRCPF-KIT:

Advertisement

IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this device. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com
Owner's Manual
Model
WRCPF-KIT
7209110100R05

Advertisement

loading

Summary of Contents for Dimplex WRCPF-KIT

  • Page 1 For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7209110100R05...
  • Page 2: Table Of Contents

    CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. W ARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com...
  • Page 3: Welcome & Congratulations

    Welcome & Congratulations Thank you and congratulations for purchasing a Wall Switch Remote Control Kit from Dimplex. Please carefully read and save these instructions. CAUTION: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty.
  • Page 4: Product Overview

    NOTE: This equipment has been Kit is designed to work with tested and found to comply with the limits for Class B digital device, the following Dimplex electric pursuant to part 15 of the FCC Rules. fireplaces: These limits are designed to provide reasonable protection against harmful •...
  • Page 5: Receiver Installation (Bf Units Only)

    Receiver Installation (BF units only) Figure 2 1. Open steel curtain (remove glass doors if applicable). ember Back 2. Remove two (2) screws on log ledge grate and remove log grate (Figure 1). Figure 1 Rear Front Side section edge 5.
  • Page 6 (Figure 2) and the logs are resting against the partially reflective glass. 11. Replace log grate using two (2) screws previously removed in step 2. www.dimplex.com...
  • Page 7: Wall Control Installation

    Wall Control Installation ! NOTE: All electrical wiring other bodily harm and property must comply with all national damage can occur if a live wire and local electrical codes and is touched or damaged during regulations. Always use a installation. Always consult qualified and licensed electri- electrical schematics for the cian should you have any...
  • Page 8 (supplied) as shown in Figure 9. 7. Attach your choice of Decora style faceplate (not supplied) to complete the installation and to blend the installation in with your choice of decor. Figure 7 Controller Figure 6 Insulating Strip Battery Compartment www.dimplex.com...
  • Page 9 Wall Control Installation Figure 8 Hard Wired Power Supplied Installation Tracks Controller Before starting this installation, it is helpful to initialize the Wall Switch Remote Control with your firebox (see Initialization section). You should have the following items ready and prepared: •...
  • Page 10 Controller in place (Figure 13). Locking Screw Option (Figure 14) To prevent tampering, dam- age, and theft, it is suggested to install the locking screws. Once installed, the locking screws will prevent the Controller from being released from the Outer Housing www.dimplex.com...
  • Page 11 Wall Control Installation without being removed first from tions. the device box in the wall. ! NOTE: Wire leads are not ! NOTE: A Philips head screw- polarized due to the nature of driver will be required for this this device. step.
  • Page 12 Wall Control Installation Figure 15 Ensure each of the two Controller lead wires are connected to separate Low Voltage 24V~ only wires. Low Voltage Controller 24V~ power source ONLY wire leads Figure 16 Flat Head Screws (supplied) www.dimplex.com...
  • Page 13: Initialization

    Initialization After installation, locate the 4. Press any button on the Wall section which applies to your Switch Remote Control within specific model of fireplace and that 10 seconds. follow the steps for remote control BLF34, BLF50, BLF74 Models initialization and if required, 1.
  • Page 14: Operation

    C. Manual Selection Switch be illuminated when the Man- ual Selection Switch is set to Switches the operation of the REMOTE. The only time that fireplace between the different www.dimplex.com...
  • Page 15 Operation the LED is turned off is when the thermostat is set to “Heat Off”. Wall Switch Remote Control Display Operation 1. Room Temperature 8. Set Temperature Down 2. Set Temperature 9. Set Temperature Up 3. Flame Effect 10. Flame Off 4. Purifire™...
  • Page 16 Press 13 to turn the Purifire™ Indicator icon will be displayed function on, and press 12 to turn when enabled. Purifire™ off. ! NOTE: The Purifire™ function on this device will control only those units with the Purifire™ installed. www.dimplex.com...
  • Page 17: Other Functions

    Operation Other Functions 7. RF Code Function and Change Procedure 6 Hour Sleep Timer In the event that the Wall Switch This feature ensures all functions Remote Control does not work are turned off six hours after any properly with the receiver due last button has been pressed.
  • Page 18: Warranty

    Dimplex. It is agreed that in violation of the instruction sheet. This such repair or replacement is the exclusive...
