Receiver Installation (BF units only)
6.
Locate the plastic 9-pin plug
in the bottom corner of the
fireplace where the manual
controls were plugged in to.
7.
Insert the plug connector from
the remote control bracket
(Figure 4) into plastic plug
inside the fireplace.

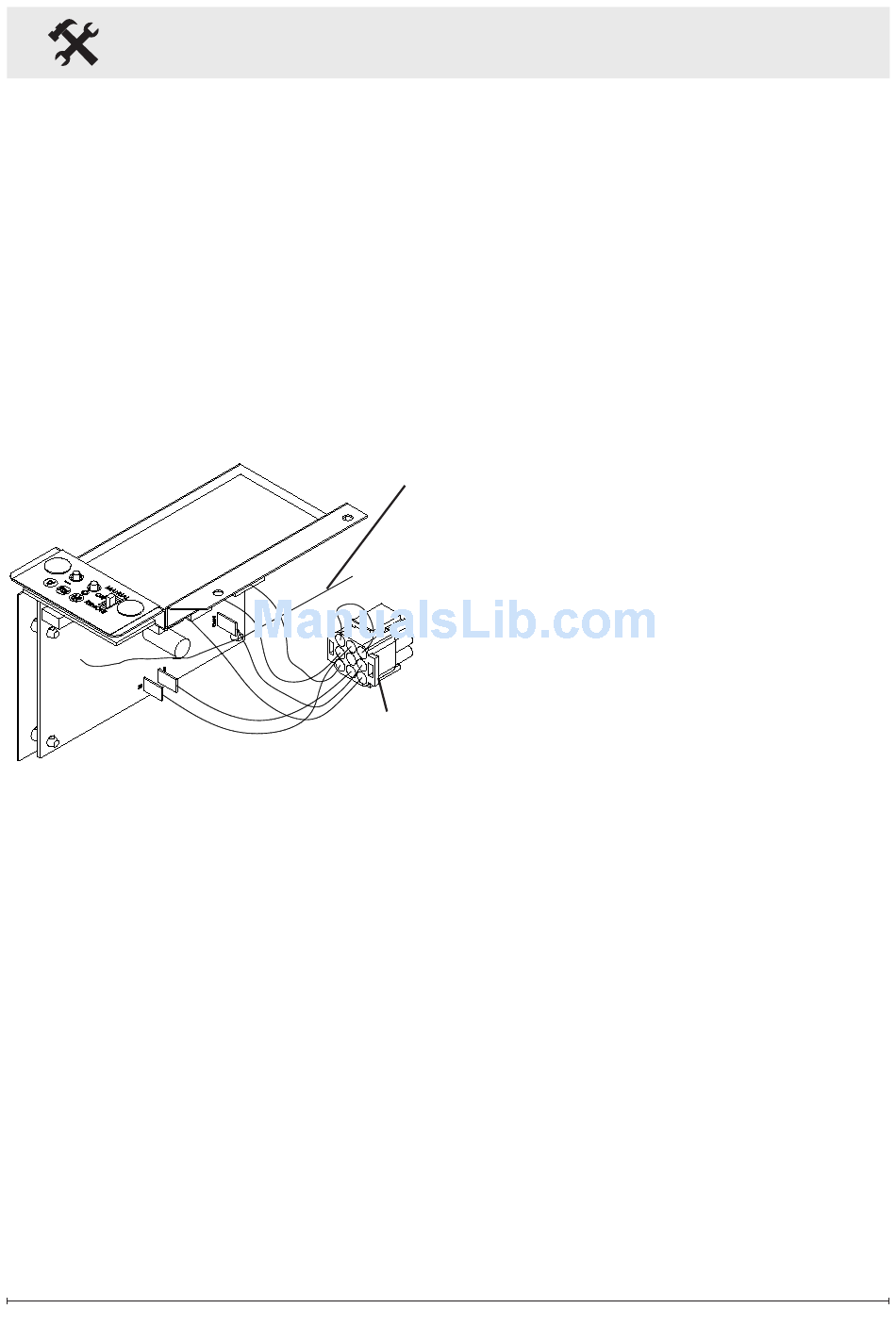

Figure 4
Remote Control
8.
Run black antenna wire under
remote bracket and ensure
all wiring is placed such that
it does not interfere with re-
assembly.
9.
Install the two (2) screws
removed in step 4 into the
remote control bracket and
attach it to the fireplace.
10.
Replace the log set by
inserting front edge and
pushing the back down until
rear tab snaps under back
6
11.
Antenna
Plug
Connector
ledge (Figure 2) and the logs
are resting against the partially
reflective glass.
Replace log grate using two
(2) screws previously removed
in step 2.
www.dimplex.com
