Receiver Installation (BF units only)
1.
Open steel curtain (remove
glass doors if applicable).
2.
Remove two (2) screws on log
grate and remove log grate
(Figure 1).

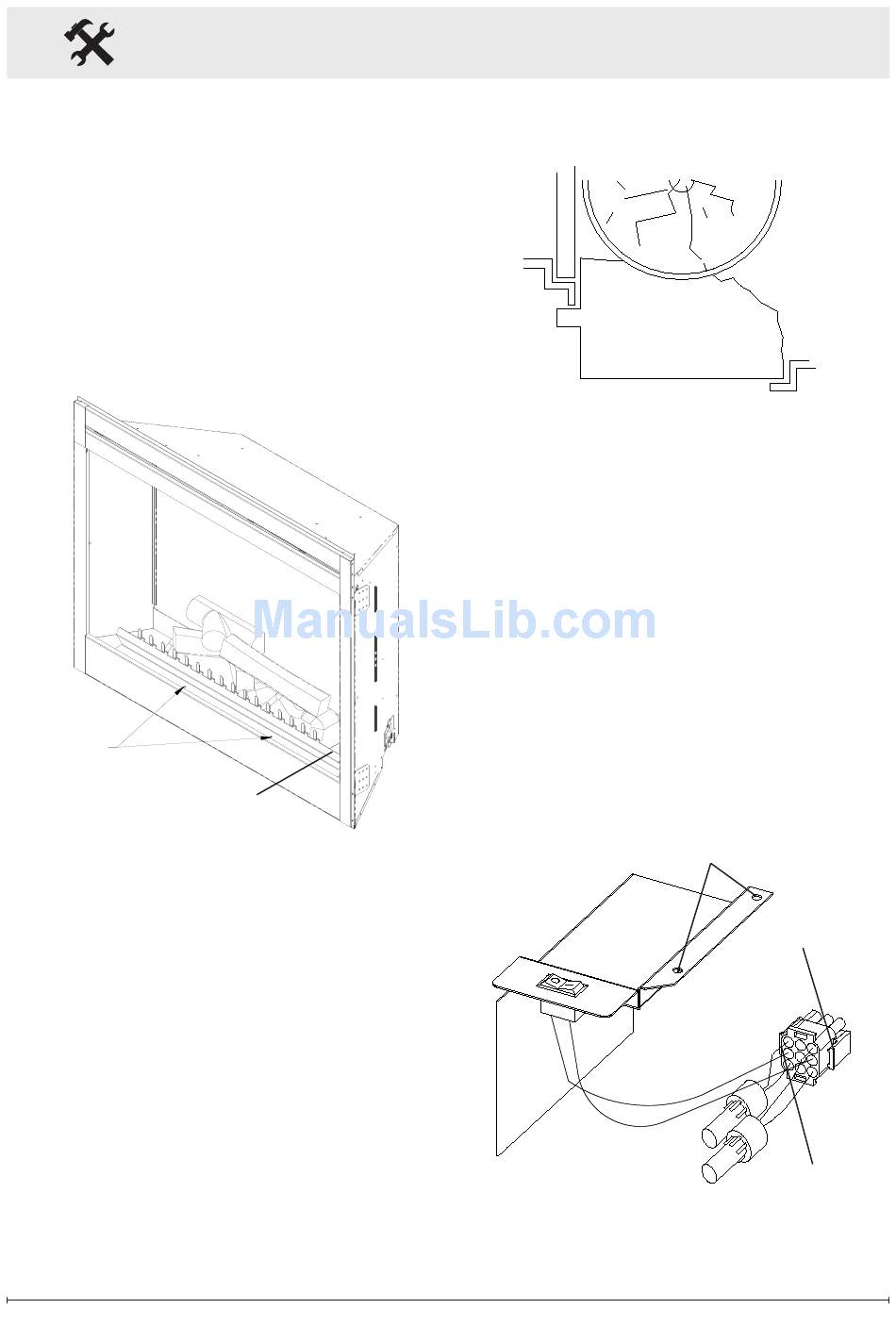

Figure 1
Screws
Manual Controls
3.
Pull front edge of plastic
ember bed grate up and
forward until rear tab releases
from the ledge located at
the bottom of the partially
reflective glass (Figure 2).
!
NOTE: Log set fits tightly into
firebox, some force may be
necessary to remove.
Figure 2
Back
ledge
Rear
tab
Side section
4.
Locate and remove the two (2)
screws on the manual control
bracket (Figure 3). Remove
the bracket.
5.
Locate and depress the
mounting tabs on the plug
connector and remove the
manual control bracket from
fireplace (Figure 3).
Figure 3
Manual controls
Log
ember
bed
Front
edge
Screw locations
Mounting
Plug
connector
tabs
