Troubleshooting

No power: Check battery and power supply connections and voltage.
Check the power switch on the transmitter.
The LCD displays "E0 00" or similar code: Exit master list mode by
holding the SET button for ten seconds.
Can't turn off or change settings on the transmitter or receiver: The
interface is locked. See the section on locking the interface.
No audio: If the antenna and battery indicators do not appear on the re-
ceiver, then it is not receiving a signal from the transmitter. Make sure the
transmitter and receiver are tuned to the same group and channel.
Faint or distorted audio: Adjust transmitter gain, bodypack attenuator
switch, and receiver output level.
Noise: Noise usually results from wireless interference or a weak signal
from the transmitter. See Tips for Improving System Performance.

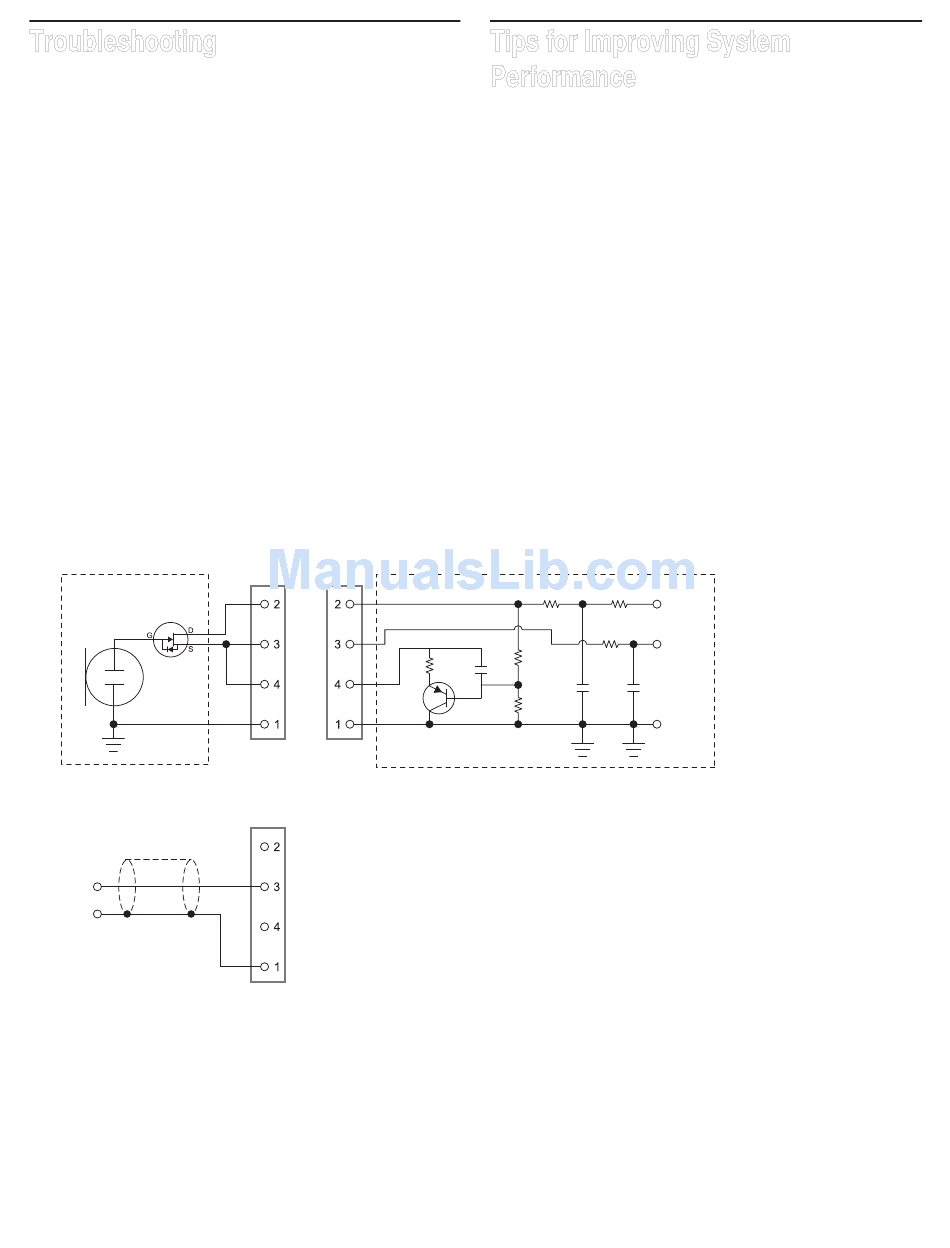

CONDENSER MICROPHONE
INSTRUMENT CABLE
TIP
SLEEVE
SHIELD
8
4-PIN MINI CONNECTOR
TA4F TA4M
TA4F
AUDIO
Tips for Improving System
Performance
If you encounter wireless interference or drop outs, try the following:
• Replace the transmitter battery with a fresh alkaline battery (avoid
rechargeable batteries).
• Choose a different frequency channel.
• Reposition the antennas so there is nothing obstructing a line of sight
to the transmitter (including the audience).
• Avoid placing transmitter and receiver where metal or other dense
materials may be present.
• Move the receiver to the top of the equipment rack (or remote mount
antennas outside the rack).
• Remove nearby sources of wireless interference, such as cell
phones, two-way radios, computers, media players, and digital signal
processors.
• Keep transmitters more then two meters (6 feet) apart.
• Keep the transmitter and receiver more than 5 meters (15 ft) apart.
• Point the receiver antenna tips away from each other at a 45° angle,
and keep them away from large metal objects.
• During sound check, mark "trouble spots" and ask presenters or
performers to avoid those areas.
BODYPACK TRANSMITTER
500Ω
300kΩ
1kΩ
4.7 µf
100kΩ
4kΩ
+5V
500Ω
AUDIO
27 pf
27 pf
GROUND
