- Page 1 Wireless System User Guide Ultra-Wide Band Frequency Agile UHF Systems Auto Frequency Selection (AFS) Reliable, Professional Sound Quality Multi-System Operation E2003, Shure Incorporated Printed in U.S.A. 27EN8732C (CC)
-
Page 2: Table Of Contents
CONTENTS SYSTEM COMPONENTS ..............ULXS4 STANDARD RECEIVER FEATURES AND CONTROLS . -
Page 3: Ulx ) System Components
ULX1 ULX2 FIGURE 1 Each Shure ULX Wireless System includes the following components, as shown in Figure 1: ULX1 Body-Pack Transmitter with a lavalier microphone, instrument adapter cable, or headworn microphone or a ULX2 Hand-Held Microphone Transmitter with an interchangeable Shure microphone head... -
Page 4: Ulxs4 Standard Receiver Features And Controls
13. Power Connector. Accepts power from the supplied AC adapter, or from any filtered 14–18 Vdc (550 mA minimum) supply. It also accepts dc power from a Shure UA844 Antenna Distribution System. 14. Output Connector (XLR balanced Low Z). Provides balanced low–impedance mic level or line level output. -

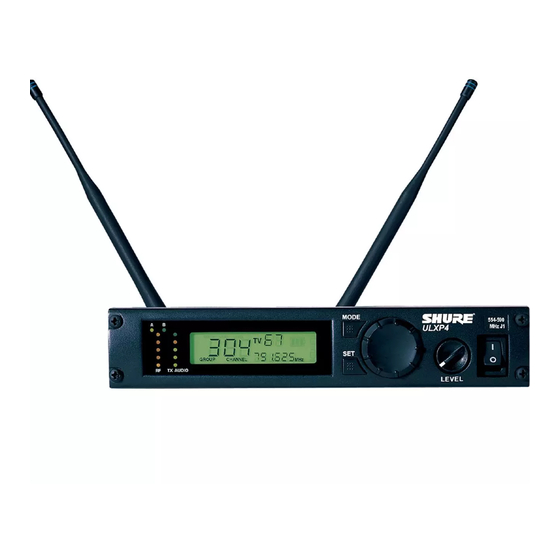

Page 5: Ulxp4 Professional Receiver Features And Controls
19. Power Connector. Accepts power from the supplied AC adapter, or from any filtered 14–18 Vdc (550 mA minimum) supply. It also accepts DC power from a Shure UA844 Antenna Distribution System. 20. Output Connector (XLR balanced Low Z). Provides balanced low–impedance mic level or line level output. -
Page 6: Single System Installation
SINGLE SYSTEM SETUP Receiver Connections NOTE: If you are installing multiple ULXP4 Professional systems, or systems with multiple ULXP4 receivers, refer also to the Advanced Programming section of this manual. Plug the dc power supply into the power connector on the back of the receiver . -
Page 7: Turning The Receiver On
If the receiver XLR output is used, make sure the MIC/LINE switch setting matches the input requirements of the mixer or amplifier, as shown in Figure 7. The Mic/Line switch does not affect the output of the unbalanced 1/4 inch phone jack. LINE FIGURE 7 Turning the Receiver On... -
Page 8: Changing The Receiver Group Setting
Changing the Receiver Group Setting Press the MODE button twice. The word GROUP will flash on the display, as shown in Figure 12. FIGURE 12 Press the buttons (ULXS4) or rotate the control knob (ULXP4). The new frequency Group number will appear on the display, as shown in Figure 13. -
Page 9: Ulx1 Transmitter Features And Controls
FIGURE 18 Antenna. A flexible 1/4 wave antenna is permanently attached to the top of the ULX1 transmitter. Input Connector. This TA4F miniature four-pin connector mates with a variety of Shure lavalier, instrument and headset microphones and cables. Power ON/OFF Switch. Turns transmitter power on and off. -
Page 10: Ulx2 Transmitter Features And Controls
ULX2 TRANSMITTER FEATURES AND CONTROLS (FIGURE 19) Ñ FIGURE 19 Grille. Protects the microphone cartridge and helps reduce breath sounds and wind noise. The grilles of the various microphone heads differ in appearance. Display Window. Displays Group and Channel setting, battery power level, and PEAK indicator. Battery Level Icon. -
Page 11: Transmitter Setup
FIGURE 20 ULX1 Bodypack Connections If you are using a Bodypack system with a Shure lavalier microphone or instrument adapter, plug the microphone cable or instrument adapter cable into the transmitter input connector, as shown in Figure 21. NOTE: The wiring of the input connector on the transmitter is designed for Shure microphones. -
Page 12: Checking Transmitter Battery Power
NOTE: Stated battery life is based on a 9V Duracell alkaline battery. For details on other battery types, refer to the “Battery Life” paragraph, or go to the Shure web site at www.shure.com and refer to the FAQ section. Once the empty battery icon appears, the tone key turns off and the receiver will mute. - Page 13 Press the SET button to advance to the desired Channel number, as shown in Figure 27. FIGURE 27 To reverse the direction of the Group or Channel search, hold down the SET button and press the MODE button. See Figure 28 FIGURE 28 Press the MODE button again to select the new Channel setting.
-
Page 14: System Operation
SYSTEM OPERATION Speak into the microphone or play your instrument. If your audio system is properly set and functioning, you should hear the sound of your voice or instrument coming through the loudspeakers. The LEDs on the receiver should also illuminate. The top TX AUDIO LED is red and should only illuminate momentarily when you speak loudly or play your instrument loudly. -
Page 15: Locking The Transmitter Frequency Settings
Locking Transmitter Frequency Settings Refer to Figure 33. Slide the transmitter power switch to the OFF position and wait for the display light to turn off. Hold down the SET button. Slide the power switch back to the ON position. “Fr L” will appear on the transmitter display, indicating that the frequency setting is locked. -
Page 16: Locking The Power On/Off Switch
Locking the Power On/Off Switch Turn the transmitter on by sliding the power switch to the ON position. While holding down the SET button, press and hold the MODE button for four seconds. “Po L” will appear on the display. . -
Page 17: Advanced Receiver Programming (Ulx4P Models Only)
ADVANCED PROGRAMMING MODE (ULXP4 MODELS ONLY) Scanning Frequency Groups Hold down the receiver SET button and press the MODE button once. The words GROUP and SCAN will flash on the display. Refer to Figure 37. FIGURE 37 To begin scanning, rotate the control knob one quarter turn clockwise, as shown in Figure 38. The receiver will automati- cally begin scanning each Channel in all Groups. -
Page 18: Locking The Receiver
Rotate the control knob. The new Squelch setting will appear on the display, as shown in Figure 42. FIGURE 42 To accept the new Squelch value, press the SET button. The display will then return to the Default Mode, press the MODE button again. -
Page 19: Receiver Mounting
RECEIVER INSTALLATION Table Mounting the ULXS4 Standard Receiver To mount a ULXS4 Standard receiver on a table or other horizontal surface, attach the four adhesive bumpers to the bottom corners of the receiver and place the receiver on the mounting surface. See Figure 47. Ñ... -
Page 20: Rack Mounting Dual Ulxp4 Receivers
Rack Mounting Dual ULXP4 Receivers Align the receivers side by side so that the front panels both face the same direction. Place the supplied straddle bars in the recesses on the top and bottom of the receivers, so that the bars overlap both receivers. -
Page 21: Tips For Achieving Optimum Performance
Mount diversity antennas at least 1/4 wave apart. This can be achieved by remote placement of one or both 1/2 wave antennas using Shure UA825, UA850, or UA8100 low loss coaxial cable and a Shure UA830WB Active Remote Anten- na Kit in conjunction with a Shure Antenna Distribution System. For multiple system installations, use the Shure UA844WB Antenna/Power Distribution System. - Page 22 ULX2 Transmitter Input Input Configuration: Unbalanced, active Actual Impedance: 20 k Maximum Input Level: 10 Vp–p (12 dBV) for 1% THD at minimum gain setting using 1 kHz signal. ULX2 Transmitter Output Actual Impedance: Nominal Output Level: 20 mW Maximum Output Level: 30 mW Pin Assignments: Shell = Ground...
-
Page 23: Certification
Canada under RSS-123. Conforms to European ETSI standards ETS 301 489, Parts 1 and 9. The Shure Models ULX1 and ULX2 Transmitters meet the essential requirements of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking. -
Page 24: Furnished Accessories
Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ Ñ *To utilize the UA220 with ULX receivers, refer to the following Application Bulletin at shure.com:... -
Page 25: Battery Life
9V batteries are listed in the tables below. For detailed information on battery performance, contact your dealer or the Shure Service Department at 1-800-516-2525 (7:30 am to 4:00 pm, Central Standard Time). In Eu- rope, call 49-7131-72140;... -
Page 26: Licensing Information
Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classifica- tion and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies. -
Page 27: Limited One-Year Warranty
At its option Shure will repair or replace the defective product and promptly return it to you, or refund the purchase price. - Page 28 SHURE Incorporated Web Address: http://www.shure.com 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 800-257-4873 Fax: 847-866-2279 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 Elsewhere, Phone: 847-866-2200 Fax: 847-866-2585...
