30" (76 CM) FREESTANDING ELECTRIC RANGES

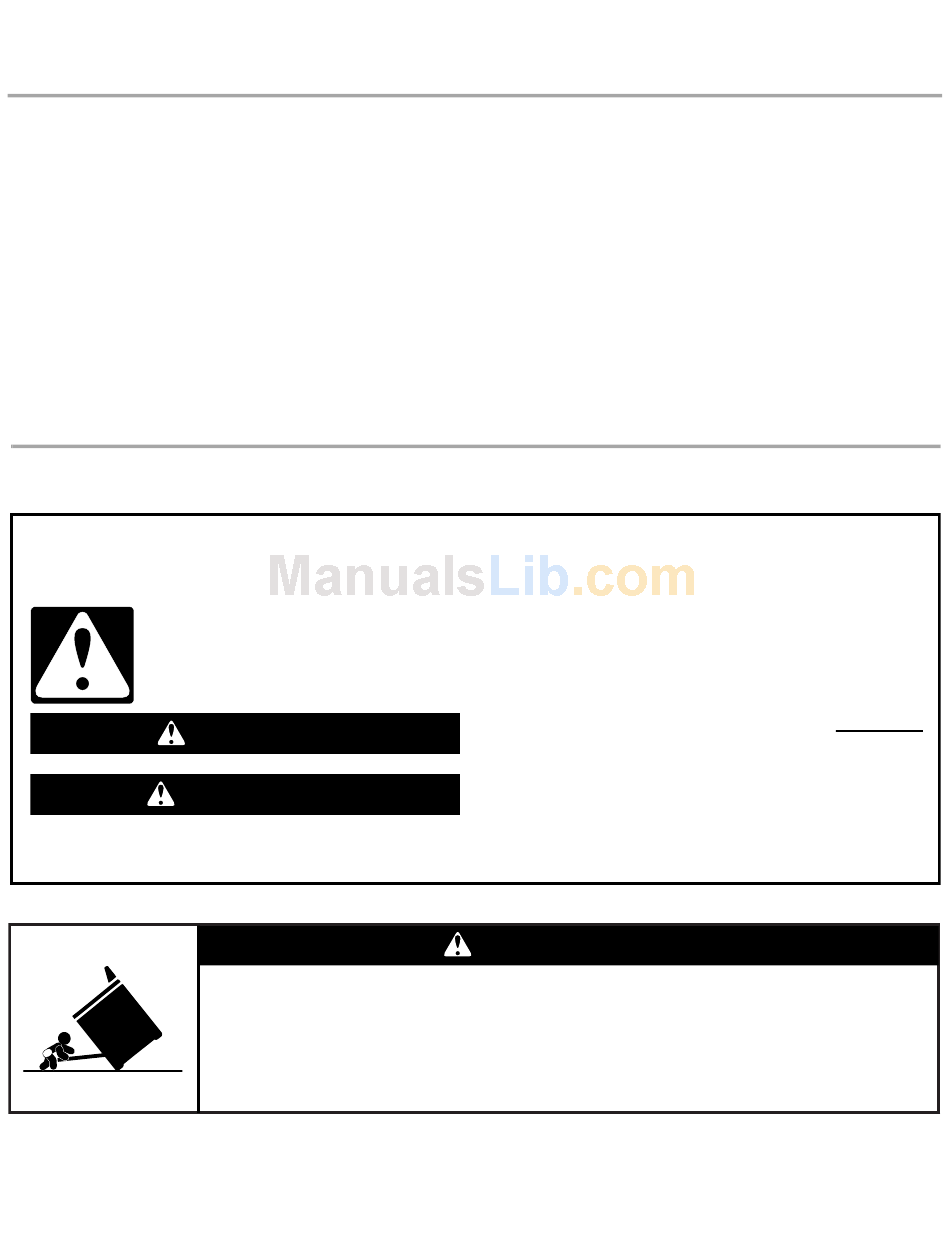

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT:
Save for local electrical inspector's use.
W10196158B
INSTALLATION INSTRUCTIONS
Table of Contents
RANGE SAFETY .............................................................................1
INSTALLATION REQUIREMENTS ................................................2
Tools and Parts ............................................................................2
Location Requirements ................................................................2
Electrical Requirements ..............................................................3
INSTALLATION INSTRUCTIONS ..................................................4
Unpack Range..............................................................................4
Install Anti-Tip Bracket.................................................................5
Electrical Connection ...................................................................6
Verify Anti-Tip Bracket Location ..................................................9
Level Range..................................................................................9
Complete Installation .................................................................10
Moving the Range ......................................................................10
ANTI-TIP BRACKET TEMPLATE ...............................................11
RANGE SAFETY
Your safety and the safety of others are very important.
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death or serious burns to children and adults.
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
WARNING
Tip Over Hazard
Advertisement
Table of Contents
Related Manuals for Amana W10196158B
Summary of Contents for Amana W10196158B
-
Page 1: Table Of Contents
Reconnect the anti-tip bracket, if the range is moved. Failure to follow these instructions can result in death or serious burns to children and adults. IMPORTANT: Save for local electrical inspector's use. W10196158B Table of Contents Tools and Parts ...2 Location Requirements ...2 Electrical Requirements ...3... -
Page 2: Installation Requirements
INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed Tape measure ¼" drive ratchet Flat-blade screwdriver ¼" nut driver Level Hammer wood floors) Hand or electric drill Wrench or pliers masonry drill bit (for... -
Page 3: Electrical Requirements
Product Dimensions A. 27 " (69.9 cm) max. depth with handle B. 46 " (119.1 cm) overall height (max.) with leveling legs screwed all the way in* C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed all the way in* D. -
Page 4: Installation Instructions
Electrical Connection To properly install your range, you must determine the type of electrical connection you will be using and follow the instructions provided for it here. Range must be connected to the proper electrical voltage and frequency as specified on the model/serial number rating plate. -
Page 5: Install Anti-Tip Bracket
4. On Ranges Equipped with Storage Drawers: Remove the storage drawer. Use a ¼" drive ratchet to lower the rear leveling legs one-half turn. Use a wrench or pliers to lower front leveling legs one-half turn. A. ¼" drive ratchet B. -
Page 6: Electrical Connection
9. Move range into its final location making sure rear leveling leg slides into anti-tip bracket. Power Supply Cord WARNING Electrical Shock Hazard Disconnect power before servicing. Use a new 40 amp power supply cord. Plug into a grounded outlet. Failure to follow these instructions can result in death, fire, or electrical shock. - Page 7 Style 2: Direct wire strain relief Remove the knockout as needed for the flexible conduit connection. Assemble a UL listed conduit connector in the opening. A. Removable retaining nut B. Strain relief Tighten strain relief screw against the flexible conduit. 4.
- Page 8 3-wire connection: Power supply cord Use this method only if local codes permit connecting cabinet- ground conductor to neutral wire of power supply cord. 1. Use a ¼" nut driver and remove the hex washer head screws from the aluminum terminal blocks. 2.
-
Page 9: Verify Anti-Tip Bracket Location
3-wire connection: Direct wire Use this method only if local codes permit connecting ground conductor to neutral supply wire. 1. Loosen (do not remove) the hex washer head screws and insert the neutral (white) wire under the screw clamp at the bottom of the center position terminal connector. -
Page 10: Complete Installation
Complete Installation 1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped. 2. Check that you have all of your tools. 3. Dispose of/recycle all packaging materials. 4. -
Page 11: Anti-Tip Bracket Template
ANTI-TIP BRACKET TEMPLATE Cut on dotted lines and place the left edge against the left side cabinet and the top edge against the rear wall. Top edge... - Page 12 W10196158B © 2008. 8/08 All rights reserved. Printed in U.S.A.
