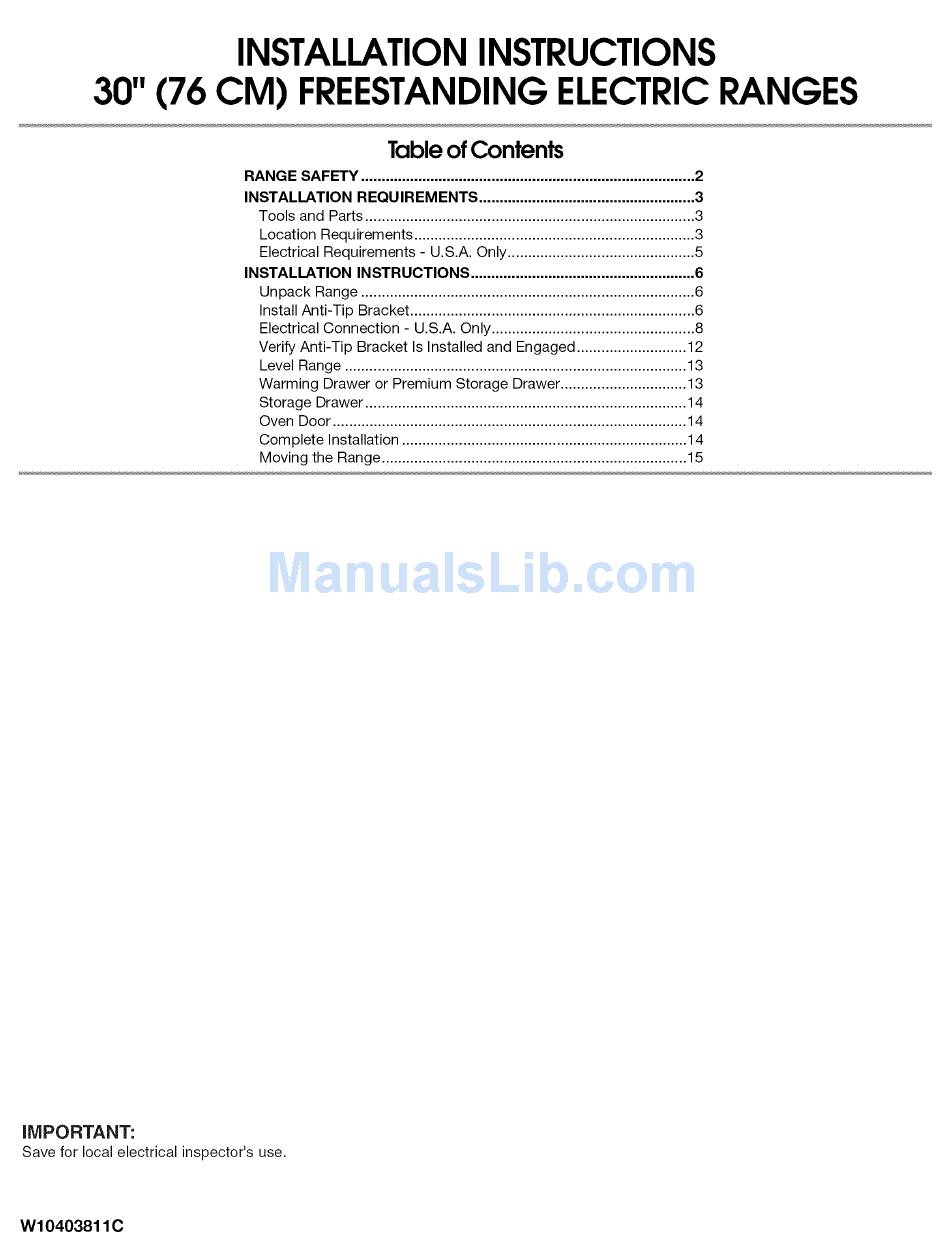

INSTALLATIONINSTRUCTIONS
30" (76 CM) FREESTANDING ELECTRICRANGES
TableofContents
RANGE SAFETY ..................................................................................
2
INSTALLATION REQUIREMENTS .....................................................
3
Tools and Parts .................................................................................
3
Location Requirements .....................................................................
3
Electrical Requirements - U.S.A. Only ..............................................
5
INSTALLATION INSTRUCTIONS .......................................................
6
Unpack Range ..................................................................................
6
Install Anti-Tip Bracket ......................................................................
6
Electrical Connection - U.S.A. Only ..................................................
8
Verify Anti-Tip Bracket Is Installed and Engaged ........................... 12
Level Range ....................................................................................
13
Warming Drawer or Premium Storage Drawer ............................... 13
Storage Drawer ...............................................................................
14
Oven Door .......................................................................................
14
Complete Installation ......................................................................
14
Moving the Range ...........................................................................
15
iMPORTANT:
Save for local electrical inspector's use.
W10403811C
Advertisement
Table of Contents
Related Manuals for Amana ACR3130BAW0
Summary of Contents for Amana ACR3130BAW0
-
Page 1: Table Of Contents
INSTALLATIONINSTRUCTIONS 30" (76 CM) FREESTANDING ELECTRICRANGES TableofContents RANGE SAFETY .................. INSTALLATION REQUIREMENTS ............. Tools and Parts ................. Location Requirements ..............Electrical Requirements - U.S.A. Only ..........INSTALLATION INSTRUCTIONS ............Unpack Range .................. Install Anti-Tip Bracket ..............Electrical Connection - U.S.A. Only ..........Verify Anti-Tip Bracket Is Installed and Engaged ...... -
Page 2: Range Safety
RANGE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER"... -
Page 3: Installation Requirements
INSTALLATION REQUIREMENTS Gather the required tools and parts before starting installation. IMPORTANT: Observe all governing codes and ordinances. Read and follow the instructions provided with any tools listed • It is the installeCs responsibility to comply with installation here. clearances specified on the model/serial rating plate. The Tools needed model/serial rating plate is located on the frame behind a top... - Page 4 Cabinet Dimensions Product Dimensions Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height. IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions dimensional clearances above the cooktop surface.
-
Page 5: Location Requirements
Ifcodes permit and a separate ground w ire isused, i tis • A UL listed conduit connector must be provided at each end recommended thataqualified electrical installer determine that of the power supply cable (at the range and at the junction theground p ath andwire gauge areinaccordance withlocal box). -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS ' ..* Bsn,ge Excessive Weight Hazard Use two or more people to move and install range. Failure to do so can result in back or other injury. Remove shipping materials, tape and film from range. Remove oven racks and parts package from inside oven. Tip Over Hazard Do not remove the shipping base at this time. - Page 7 Floor Mounting 5. Using the Phillips screwdriver, mount anti-tip bracket to the wall or floor with the two #12 x 15/8"screws provided. 6. Move range close enough to opening to allow for final electrical connections. Remove shipping base, cardboard or hardboard from under range.
- Page 8 Direct Wire Power Supply Cord Electrical Shock Hazard Electrical Shock Hazard Disconnect power before servicing. Disconnect power before servicing. Use a new 40 amp power supply cord. Use 8 gauge copper or 6 gauge aluminum wire. Plug into a grounded outlet. Electrically ground range.
-
Page 9: Complete Installation
Style 2: Direct wire strain relief If your home has: And you will be Go to Section: • Remove the knockout as needed for the flexible conduit connecting to: connection. 3-wire direct A circuit breaker 3-wire connection: • Assemble a UL listed conduit connector in the opening. box or fused Direct wire 3/8"... -
Page 10: 3-Wire/4-Wire Connections
4. Use a Phillips screwdriver to connect the green ground wire Use 3/8"nut driver to connect the neutral (white) wire to the from the power supply cord to the range with the ground-link center terminal block post with one of the 10-32 hex nuts. screw and ground-link section. -
Page 11: Bare Wire Torque Specifications
1. Part of metal ground strap must be cut out and removed. Bare Wire Torque Specifications Attaching terminal lugs to the terminal block - 20 Ibs-in. (2.3 N-m) Wire Awg Torque 8 gauge copper 25 Ibs-in. (2.8 N-m) 6 gauge aluminum 35 Ibs-in. -
Page 12: Verify Anti-Tip Bracket Is Installed
Attach terminal lugs to line 2 (red), bare (green) ground, and line 1 (black) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque On Ranges Equipped with a Storage Drawer: Specifications... -
Page 13: Level Range
Repeat steps 1 and 2 to ensure that the range foot is engaged in the anti-tip bracket. If the rear of the range lifts more than 1/2"(1.3 cm) off the floor without resistance, the anti-tip bracket may not be installed (on £ome re.oriels) correctly. -
Page 14: Oven Door
Close the oven door as far as it will shut. Lift the oven door while holding both sides. Continue to push the oven door closed and pull it away from 0_ _'_0_"_ '_';_, Y_" O Ci® S} the oven door frame. The storage drawer can be removed. -
Page 15: Verify Anti-Tip Bracket Is Installed And Engaged
Electrical Shock Hazard Tip Over Hazard A child or adult can tip the range and be killed. Disconnect power before servicing. Install anti-tip bracket to floor or wall per installation Replace all parts and panels before operating. instructions. Failure to do so can result in death or electrical shock. - Page 16 8/12 W10403811C ®/TM @2012 Whirlpool. All rights reserved. Printed in U.S.A.
