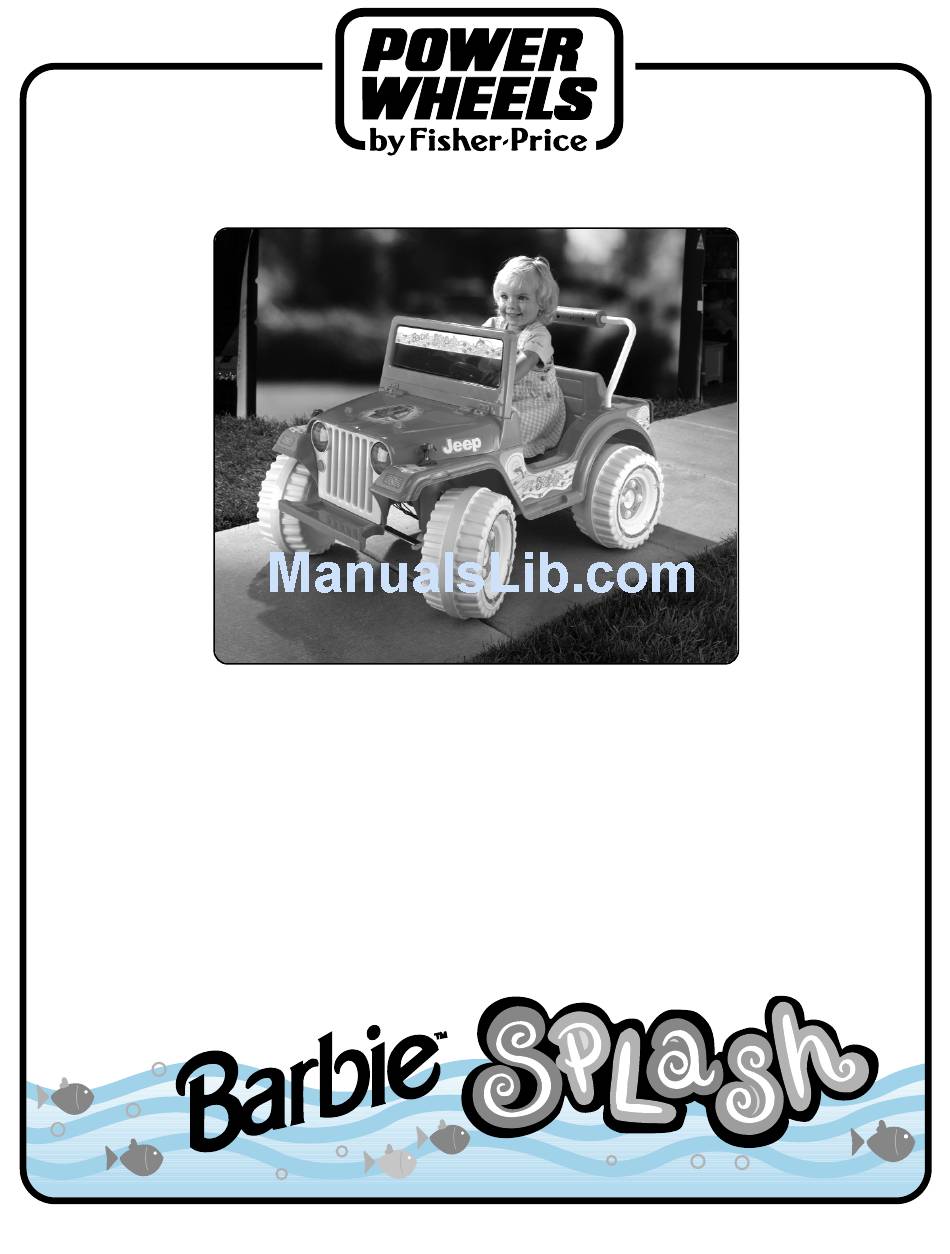

TM
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 74350
Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver, and Safety Scissors.
Use only with a Power Wheels
Type H 6 Volt Battery, a Power Wheels
25 Amp Fuse
®
®
and a Power Wheels
®
Type H 6 Volt Charger (all included).

Advertisement

Table of Contents
loading

Related Manuals for Fisher-Price BARBIE SPLASH 74350

Summary of Contents for Fisher-Price BARBIE SPLASH 74350

  • Page 1 ® Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt. For Model 74350 Tools needed for assembly: Phillips Screwdriver, Hammer, Slotted Screwdriver, and Safety Scissors. Use only with a Power Wheels Type H 6 Volt Battery, a Power Wheels 25 Amp Fuse ®...

  • Page 2: Table Of Contents

    Important Information ..............2 Warnings .

  • Page 3: Warnings

    • Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.

  • Page 4: Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 Parts Key Assembly Small Parts Bag 6-Volt Charger Microphone Radio Dial 25 Amp Fuse - 2* Shifter 6 Volt Battery Steering Wheel Cap Radio Knob - 2 Gas Cap Assembly Not Shown: Label Sheet, Literature Bag Traction Band - 4 #8 x 1"...

  • Page 6: Parts Diagram

    Vehicle Body Steering Column Grille Sport Bar Sport Bar Cover Set Taillight Lens - 2 Taillight Housing - 2 Headlight Lens - 2 Steering Wheel Cap Spark Plug Wires Traction Band - 4 6 Volt Charger Gas Cap Assembly Pretend Engine Cover Parts Diagram Windshield Windshield Frame...

  • Page 7: Battery Charging

    WARNING • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte). Dropping the battery could result in serious injury. • Never allow children to charge the bat- tery. Battery charging must be done by adults only.

  • Page 8: Battery Charging

    25 Amp Fuse GOOD FUSE "BLOWN" FUSE • If you are charging the battery for the first time, insert a 25 amp fuse into the battery. Note: The top of the fuse will not be flush with the top of the battery when properly installed.

  • Page 9: Assembly

    Do not omit any steps. Please set aside at least Vehicle Body Dash • Insert two #8 x 1” screws through the holes in the dash and into the vehicle body. • Tighten the screws with a Phillips screwdriver. Do not over-tighten.
  • Page 10 Steering Wheel • Fit the steering wheel cap into the center of the steering wheel with the screw holes aligned. • Insert two #8 x 1” screws into the holes in the steering wheel cap. • Tighten the screws with a Phillips screwdriver. Do not over-tighten.
  • Page 11 Microphone Plastic • Bend the plastic tip at the end of the microphone cord to form a “T”. • Insert the plastic tip into the small hole in the left side of the vehicle body. Pull gently on the cord to make sure it is secure in the dash.
  • Page 12 Grille • Raise the hood. • Fit the tabs at the bottom of the grille into the slots in the vehicle body. • Press near the top of the grille to snap it into the vehicle body. • Lower the hood. •...
  • Page 13 Seat Rear of Vehicle Hole • With the sport bar positioned to angle towards the rear of the vehicle, fit the ends of the sport bar in the holes in the vehicle body on either side of the seat. • Press firmly on each side of the sport bar to fit it into the vehicle body.
  • Page 14 Ridge Wheel Bottom View • Turn the vehicle on its side. • Fit a traction band around a wheel. • Slide a slotted screwdriver under the traction band to push the traction band onto the ridge in the center of the wheel.

  • Page 15: Label Decoration

    Proper label application will help to keep the labels looking their best! Keep the following guidelines in mind when applying labels: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 16: Battery Installation/Pretend Engine Assembly

    Battery Installation/Pretend Engine Assembly Hood • Lift the hood. • Place the battery in the battery compartment. Make sure that the battery connector extends toward the motor har- ness connector. Motor Harness Connector • Squeeze the tabs on each side of the motor harness connector.

  • Page 17: Battery Care And Disposal

    Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. If acid is internally ingested, give water, milk of magne- sia or egg whites immediately.

  • Page 18: Rules For Safe Driving

    WARNING • Adult supervision is required. Children do not have the judgement necessary to avoid many accidents. Be sure that children operating this vehicle can do so safely and that they are supervised at all times. • Never use near steps, driveways, steep inclines, roadways, alleys, swimming pool areas or other bodies of water.

  • Page 19: How To Operate Your Vehicle

    How to Operate Your Vehicle To Drive • Push the top button (FWD) on the FORWARD/REVERSE switch to drive forward • Press down on the foot pedal forward at a maximum of 2 • Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving forward.

  • Page 20: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels the Authorized Service Center list beginning on page 24.

  • Page 21: Problems And Solutions Guide

    Problems and Solutions Guide Problem Vehicle was running but Loose wire or loose connectors suddenly stopped Wrong type or improperly installed fuse Blown fuse Vehicle is overloaded Driving conditions are too stressful Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge...
  • Page 22 Problems and Solutions Guide Problem Vehicle runs sluggishly Undercharged battery Battery needs charging Wrong type or improperly installed fuse Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle doesn’t Loose wire or loose connectors run but other times it does Motor or electrical switch damage...
  • Page 23 Problems and Solutions Guide Problem Vehicle constantly blows fuses Wrong type of fuse used Child is switching between FORWARD and REVERSE without stopping. Loud clacking or grinding Broken gears noise from a motor-gearbox Charger gets warm during use It is normal for some chargers to get warm during use and is not reason for concern.

  • Page 24: Statement Of Limited Warranty

    Statement of Limited Warranty 90-day limited warranty for the Power Wheels Ride-On Toy Vehicle ® A 6-month battery warranty applying only to the 6 volt battery which was included by Power Wheels ® , with the Power Wheels vehicle when originally purchased. This limited warranty covers the Power Wheels ride-on vehicle and the 6 volt battery, purchased from Power Wheels...
  • Page 25 WEST LOS ANGELES - California Electric Service Center, 2314 S. Westwood Blvd., 90064, (310) 475-2532 YUCAIPA - Aire-Rite Heating & A/C, 34724 Yucaipa Blvd., 92399, (909) 797-2788 COLORADO COLORADO SPRINGS - Nelson Appliance Repair, Inc., 1220 E. Fillmore, 80907, (719) 635-1928, (800) 291-8010 DENVER - Appliance Service, 4262 Lowell Blvd., 80211, (303) 458-1109, (800) 631-0941 (CO, WY only) DENVER (ENGLEWOOD) - Appliance Service, 3932...
  • Page 26 TANEYTOWN - MacHenry Services, 68 Frederick Street, 21787, (410) 756-6659, (800) 276-1301 WASHINGTON D.C. (BELTSVILLE) - Philips Consumer Electronics, 10800 Rhode Island Avenue, 20705, (301) 595-5330, (800) 438-9647 MASSACHUSETTS BOSTON (MEDFIELD) - Wills Hardware, 5 Janes Avenue, 02052, (508) 359-4381 BOSTON (WALTHAM) - Suburban Appliance Service Center, Inc., 271 Moody Street, 02154, (617) 893-6694 LOWELL - Lowell Appliance Service Center, Inc., 564...
  • Page 27 STRYKER - Short’s Hardware, 115 N. Depot Street, 43557, (419) 682-4231 TOLEDO - Broadway Sales and Appliance Repair, 1621 Broadway, 43609, (419) 241-9731, (800) 436-5415 YOUNGSTOWN - O’Connor’s, 3224 Market Street, 44507, (330) 782-4705 OKLAHOMA OKLAHOMA CITY - Brand Service Center, 538 N.
  • Page 28 © CHRYSLER CORPORATION 1998. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A. ©1998 Mattel, Inc. - All Rights Reserved. Fisher-Price and Power Wheels are U.S. trademarks of Mattel, Inc. Printed in the U.S.A. 74350-0920...
