RuggedBackbone™ RX1510
Installation Guide
RuggedBackbone™ Modules
The RX1510 chassis provides six module slots. Each slot accommodates a particular type of RuggedCom
module.

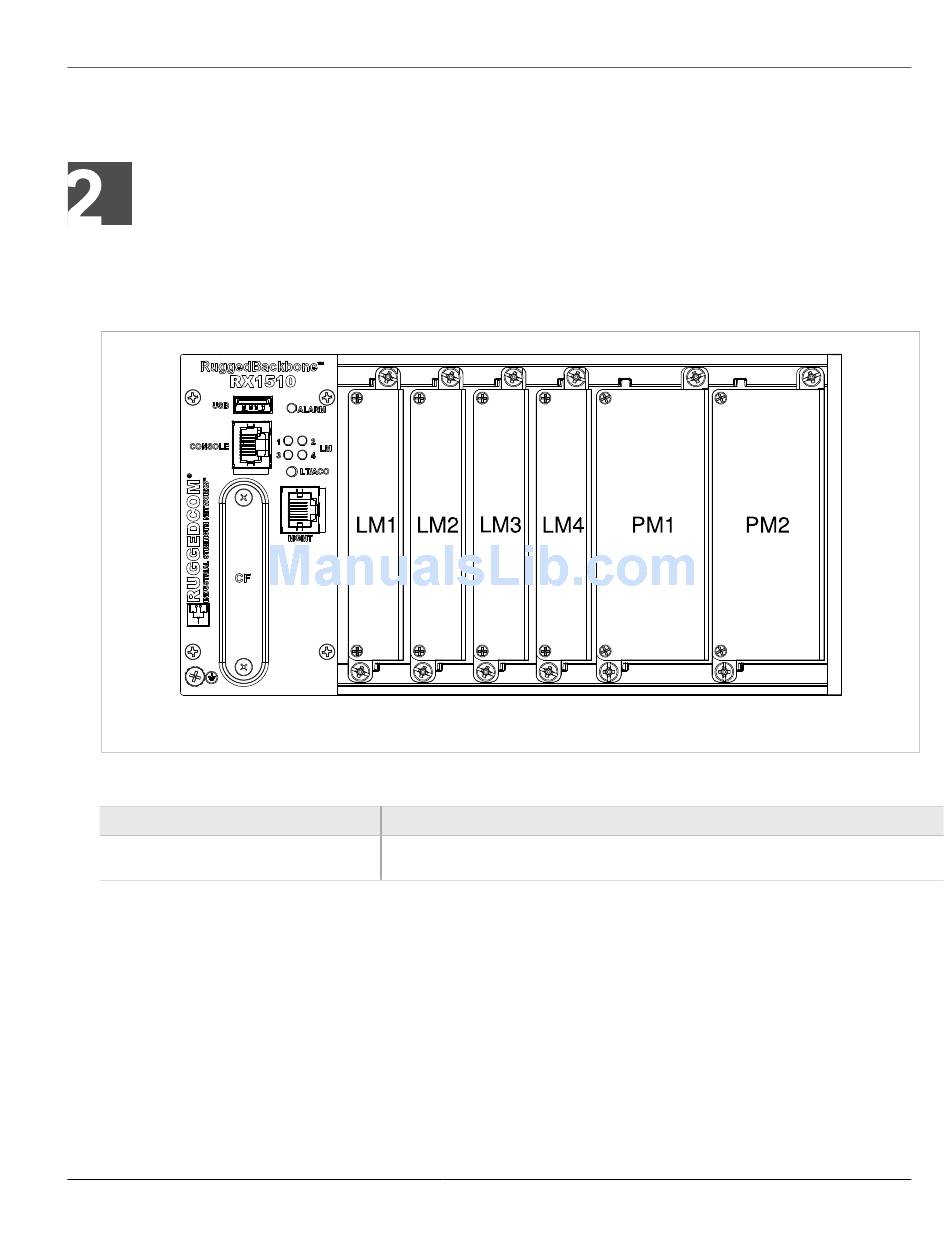

Figure 1, "Chassis Slot Assignment"
Figure 1: Chassis Slot Assignment
The RX1510 chassis supports the following modules:
Parameter
LM1 through LM4
All modules are built to the RuggedRated™ specifications of the RuggedBackbone™ RX1510. Each module type
is described in the following sections.
Section 2.1
Installing a Module
To install a module into the RuggedBackbone™ chassis, align the module guide ribs with the channels on
the chassis. Push the module in as far as it will go, being sure to push through the resistance provided by the
grounding springs. When properly seated, the module flange will rest on the main chassis frame. Tighten the
thumbscrews using finger strength only.
Installing a Module
shows the module slots on the RX1510.
Description
The RX1510 chassis supports up to four line module (LM) cards. For more information on line
modules, see
Section 2.3, "Line Modules
RuggedBackbone™ Modules
(LM)".
Chapter 2
5
