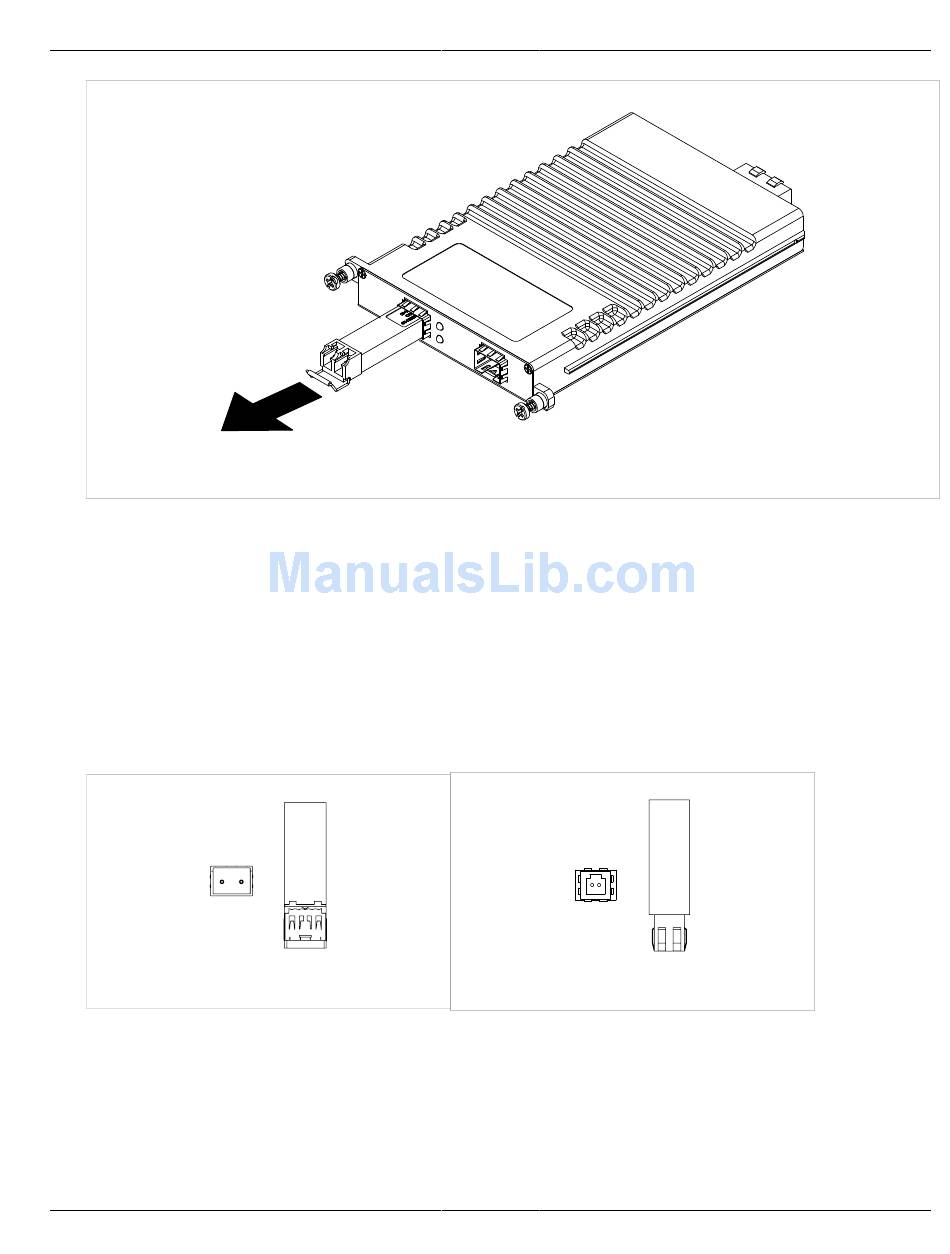

Figure 57: SFP module removal
Section 3.12
Fiber Ethernet Ports
Depending on the order code of the product, the RuggedBackbone™ RX1510 can be equipped with several
different types of fiber optic ports. The Transmit (TX) and Receive (RX) connections of each port must be properly
connected and matched for proper link establishment and operation. The drawings in the following figures show a
side and top view of each supported fiber optic connector type to assist in identifying the proper cable connection
orientation.
Table 12: Available Fiber Connector Types
Tx
Figure 58: LC
Fiber Ethernet Ports
Rx
Figure 59: MTRJ
Chapter 3
Installation
29
