Roomba Customer Support Booklet

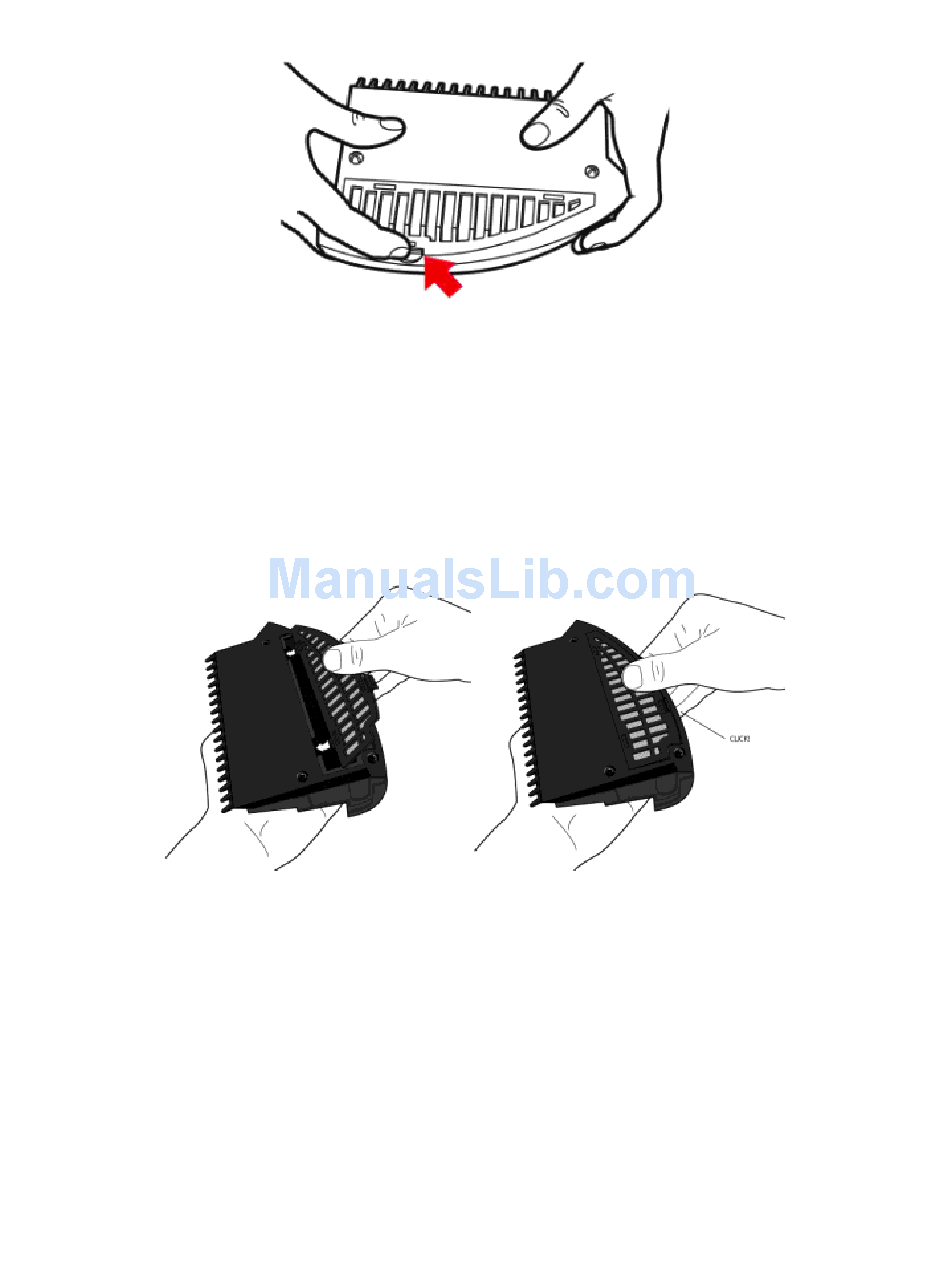

Figure 2: Accessing the Filter Chamber. Open the Filter Door on the bottom
of the Particle Bin by releasing the small Tab on the Filter Door as shown
and pulling the Tab upward. Clean the debris from this chamber and clear
off the Filter (located in the Door) each time you empty the Particle Bin.
3. Empty debris from the Filter Chamber into a trash receptacle.
4. To reinstall the Filter Door, slide the Filter Door into place (Figure
3a). The Filter Door will click when it reattaches itself to the Particle
Bin (Figure 3b).
Figure 3a-b: Reinstall the Filter Door into the underside of the Particle Bin
by gliding the Filter Door into grooves (Figure 3a), and snap the Filter Door
into place (Figure 3b).
5. To reinstall the Particle Bin, slide it back into Roomba. The
Particle Bin will click when it is properly seated.
NOTE: Always carry Roomba by its handle and never tilt it forward, as debris
may spill out of the particle bin.
