Tested by:
918-354a
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

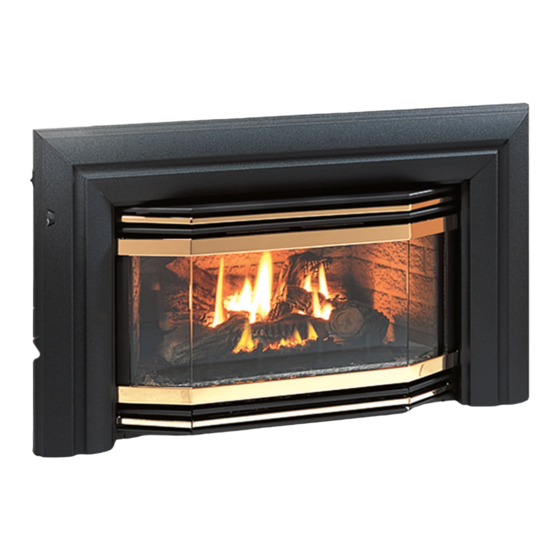

E21 Gas Insert
MODELS: E21-NG1 Natural Gas E21-LP1 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fi re.com
Owners &
Installation Manual
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you
cannot reach your gas
supplier, call the fi re department.
10/25/05
Advertisement
Table of Contents
Related Manuals for Regency E21-LP1
Summary of Contents for Regency E21-LP1
- Page 1 E21 Gas Insert Owners & Installation Manual MODELS: E21-NG1 Natural Gas E21-LP1 Propane WARNING: FOR YOUR SAFETY If the information in these instructions are not followed exactly, What to do if you smell gas: a fi re or explosion may result causing property damage, Do not try to light any appliance personal injury or loss of life.
- Page 2 The Regency Gas Fireplace Series has been designed to provide you with all the warmth and charm of a fi replace, at the fl ick of a switch. The models E21-NG1 and E21-LP1 of this series have been approved by Warnock Hersey for safety. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow.
-
Page 3: Table Of Contents
Flush Louvers ..............13 Warranty ..............31 Bay Front ..............14 Bay Louvers ..............14 Conversion Kit from Natural Gas to Propane ....15 Full Screen Front ............17 Remote Control ............19 Remote Wall Switch ............19 Wall Thermostat ............19 Final Check ..............20 Regency E21 Gas Fireplace Insert... -
Page 4: Safety Label
SAFETY LABEL This is a copy of the label that accompanies Note: Regency units are constantly being each Regency Gas Insert. We have printed improved. Check the label on the unit a copy of the contents here for your review. -
Page 5: Before You Start
AS THE APPLIANCE. 12) Wear gloves and safety glasses for protection while doing required maintenance. The Regency Gas Fireplace must be installed C L O T H I N G O T H E R in accordance with these instructions. Carefully... -
Page 6: Policy For Factory Built Fireplaces
1) Locate appliance, check Clearances to Diagram shows the minimum fi replace opening FIREPLACES Combustibles, page 7. required to be able to install the Regency gas fi replace insert. 2) Make gas and electrical connections, page The Regency E21 may be installed and vented 8. -
Page 7: Clearances To Combustibles
14 inches (356mm) 14 inches (356mm). The minimum combustible board. height from the top of the louver to the ceiling is 36 inches (914mm) 36 inches (914mm). See diagram. Regency E21 Gas Fireplace Insert... -
Page 8: Gas Connection
0-4500 ft. existing chimney system, thoroughly clean this appliance. the masonry fi replace that has been chosen for the Regency Gas Fireplace. Burner Inlet Orifi ce Sizes: The gas connection is a 3/8" NPT accessible on Natural Gas Propane the left side of the unit. The gas line connection... -
Page 9: Wiring Diagram
INSTALLATION WIRING DIAGRAM FOR THE E21-NG1 AND E21-LP1 Caution: Ensure that the wires do This heater does not require a 120V A.C. supply codes the current CSA C22.1 (in Canada) or for operation. In case of a power failure, the... -
Page 10: Offset Flue Adaptor
fi replaces. and ventilation air available to the room in The Regency Insert incorporates its own internal which it is to be operating. draft hood, so no additional external draft hood is required. Check periodically that the vent is... -
Page 11: Aeration System
fi rst (see diagram for correct Note: Aeration Adjustment should only be positioning), then the two side panels. Slide performed by an authorized Regency the side brick panel into place from the front Installer at the time of installation or of the fi... -
Page 12: Faceplate & Trim
1. Hint: Don't tighten the trim to p u s h the bottom of the faceplate side panels with down. the screws provided. See diagram 1. Regency E21 Gas Fireplace Insert... -
Page 13: Flush Glass
6) Connect the ON/OFF switch wires by taking the black and red wires with the female panel(s) should be done by a qualifi ed ends and connecting them to the ON/OFF service person. Diagram 5 switch. Regency E21 Gas Fireplace Insert... -
Page 14: Flush Louvers
2 screws into the bracket on the bottom of the Bay Front as per diagram 1. NOTE: The top and bottom trim pieces are different. Regency E21 Gas Fireplace Insert... -
Page 15: Conversion Kit From Natural Gas To Propane
10) Remove burner orifi ce with 1/2" wrench. Use another wrench to hold onto the elbow behind the offi ceReplace with the #54 orifi ce in the Kit. Remove the 2 screws, push Burner Tray to the left, and lift off. Burner Orifi ce Regency E21 Gas Fireplace Insert... - Page 16 Replace yellow "Natural Gas" label with red "Propane" label 18) Check for gas leaks. 19) Check inlet and outlet pressures. 20) Check operation of fl ame control. 21) Check for proper fl ame appearance and glow on logs. Regency E21 Gas Fireplace Insert...
-
Page 17: Full Screen Front
It is held in place by magnets. 2) Lift the unit up slightly and push down on the corners of the Bottom Trim Bracket and slide under unit. Screw Push in Corners Top Frame Bottom Trim Bracket Regency E21 Gas Fireplace Insert... - Page 18 Hold the door at a 45 degree angle to avoid scratching the faceplate. Hinge 6) Place Bottom Frame near hinge. Flip hinge over Bottom Frame and secure with 3 screws each. Screen Door Hinge Location Bottom Frame 8) Close screen doors. Regency E21 Gas Fireplace Insert...
-
Page 19: Remote Control
REMOTE CONTROL WALL SWITCH WALL THERMOSTAT Use the Regency Remote Control Kit approved 1) Run the wire through the right or left side A wall thermostat may be installed if desired, for this unit. Use of other systems may void inlet opening. -
Page 20: Final Check
If the pilot does not remain glass heats up. lit, repeat operation allowing a longer period before releasing gas control knob. DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE. Regency E21 Gas Fireplace Insert... -
Page 21: Copy Of Lighting Plate Instructions
1) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force. 2) Turn off all electric power to the appliance if service is to be performed. 918-048a DO NOT REMOVE THIS INSTRUCTION PLATE Regency E21 Gas Fireplace Insert... -
Page 22: Automatic Convection Fan Operation
Blower: logs. The pilot light generates enough heat to person. Regency gas appliances use high tech blowers burn someone. If for any reason a log should to push heated air farther into the room. It is not need replacement, you must use the proper 4) The appliance and venting system must be unusual for the fan to make a "whirring"... -
Page 23: Door Glass Replacement
ASSEMBLY wall., and lift out. REPLACEMENT 1) Disconnect the power. Your Regency stove is supplied with high 2) Shut off the gas. temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will 3) Remove top and bottom louvers. -
Page 24: Parts List
Flush Louver (set)-Gold/Black 532-920 Offset Flue Adaptor Kit 532-914 Flush Louver (set)-Steel/Black Top Flush Louver 530-936 Zero Clearance Kit Bottom Flush Louver 918-354 E21 Manual 530-952 Bay Louver (set)-Black *Not available as a replacement part. Regency E21 Gas Fireplace Insert... - Page 25 Pilot Assembly - SIT - 3 fl ame - Propane 904-162 #43 Orifi ce (NG) 904-163 #54 Orifi ce (LP) 402-526 Grate/Diffuse Assembly 532-530 Burner Assembly - NG/LP 532-930 Complete Log Set 533-969 Conversion to Propane Kit *Not available as a replacement part. Regency E21 Gas Fireplace Insert...
- Page 26 400-152 Bay Glass Trim Bottom - Black 402-956 Gold Trim Bay Front 402-958 Steel Trim Bay Front 114) Glass Retainer - Side - Top & Bottom 115) Glass Retainer - Center - Top & Bottom Regency E21 Gas Fireplace Insert...
-
Page 27: Faceplate Assembly
Screw - #8 x 3/4" Pan Head 402-918 Faceplate & Trim (Set) - Zero Clearance Kit-Contour 190) * Screw - #8 x 1/2" Black Self Tapping 199) 948-216 Regency Logo *Not available as a replacement part. Regency E21 Gas Fireplace Insert... - Page 28 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency E21 Gas Fireplace Insert...
- Page 29 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency E21 Gas Fireplace Insert...
- Page 30 NOTES ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ Regency E21 Gas Fireplace Insert...
-
Page 31: Warranty
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect. The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers. - Page 32 Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ Regency and energy are trademarks of FPI Fireplace Products International Ltd. Printed in Canada © Copyright 2005, FPI Fireplace Products International Ltd. All rights reserved.
