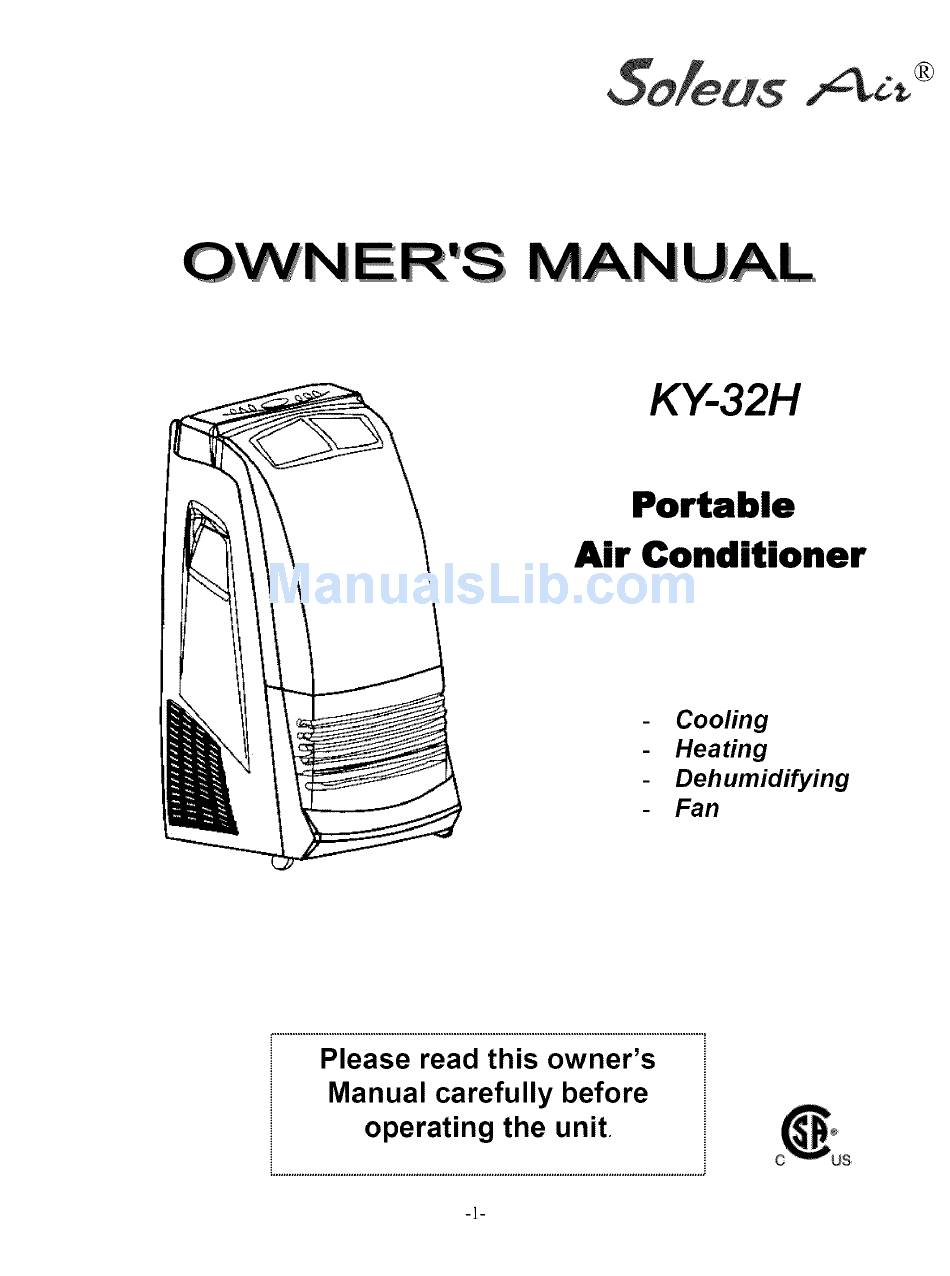

- Page 1 KY-32H Portable Air Conditioner Cooling Heating Dehumidifying Please read this owner's Manual carefully before operating the unit.
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............................IMPORTANT SAFEGUARDS ........................PACKAGE CONTAINS: ..........................NAMES OF PARTS ............................INSTALLATION BEFORE USE ........................CONTROL PANEL AND LCD DISPLAY ...................... CONTROL PANEL FUNCTIONS ......................... OPERATION USING CONTROL PANEL ..................... OPERATION USING REMOTE CONTROLLER ..................CONDENSATE WATER DRAINAGE ...................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Soleus Air KY-32H portable air-conditioner. This unit is designed for improving living and working comfort by providing cooling, heating, dehumidifying and fan functions only with a minimum installation required. With its whisper quite operation and... -
Page 4: Names Of Parts
NAMES OF PARTS Front View control panel upper air outlet handle lower air inlet grille Back View Exhaust Duct Terminal upper air iMet grill with filter _OW_r COIr_ continuous hot air exhaust drainage outlet lower _tir inlet grille water tank... -
Page 5: Installation Before Use
Exhaust Duct Exhaust Duct Unit Terminal Window Kits INSTALLATION BEFORE Condensate Water Tank Float Lid You must install the water tank float lid before first use of the portable air conditioner following these procedures: Hold the water tank and draw it out slowly. Remove water tank float lid and packing material from the water tank. - Page 6 The water tank float lid should be able to move up and down freely after correct installment. Insert the complete water tank back to the air conditioner unit. F_g. 1 c) Exhaust Duct When you use the unit as an air conditioner, the hot exhaust air must be directed out of the room.
-
Page 7: Control Panel And Lcd Display
Mount the window kit extension of the exhaust host onto the window kit. Use screws on the window kit extension if necessary. NOTE: When using the window kit on a window or sliding door it will cause the window or sliding door not to be properly closed and locked. Additional security measurelnents should be taken. -
Page 8: Control Panel Functions
Control Panel Functions Power On/Off Control Starts or Stops the Unit Mode Control Select the functions of the unit for: Fan Mode Air Conditioning Mode Heating Mode Dehumidifying Mode Auto Mode Fan Speed Control Select the fan speed for: High Medium Slow Temperature... -
Page 9: Operation Using Control Panel
number of hours set. (0.5 - 24 hours) Sleep Control Activate sleep mode of the air conditioner. Use the Hr button to set the timer from 1 to 7 hours of operation. In the sleep mode, the air conditioner adjusts the temperature according to the time automatically to save power and keep the room comfortable... - Page 10 optimal comfort. NOTE: During hot days, the unit will cool off the room most efficiently by setting the temperature at the lowest and the fan speed at the highest. Reducing the length of the exhaust duct and insulating the exhaust duct and keeping direct sunlight to a minimum will also improve the cooling efficiency.
-
Page 11: Operation Using Remote Controller
Press the Temperature Button ^ or v until the desired room telnperature appears on the LCD. The temperature ranges from 61 oF-86 ° F (16 °C-30 °C). Select the fan speed by pressing the Fan Speed Button. NOTE: When the unit is running on fan mode, the exhaust duct is inoperative and is not required. - Page 12 REMOTE CONTROLLER MODE KEY I,CD D_SPL_Y TEMP_iRAI URE KEY ,_AN SPEED KEY TtMR '1IMF.}ADJUSTM NT KEY DDi,JMDI YNGKEY TRANSM T_71NGKEY AU'TO MODE KEY ONiOF_: Kt_Y SLEEP NG MODE KEY Set Clock Press On/Off key to turn on the remote controller Press left side (Hour) or right side (Minute) of the Time Adjustment key until the LCD displays the correct time.
- Page 13 Press the Fan Speed key until the LCD displays the desired fan speed. Press the Transmit key. Heating Operation Press the On!Off key to turn on the remote controller Press the Mode key until the LCD displays "HEAT" Press either/\ of V key of the Temperature key until the LCD displays the desired temperature.
-
Page 14: Condensate Water Drainage
Timer Press the On!Off key to turn on the remote controller Press the Timer key. "TIMER" will appear on the LCD display. Press the Time Adjustment key until the LCD displays the desired number of hours for the operation. Press the Transmit key. Sleep Mode Press the On/Off key to turn on the remote controller. - Page 15 If you want to take out the internal tank before it is full of water, please stop the unit first. Wait for 3 minutes before taking out the water tank to prevent the condensate water from discharging into the unit. NOTE: Do not take out the water tank when the unit is running on either cooling, heating or dehumidifying...
-
Page 16: Maintenance
NOTE: Be very careful when using an external water tank. The unit will not shut off automatically when an external water tank is full. Spill water can cause substantial damages to carpet, furniture and other valuables. Do not use lengthy drainage robing without a condensate water pump. -
Page 17: Troubleshooting
Storina the Unit for an Extended Period of Time Ensure that the water tank is empty. Unplug the unit. Remove the stopper from the internal water drain piping (Black Pipe) inside the water tank compartment and drain the water from the pipe. Reinsert the stopper back to the black drainpipe. -
Page 18: Technical Specifications
LCDwindowshow "E1" Power s upply is unstable Turn off the unit and wait for ten minutes before restart. Call for technical support if the "E 1" persists. TECHNICAL SPECIFICATIONS KY-32H MODEL COOLING CAPACITY 12,000 BTU/H HEATING 6,000 BTU/H DEHUMIDIFYING CAPACITY... -
Page 19: Contact Information
CONTACT INFORMATION Contact For Optional and Spare Parts Technical Support Warranty Claim Customer Service Soleus International Inc. 9451 Telstar Ave. E1 Monte, CA 91731 USA (888)8-SOLEUS www. soteusair, coin -19-... -
Page 20: Warranty
WARRANTY ONE YEAR HMITED WARRANTY Soleus International Inc. warrants the accompanying Soleus Air KY-32H Mobile Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States or Canada.
