Summary of Contents for Soleus Air KY-120HP

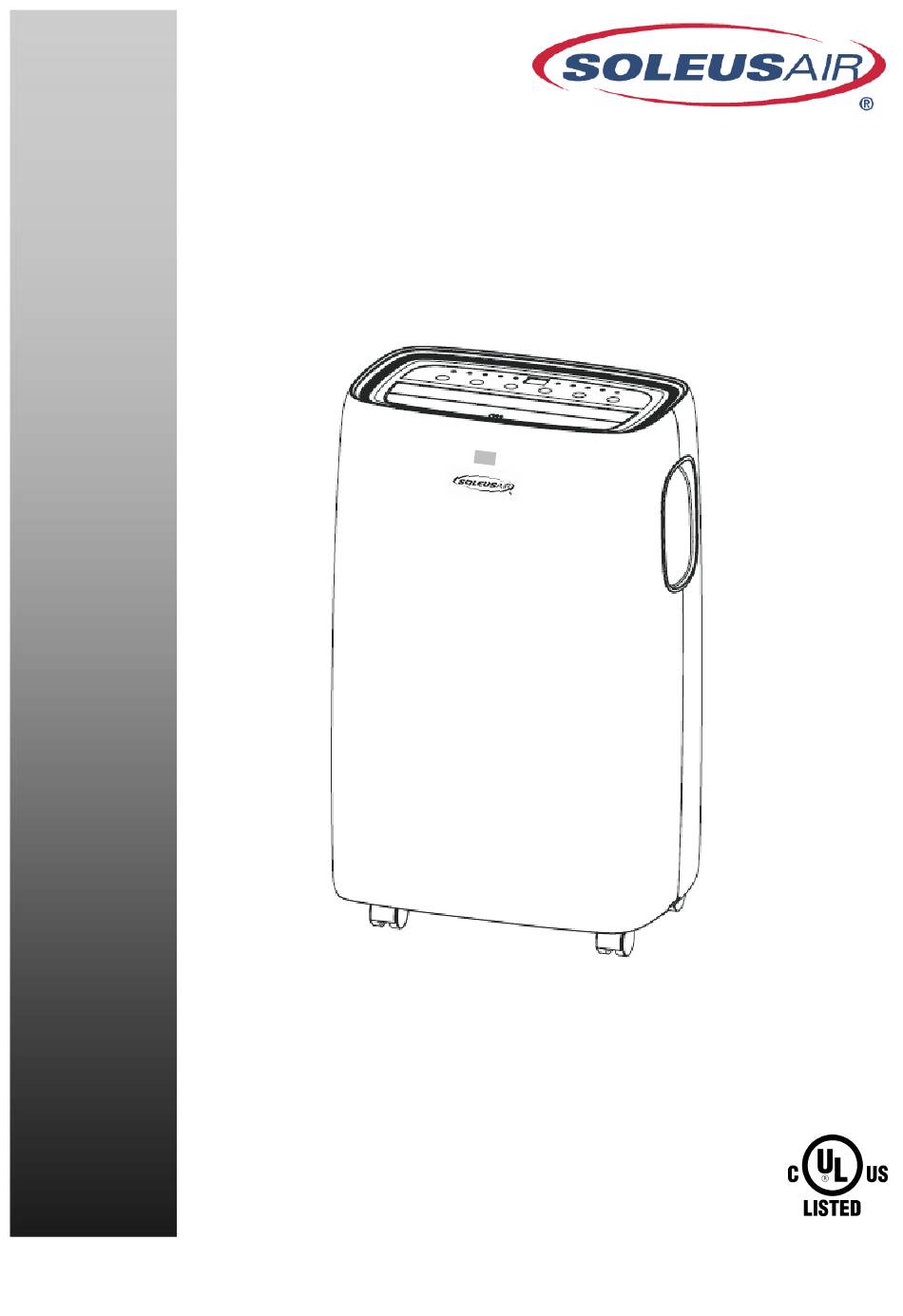

- Page 1 12,000 BTU Portable Air Conditioner with Heat Pump Operating Instructions V190102...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Specifications
These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. KY-120HP Model Number Cooling Capacity 12,000 BTU... -
Page 4: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side. The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the nominal current leakage between the cord shield and either load conductor exceeds a predetermined value. -
Page 5: Led Light
ALTERNATIVE LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side. -
Page 6: Product Diagram
PRODUCT DIAGRAM... -
Page 7: Parts & Assembly
PARTS & ASSEMBLY PARTS ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the unit draws in indoor air and exhausts hot air out of the room to complete the air exchange. When the unit is operating in fan mode no outdoor air exchange takes place. -
Page 8: Window Kit Installation
NOT use an extension cord with your Portable Air Conditioner. Note: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for Soleus Air single hose Portable Air Conditioners. - Page 9 WINDOW KIT ASSEMBLY GUIDE SCREW PANEL SCREW 1.Parts: A) Panel B) Panel with one exhaust hose opening C) Panel without exhaust hose opening D) Pins to lock window kit in place 2. Assembly: Slide Panel B and C into Panel A and size to window width. Windows sizes vary.
-
Page 10: Control Panel Buttons
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL OPERATING INSTRUCTIONS CONTROL PANEL BUTTONS 1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off. 2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Air Conditioner mode, Dehumidifier mode, Heat mode, Fan only mode, and Auto mode. -
Page 11: Remote Control
OPERATING THE UNIT USING THE REMOTE CONTROL OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL LCD DISPLAY POWER BUTTON MODE BUTTON TIMER/TEMP INCREASE TIMER BUTTON TIMER/TEMP DECREASE SLEEP BUTTON FAN SPEED °C /°F BUTTON SWING BUTTON THIS BUTTON DOES NOT HAVE A FUNCTION... -
Page 12: Sleep Mode
REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - If the unit is already on, press the POWER button on the remote while pointing the remote away from the unit. This will turn the remote on. If the unit is off, now press the POWER button once to manually turn the unit on. -
Page 13: Operating The Unit
OPERATING THE UNIT Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button. 4) Press the MODE button until the air conditioner mode indicator lights up on the control panel display. 5) Press the ▲... - Page 14 Fan Mode 1) Plug the Power Cord into an electrical outlet. 2) Turn on the unit by pressing the POWER button on the control panel. 3) Press the MODE button until the fan mode indicator lights up on the control panel display. 4) Select the fan speed by pressing the FAN button.
-
Page 15: Condensate Evaporation
CONDENSATE EVAPORATION Condensate Holding Tank When the room temperature is low, and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in a condensate tank inside the unit. -
Page 16: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION • Plug unit in. • Unit is not plugged in. • Check electric breaker box for a Air conditioner does not • No electric current to outlet. trip. power on • Internal safety device has tripped. •... -
Page 18: Self-Diagnosis
SELF-DIAGNOSIS SYSTEM MALFUNCTION CODES SELF-DIAGNOSIS The unit has a self-diagnosis system to identify t h e malfunctions. Error code w i l l display on the appliance display. DISPLAYED, WHAT SHOULD The appliance fitted with a frost protection device avoid excessive formation of ice. -
Page 19: This Warranty Does Not Cover
WARRANTY One Year Limited Warranty SoleusAir West warrants the accompanying Soleus Air Portable Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
