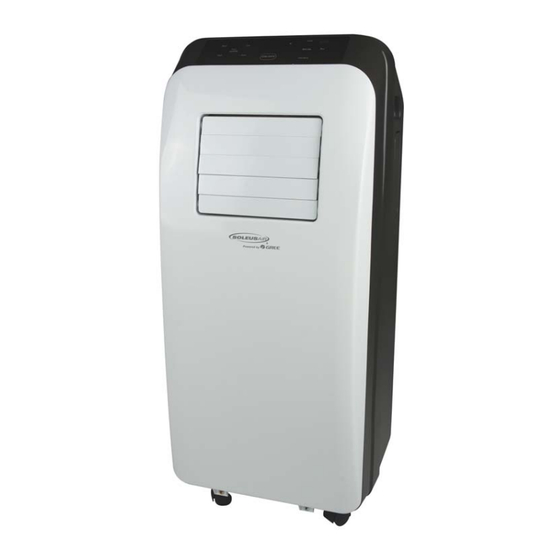

- Page 1 Model No. SG-PAC-10E2 (KY-101) 10,000 BTU Portable Air Conditioner Operating Instructions V.121010...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Powered by Gree Portable Air Conditioner. This owner’s man- ual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Portable Air Conditioner. -
Page 3: Lcdi Power Cord And Plug
If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Powered by Gree Customer Service for trou- bleshooting recommendations. -
Page 4: Parts Included
INCLUDE INCLUDE PARTS INCLUDED Window Exhaust Adapter A Window Exhaust Adapter B Exhaust Hose Window Exhaust Adapter C Screw (7 ) Power cord Drain hose Hose Clamp Adjustable Window Slider (3) h o o k ( 2 ) Battery (2 ) Remote control Hose clip(2) Rubber plug... - Page 5 STRUCTURE Front 1, Control panel and display light 2, Remote control signal receiver window 3, Handle 4, Remote controller box 5, Air outlet 6, Vertical louvers 7, Horizontal louvers 8, Wheel 9, Air inlet 10, Grille 11, Air outlet 12,Air inlet 13,Power cord hook 14, Power cord 15, Window exhaust adapter A...
-
Page 6: Package Contents
These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. SG-PAC-10E2 Model Number KY-101... -
Page 7: Installation Of The Power Cord Hook
INSTALLATION OF THE POWER CORD HOOK Attach the hooks to the back of air conditioner with the screws. • hook screw Wind the power cord around the power cord hooks. •... -
Page 8: Assembly And Installation
PARTS & WINDOW KIT ASSEMBLY PARTS EXHAUST HOSE & ADAPTERS Exhaust Hose Adapter Exhaust Hose Hose Adapter ASSEMBLY & INSTALLATION INSTALLATION When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed. When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed . - Page 9 SINGLE HOSE WINDOW KIT INSTALLATION This installation is OK The is a poor installation 22” When installing the exhaust hose, try and keep it as flat as possible. The less angles and bends in the hose, the better the unit will perform. If bending or an angle is necessary, use single 90° angles like the pictures above.
-
Page 10: Control Panel And Display
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS CONTROL PANEL & DISPLAY LED window Temperature selection button COOL mode light Receiver window DRY mode light FAN Speed light ON/OFF button FAN mode light MODE button Fan speed button OPERATING INSTRUCTIONS When pressing key is valid, buzzer makes a sound, indicated light indicates relevant state, system will last for 2 seconds. -
Page 12: Remote Control Operating Instructions
REMOTE CONTROL OPERATING INSTRUCTIONS LCD DISPLAY and MODE LABELS NOTE: Heat mode is not available on this unit MODE BUTTON POWER BUTTON TEMP SELECT BUTTONS SWING BUTTON FAN BUTTON (Not Available on this unit) SLEEP BUTTON TIMER BUTTON 1) Power On and Off - Press the ON/OFF (POWER) button once to manually turn the unit on. Press the Power button once more to turn the unit off. - Page 13 REMOTE CONTROL OPERATING INSTRUCTIONS (Cont.) 5) Auto-on Timer: When the air conditioner is off, it can be set to automatically turn on in 30 minutes to 24 hours at the previous set mode and fan setting. To set the Auto-on Timer, press the TIMER button on the unit or remote control. Each touch of the +/- buttons on the remote will change the timer setting in 30 minute increments (.5 hours).
-
Page 14: Draining Collected Water
DRAINING COLLECTED WATER When the temperature or humidity is too high, the air conditioner may not be able to evaporate all of the water as quickly as needed. All moisture that is unable to be evaporated is placed in a small bank up water tank in- side the unit. -
Page 15: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The air conditioner is unplugged or not The Air Conditioner will not start Make sure the air conditioner plug connected well. is pushed completely into the out- Check the house fuse/circuit breaker box and replace the fuse The fuse is blown/circuit breaker is or reset the breaker. - Page 17 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Low Voltage Protection The LCD Display is showing “E5” Unplug for 10 minutes and then turn on the unit. If “E5” is still dis- played, contact customer service. The LCD Display is showing “H8” The backup water tank is full Drain the water tank If the “H8”...
-
Page 18: Warranty
