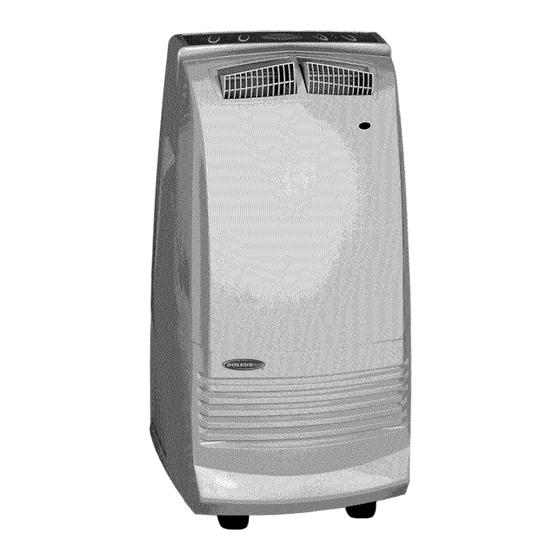

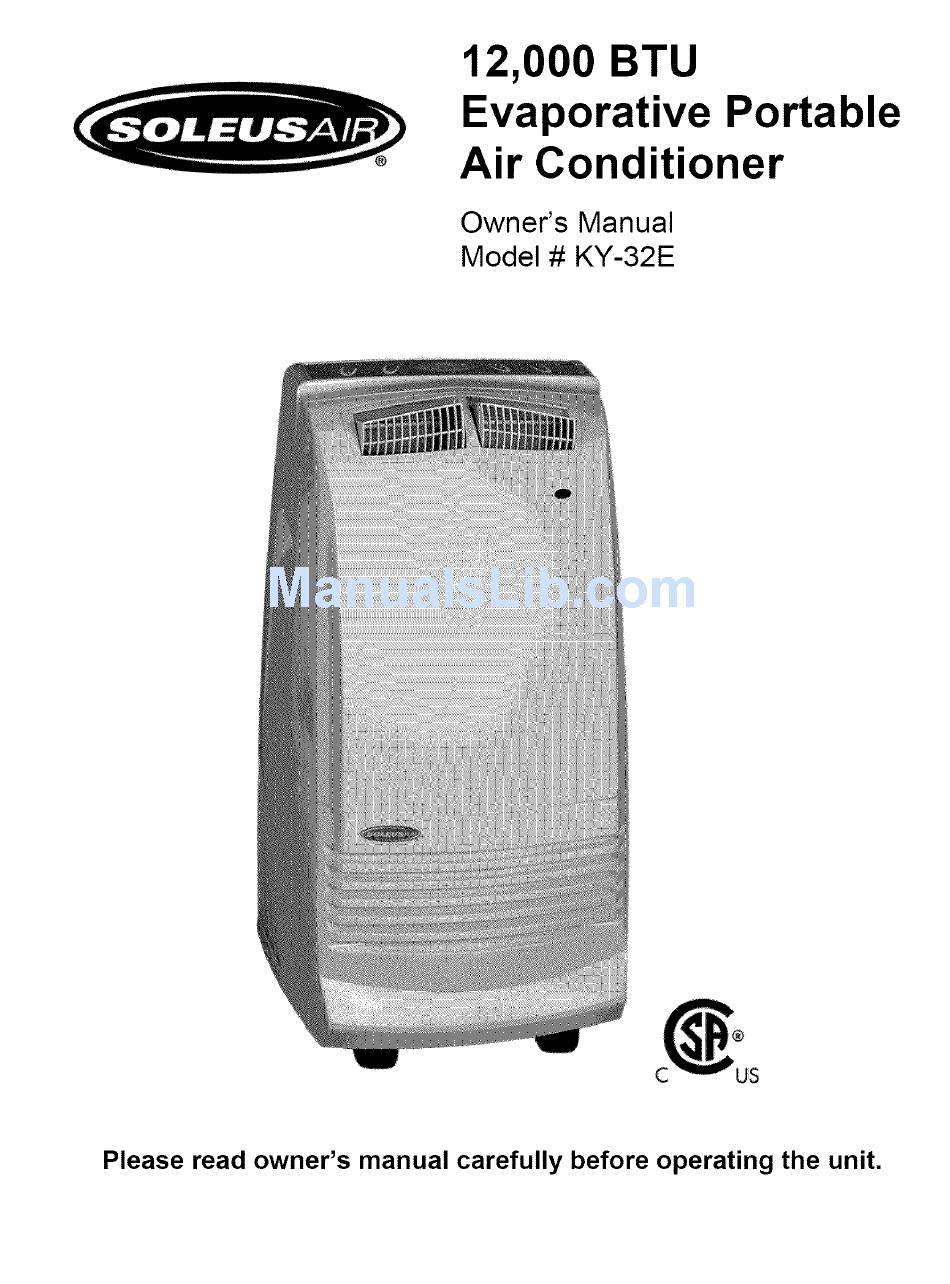

- Page 1 12,000 BTU Evaporative Portable Air Conditioner Owner's Manual Model # KY-32E _® Please read owner's manual carefully before operating the unit.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Table of Contents ....................Introduction ......................Important Safeguards .................... LCDI Power Cord and Plug ..................Package Contents ....................Parts Diagram ...................... Assembly Requirements ..................Control Panel and LCD Screen ................. Operation Using the Control Panel ................Operation Using the Remote Controller ................. -
Page 3: Introduction
The condensate water is evaporated and removed through the exhaust duct along with warm exhaust air. At 12000 BTUs the KY-32E is one of the most powerful portable air conditioners on the market. In addition, the high speed lnotor allows t\_r operation in high temperatures Soleus Air "Smart Chip"... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Before installing and using the portable air conditioner, please read this Owner's manual carefully. 1. Never use or store gasoline or other flammable vapor or liquid near this unit. Maintain at least 20" (50cm) clearance space around all side of the unit. Do not obstruct air inlet or outlet grilles. -
Page 5: Lcdi Power Cord And Plug
3. Press RESET button for use Ifa test is pert\_rmed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 6: Package Contents
PACKAGE CONTENTS Portable Air Conditioner Air Exhaust Duct Exhaust Duct Window Kit Adapter Remote Control AAA Batteries (2) Window Kit - 3 Sliding Panels Window Kit Fastener Screws (4) Continuous Drainage Tube Exhaust Outlet Walt Cover 10. User's Manual PARTS DIAGRAM FRONT VIEW Control Panel Signal Receptor... - Page 7 REAR VIEW Exhaust Duct Upper Air Inlet Grille with Filter Terminal Power Cord Hot Air Exhaust Outlet Lower Air Inlet Grille WINDOW EXHAUST DUCT Window...
-
Page 8: Assembly Requirements
ASSEMBLY REQUIREMENTS EXHAUST DUCT When you use the unit as an air conditioner, the hot exhaust air and evaporated condensate water must be vented out of the room. The exhaust duct and venting kit serves this purpose. NOTE: The exhaust duct and venting kit should not be used while the unit is operated in dehumidification, or tan mode. -
Page 9: Controlpanelandlcdscreen
NOTE: In order to achieve maximum room cooling efficiency, the exhaust duct should remain as short and straight as possible. To further shorten the exhaust hose, first unthread either exhaust duct adapter clockwise to remove it. Then cut the hose to desired length. It is not recommended to increase the lnanufacturer's length of the exhaust hose. - Page 10 CONTROL PANEL FUNCTIONS 1. Power On/Off Control Starts or stops the unit. 2. Temperature Setting Control Select the desired temperature setting by pressing either the • • buttons. It is recommended to set the temperature bel\_re selecting the Mode Control. 3.
-
Page 11: Operation Using The Control Panel
LCD DISPLAY CCOL MODE AUTO MODE TMfR OfqiOF SPFED OPERATION USING THE CONTROL PANEL COOLING OPERATION l. Ensure the exhaust duct properly installed. Refer to page 8 *\)r exhaust duct installation. 2. Plug the Power Cord to the power outlet. 3. -
Page 12: Operation Using The Remote Controller
NOTE: D onotusetheexhaust duct w hen theunitisrunning a tdehumidi_ing mode. Y oumust r elnove the exhaust duct f rom theunit.When the unitisrunning a tdehumidifying mode, thefanspeed c annot be adjusted. Keep thewindows a nd the doors c losed t oaidtheefficiency ofthe unitinremoving the moisture fromthe room. - Page 13 SETTING THE CLOCK 1. Press 1/0 button to turn on the remote control. 2. Press the Hr and Min buttons until the LCD displays the correct time. 3. Press the Send button to set time. COOLING OPERATION 1. Press the 1/0 button to turn on the remote control. 2.
-
Page 14: Optional Water Drainage
OPTIONAL WATER DRAINAGE When operating the air conditioner in cooling or dehulnidifying mode under normal conditions, the condensation water is automatically evaporated fioln an internal drip pan out through the exhaust duct. Under extrelnely high humidity conditions, the water in the drip pan may reach a level that triggers a shut-offmechanism. The compressor and fan will mm offand the water must be drained via one of the t\_ltowing two methods. -
Page 15: Proper Care And Maintenance
MANUAL DRAINAGE When theunitisoperating inmanual drainage mode, excess condensation inthedrippan will riseuntilit reaches a predetermined level, a twhich time theairconditioner will signal awarning ( E4onLCD)and shut o f£ Todrain the excess condensation, turnofftheairconditioner, remove t hedrain plugand allow water t odripintoanexternal pan ordrainage tubing. -
Page 16: Troubleshooting
CASE 1. Avoid direct exposure to sunlight as case color may fade. 2. Clean surface area with a damp cloth. Dry with a soft towel. 3. Vacuum grill inlets with a soft brush attachment. NOTE: Do not use abrasive cleaning products on the case. STORING THE UNIT FOR AN EXTENDED PERIOD OF TIME OR TRANSPORTING 1. -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL KY-32E COOLING CAPACITY 12,000 BTU/HR DEHUMIDIFYING CAPACITY 95 PINTS/DAY 1300 W POWER COOLING AIR FLOW VOLUME 170 CFM ll5V/60HZ POWER SOURCE 12 AMP COOLING SOUND PRESSURE LEVEL <56 db(A) OPERATING TEMP 61 F -95 F NET WEIGHT... -
Page 18: Warranty
United States or Canada. If the air conditioner exhibits a defect in normal use, Soleus Air International Inc. will, at its option, either repair or replace it, free of charge within a reasonable time after the air conditioner is returned during the warranty period.
