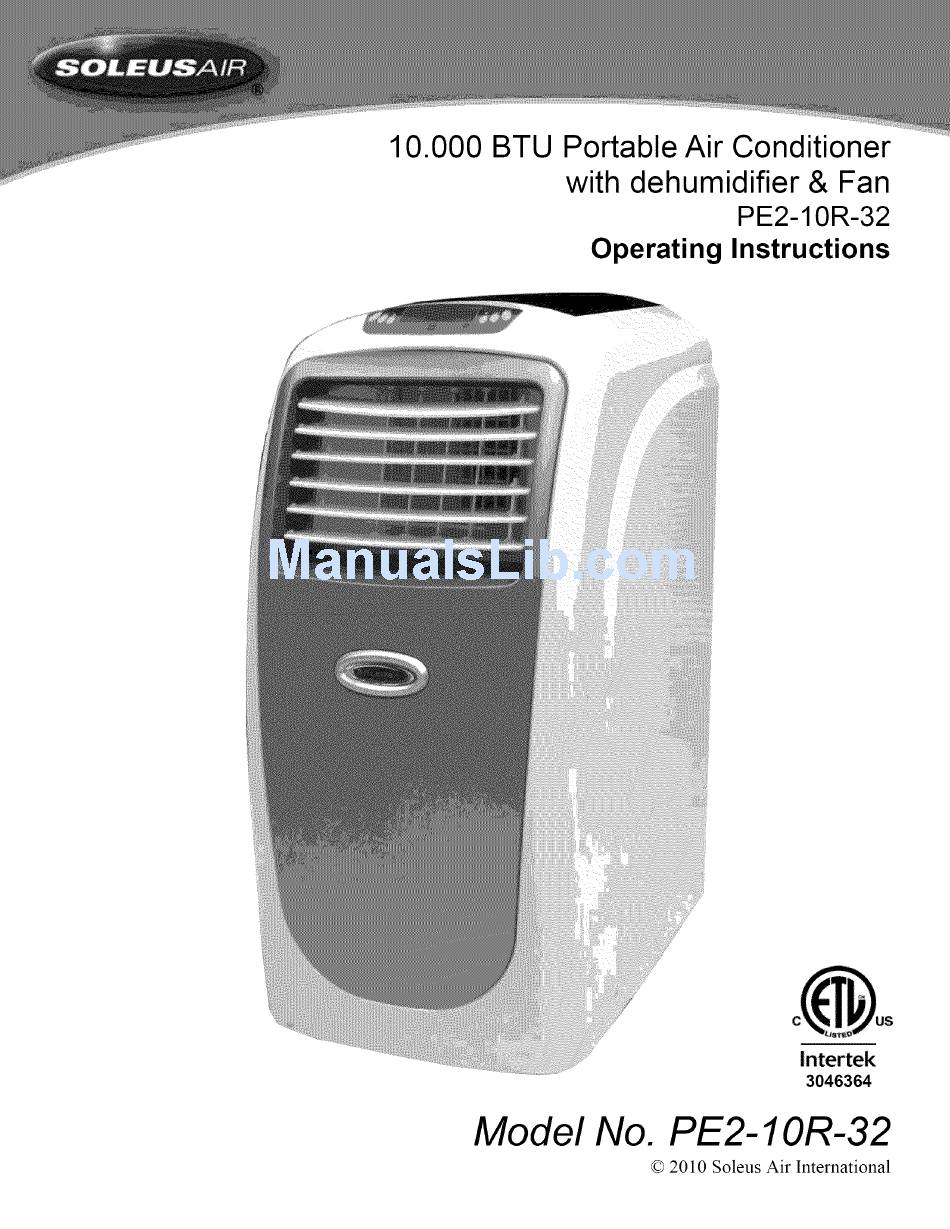

- Page 1 10.000 BTU Portable Air Conditioner with dehumidifier & Fan PE2-10R-32 Operating Instructions 3046364 Model No. PE2-10R-32 © 2010 Soleus Air International...
- Page 2 Thank you for choosing a Soleus Air Portable Air Conditioner. This owner's manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions...
- Page 3 These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. • If the environment telnperamre is higher than the max operating temperature or lower than the lninilnuln operating temperature, the air conditioner may not work properly. MODEL PE2-10R-32 Cooling Capacity 10,000 BTU/Hr Dehumidifying...
- Page 4 3. Press RESET button for use If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. RESET TEST WARNING: 1.
- Page 5 DIAGRAM PRODUCT (Actual product design may differ slightly from images below) FRONT A. Controlpanel B.Verticalair louvers C. Air outlet D. Horizontal a ir louvers E.Casters F. PowerCord & Plug BACK A, Hotair outletgrill B, Lowerair inlet grill ..ACCESSORIES _"_% Drain tube Drain pan Flexibleexhausthose with 2 adapters •...
- Page 6 INSTALLATION SELECTING THE LOCATION Placethe unit in a flat locationwheretheair out- lets are not obstructed.Placethe unitat least 20"(50cm)awayfrom a wall or otherobstacle. MOUNTING THE EXHAUST HOSE Slidethe squareend of the exhaustduct overthe hotair outleton the back of the unit. Theexhaust h oseshouldbe kept as shortand straightas possible.Preventany sharpbendsin Exhaust Hose...
- Page 7 WINDOW KIT INSTALLATION HORIZONTAL WINDOW WINDOW KIT INSTALLATION Thewindowkit is designedto fit into moststandard verticaland horizontal w indows,as wellas some slidingglassdoors. However, i t maybe necessary to modifysomeaspectsof theinstallationprocessfor certainwindowtypes. Open thewindowor slidingdoor andadjust the lengthof thewindowkit tofit the opening.If the windowkit is notlong enough,connecttheextra Window Slider...
- Page 8 NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for all Soleus Air single hose portable air conditioners. - The heating function is not available on this unit.
- Page 9 CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL & MULTI-COLOR DISPLAY MODE BUTTON FAN SPEED SWING TIMER BUTTON INCREASETEMP&TIMER POWER BUTTON DECREASETEMP &TIMER MUL TI-COL OR DISPLA Y AU_I'O TIMER ON TIMER OFF FAN SPEED TEMP AND -TIMER INDICATOR OSCILLATION ON/OFF COMPRESSOR ON/OFF BUCKET FULL...
- Page 10 OPERATING INSTRUCTIONS CONTROL PANEL BUTTONS (Refer to the images on page 9) 1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off. 2) Mode Selection - Press the MODE...
- Page 11 OPERATING UNIT USING CONTROL PANEL Air Conditioner Mode Install the exhaust hose and window kit properly (see pages 7 & 8). Plug the Power Cord into an electrical outlet. Turn on the unit by pressing the POWER button on the control panel.
- Page 12 Auto Mode 1) Install the exhaust hoses and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button on the control panel. ÷_, 4) Press the MODE button until the "...
- Page 13 Emergency Condensate Holdinq Tank When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency condensate tank inside the unit.
- Page 14 OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL TIMER/TEMP INCREASE SWING (LOUVER MODE BUTTON OSCILLATION) °C/°F BUTTON FAN SPEED SLEEP MODE TIMER BUTTON POWER BUTTON TIMER/TEMP DECREASE REMOTE CONTROL OPERATING INSTRUCTIONS Power On and Off - Press the ON/OFF button on the remote to turn the unit on or off.
- Page 15 MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed.
