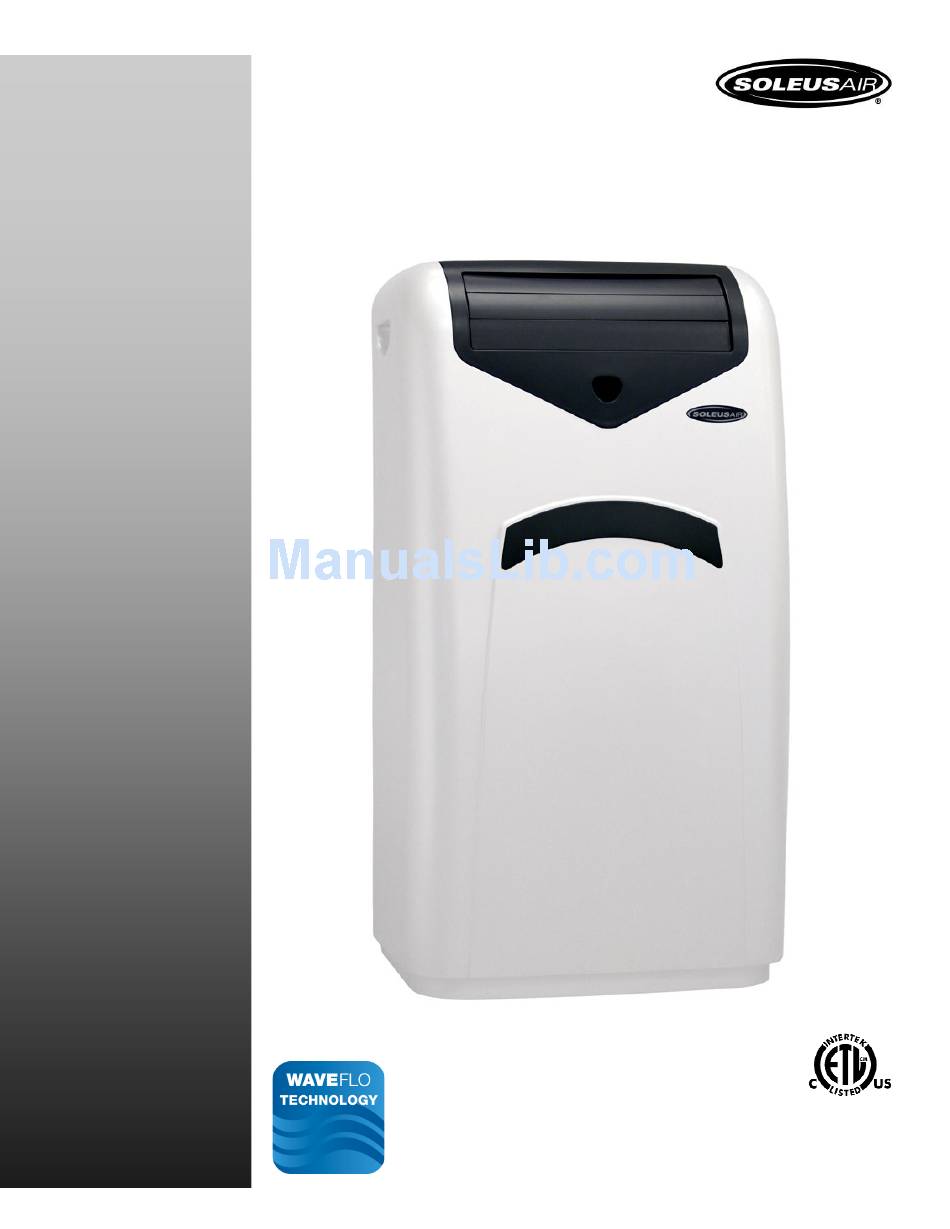

- Page 1 9,000 BTU Portable Air Conditioner PE3-09R-03 Operating Instructions Model No. PE3-09R-03 ® © 2006 Soleus Air International...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air PE3-09R-03 Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Package Contents
• If the environment temperature is higher than the max operating temperature or lower than the minimum operating • temperature, the air conditioner may not work properly. MODEL PE3-09R-03 COOLING CAPACITY 9,000 BTU/H DEHUMIDIFYING CAPACITY 50 pts per Day COOLING POWER... -
Page 4: Product Diagram
PRODUCT DIAGRAM Control Panel Louvers Signal Receptor Casters Filter Compartment Air Intake Cover/Filter... - Page 6 DUAL HOSE WINDOW KIT INSTALLATION...
-
Page 7: Control Panel, Display, & Operating Instructions
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL & MULTI-COLOR DISPLAY CONTROL PANEL TEMP & TIMER SELECTION POWER BUTTON MODE BUTTON TIMER BUTTONS SWING (LOUVER OSCILLATION) FAN SPEED BUTTON MULTI-COLOR DISPLAY AUTO DEHUM. TIMER ON TIMER OFF FAN SPEED TEMPERATURE AND TIMER INDICATOR OSCILLATION ON/OFF... -
Page 8: Operating The Unit Using The Control Panel
OPERATING INSTRUCTIONS CONTROL PANEL BUTTONS (Refer to the images on page 7) 1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER button once more to turn the unit off. 2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto mode, Air Conditioner, Dehumidifier, and Fan only mode. - Page 9 6) Select the desired fan speed by pressing the FAN button. NOTE: During hot days, the unit will cool the room most efficiently by setting the temperature at the lowest setting and the fan speed on high. Reducing the length of the exhaust duct, insulating the exhaust hose and window kit, and keeping direct sunlight to a minimum will also improve the cooling efficiency.
- Page 10 Sleep Mode (This mode can only be selected when using the Remote control ) 1) To set Sleep mode, make sure the unit is in Air Conditioner mode. 2) Press the SLEEP Button on the remote control. The “ ” icon appears on the control panel display. 3) When in SLEEP mode, the fan will run on low to keep fan noise at a minimum.
-
Page 11: Operating The Unit Using The Remote Control
OPERATING THE UNIT USING THE REMOTE CONTROL REMOTE CONTROL LCD DISPLAY MODE BUTTON POWER BUTTON FAN SPEED TEMP SETTING SWING (LOUVER OSCILLATION) TIMER ON SLEEP BUTTON TIMER OFF MINUTE SELECTER HOUR SELECTER * Remote Colors may differ from the image above. - Page 12 REMOTE CONTROL OPERATING INSTRUCTIONS 1) Power On and Off - Press the POWER (I/O) button once to manually turn the unit on. Press the Power button once more to turn the unit off. When you press the POWER button the upper right square on the remote control LCD Display will light up.
-
Page 13: Clean/Replace Filter
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 14: Warranty
One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air PE3-09R-03 Portable Air Conditioner to be free of de- fects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
