Summary of Contents for Soleus Air PE6-10R-03

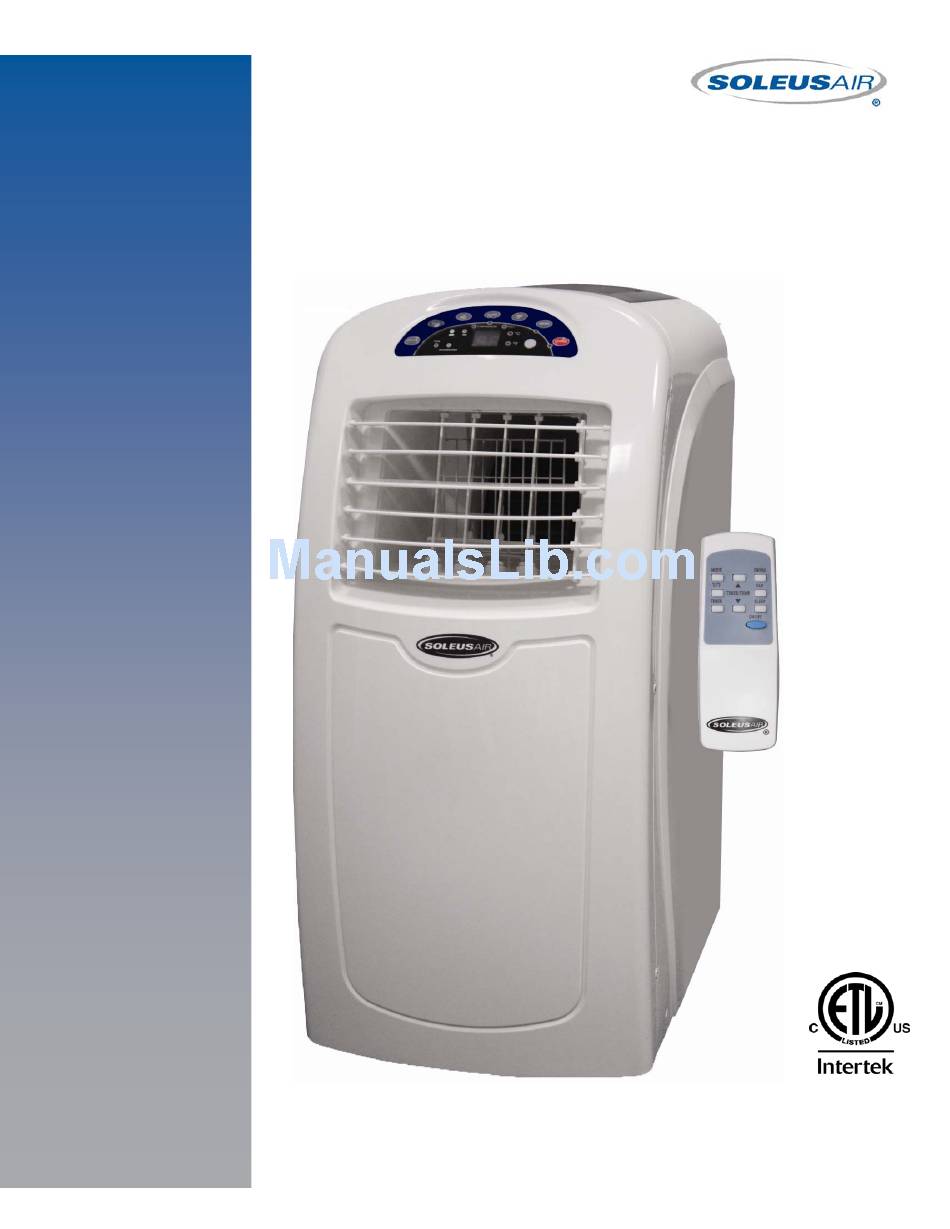

- Page 1 Portable Air Conditioner with Evaporative Technology PE6-10R-03 Operating Instructions 3046364 Model No. PE6-10R-03 © 2011Soleus Air International...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the opera- tional aspects of your new Soleus Air Portable Air Conditioner with Heat Pump technology. -
Page 3: Specifications
Product Dimensions (W x D x H) Refrigerant DISCLAIMER ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. PE6-10R-03 10,000 BTU/Hr... -
Page 4: Product Diagram
PRODUCT DIAGRAM Actual product design may differ slightly from images below. NOTE: FRONT A. Control panel B. Vertical air louvers C. Air outlet D. Horizontal air louvers E. Casters F. Power Cord & Plug BACK A. Hot air outlet grill B. -
Page 5: Installation
If mounting in the wall, the height of the hole should be 14 1/4” to 60 5/8” (36cm to 150cm) Soleus Air does not provide a venting kit for through the wall ventilation. Venting through the wall requires a custom installation. -
Page 6: Lcdi Power Cord And Plug
3. Press RESET button for use If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 7: Window Kit Installation
WINDOW KIT INSTALLATION WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows, as well as some sliding glass doors. However, it may be necessary to modify some aspects of the installation process for certain window types. - Page 8 WINDOW KIT INSTALLATION NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for all Soleus Air single hose portable air conditioners.
-
Page 9: Control Panel & Operation
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Air Conditioner and Dehumidifier. 3) Fan Speed Control - Press the FAN Button to cycle through the different fan speeds: High and low. -
Page 10: Mode Operation
MODE OPERATION OPERATING THE UNIT USING THE CONTROL PANEL Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button on the control panel. -
Page 11: Condensate Evaporation
Emergency Condensate Holding Tank When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency condensate tank inside the unit. -
Page 12: Operating The Unit Using The Remote Control
3) Fan Speed - Press the FAN speed button to cycle through low and high fan speeds. 4) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired tempera- ture. Press the ▲ or ▼ to select your desired temperature setting. The temperature on the multi-color display on the control panel will increase or decrease accordingly. -
Page 13: Clean/Replace Filter
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 14: This Warranty Does Not Cover
United States. If the unit exhibits a defect in normal use, Soleus International Inc. will, at its option, either repair or replace it, free of charge within a reasonable time after the unit is returned during the warranty period.
