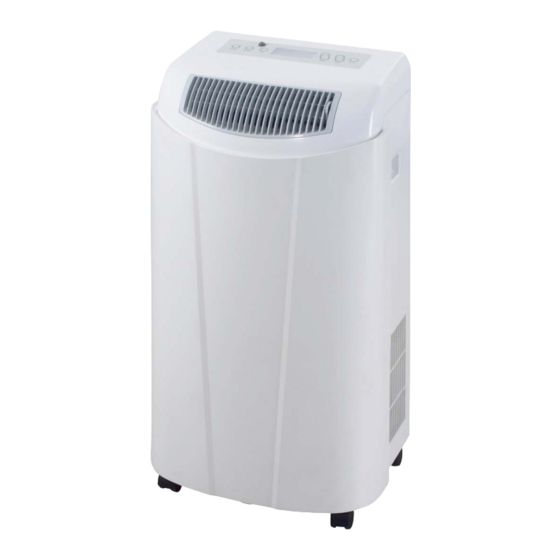

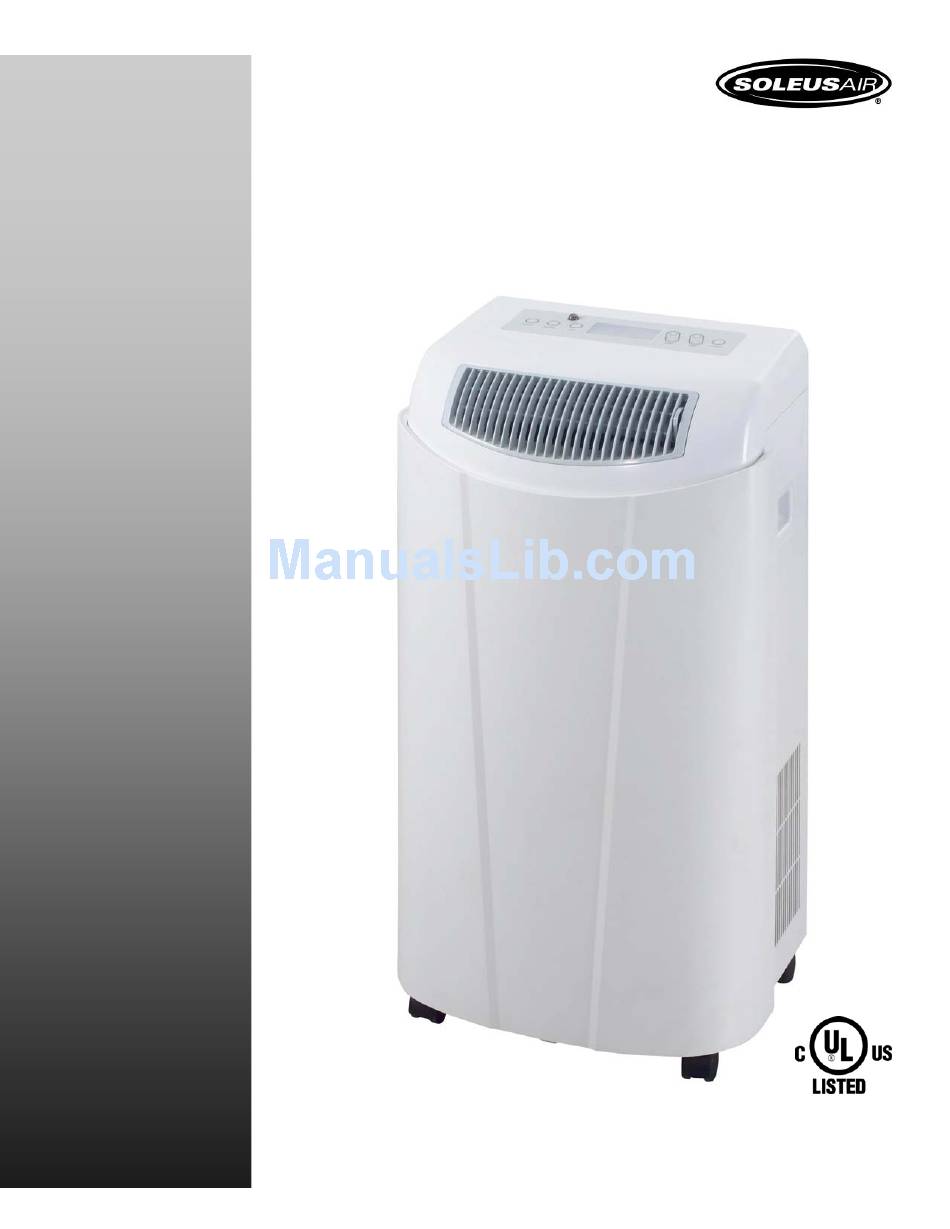

- Page 1 11,000 BTU Portable Air Conditioner with dehumidifier & Fan PE4-11R-03 Operating Instructions Model No. PE4-11R-03 © 2007 Soleus Air International...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Package Contents
These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. • If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. COOLING CAPACITY DEHUMIDIFYING CAPACITY... -
Page 4: Product Diagram
PRODUCT DIAGRAM FRONT BACK... -
Page 5: Installation
INSTALLATION SELECTING THE LOCATION Place the unit on a flat surface in an area where the outlets are not obstructed. Place the unit at least 20” away from all adjacent walls. MOUNTING THE EXHAUST HOSE Slide the square front end of the exhaust duct over the hot air outlet on the back of the unit. -
Page 6: Lcdi Power Cord And Plug
3. Press RESET button for use If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 7: Window Kit Installation
WINDOW KIT INSTALLATION... -
Page 8: Control Panel & Lcd Display
CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL & LCD DISPLAY LCD Display... - Page 9 2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto mode, Air Conditioner, Dehumidifier, and Fan. 3) Fan Speed Control - Press the FAN SPEED Button to cycle through the different fan speeds: High, Medium, and low.
-
Page 10: Operating The Unit Using The Control Panel
OPERATING THE UNIT USING THE CONTROL PANEL Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the ON/OFF button on the control panel. - Page 11 ° F to 80 F. And Air Conditioner mode when the room temperature is above 80 Emergency Condensate Holding Tank When the unit is in cooling mode, unwanted water is extracted from the air. Most of this water is used to cool the unit and make it run more efficiently.
-
Page 12: Operating The Unit Using The Remote Control
SEND button to transmit the operation. 6) Fan Speed - Press the FAN speed button to cycle through low, medium, and high fan speeds. 7) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired temperature. Press the F or the LCD display will increase or decrease accordingly. - Page 13 REMOTE CONTROL OPERATING INSTRUCTIONS (CONT.) Sleep Mode - See “SLEEP MODE” on page 9. 8) Timer - To program the timer, press the TIMER button on the remote control to select the SET TIMER MODE. To program the unit to automatically turn on, make sure the unit is on, then press the Hr/Min buttons to select the desired time between 1-18 hours.
-
Page 14: Care And Maintenance
CARE & MAINTENANCE Prior to all cleaning and maintenance, please unplug the air conditioner from the outlet. Cleaning the air filter 1. Press down on the two latches (hooks) on top of the filter and remove the air intake grill from the air condi- tioner 2. -
Page 15: Troubleshooting
The LCD display the number for the timer but it does not work The unit is set to COOLING mode, but the airflow from the air conditioner is not cool The unit is set to DRY (Dehumidifier) mode and the airflow from the air condi- tioner is not cool. -
Page 16: This Warranty Does Not Cover
One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air PE4-11R-03 Portable Air Conditioner to be free of de- fects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
