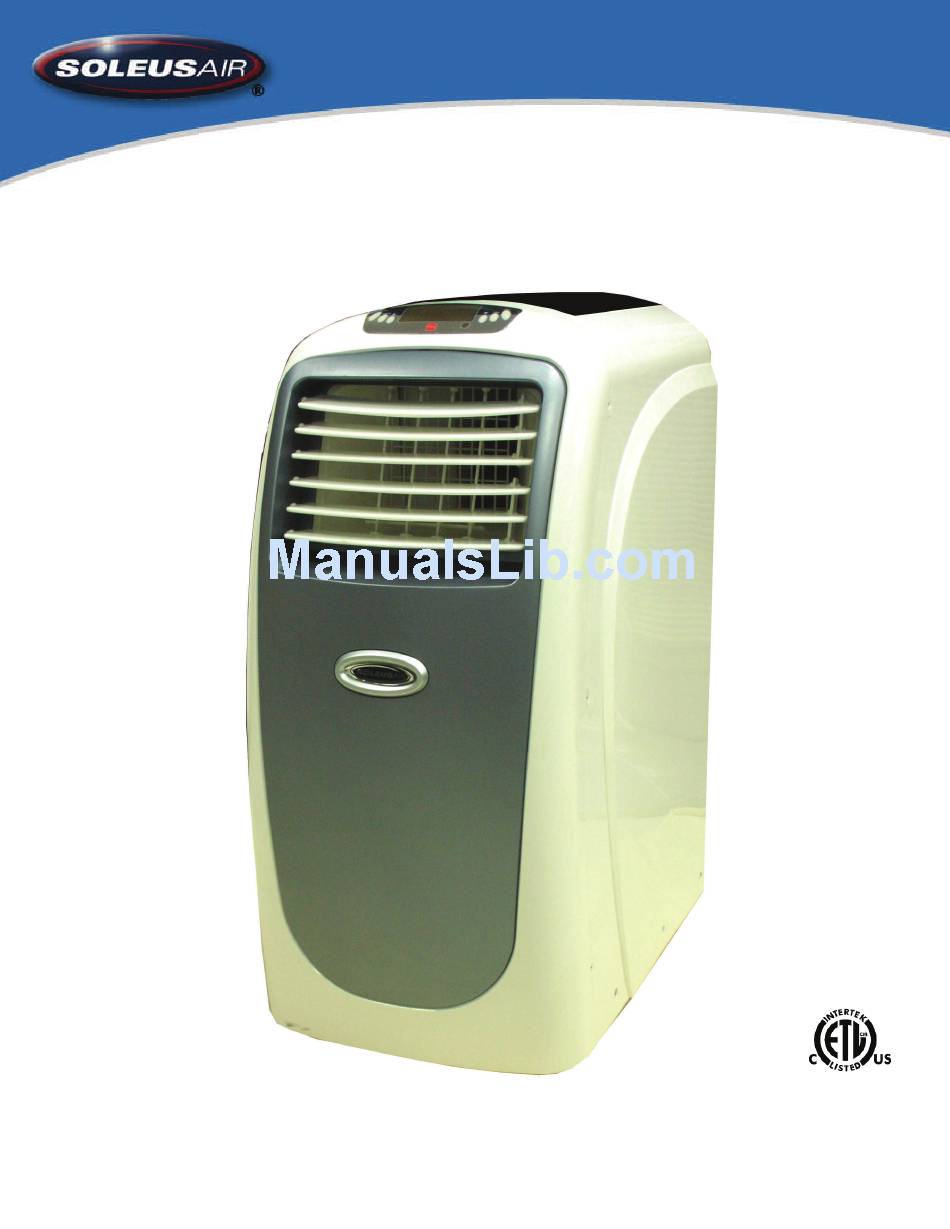

- Page 1 8000 / 10,000 BTU Portable Air Conditioner with dehumidifier & Fan PE2-08R-62 / PE2-10R-32 Operating Instructions 3046364 Model No. PE2-08R / PE2-10R © 2008 Soleus Air International...
-
Page 2: Important Instructions
Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new Soleus Air Portable Air Conditioner. -
Page 3: Package Contents
These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. • If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature, the air conditioner may not work properly. MODEL Cooling Capacity... -
Page 4: Product Diagram
PRODUCT DIAGRAM (Actual product design may differ slightly from images below) FRONT A. Control panel B. Vertical air louvers C. Air outlet D. Horizontal air louvers E. Casters F. Power Cord & Plug BACK A. Hot air outlet grill B. Lower air inlet grill ACCESSORIES Flexible exhaust hose with 2 adapters •... -
Page 5: Installation
If mounting in the wall, the height of the hole should be 16 to 50 inches (40cm to 130cm). Soleus Air does not provide a venting kit for through the wall ventilation. Venting through the wall requires a custom installation. -
Page 6: Lcdi Power Cord And Plug
3. Press RESET button for use If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting recommendations. -
Page 7: Window Kit Installation
WINDOW KIT INSTALLATION WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows, as well as some sliding glass doors. However, it may be necessary to modify some aspects of the installation process for certain window types. - Page 8 NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images show general directions for all Soleus Air single hose portable air conditioners. - The heating function is not available on this unit.
- Page 9 CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS CONTROL PANEL & MULTI-COLOR DISPLAY FAN SPEED SWING BUTTON INCREASE TEMP & TIMER MULTI-COLOR DISPLAY AUTO FAN SPEED OSCILLATION ON/OFF COMPRESSOR ON/OFF POWER BUTTON DEHUM. BUCKET FULL MODE BUTTON TIMER BUTTON DECREASE TEMP & TIMER TIMER ON TIMER OFF SLEEP MODE ON/OFF...
- Page 10 The timer will also remember the temperature settings, fan speed, and oscillation setting. The timer works when the unit is in Air Conditioner mode, Dehumidifier mode, Fan mode, and Auto mode. will flash in the multi...
-
Page 11: Operating The Unit Using The Control Panel
OPERATING THE UNIT USING THE CONTROL PANEL Air Conditioner Mode 1) Install the exhaust hose and window kit properly (see pages 7 & 8). 2) Plug the Power Cord into an electrical outlet. 3) Turn on the unit by pressing the POWER button on the control panel. - Page 12 ° F to 80 F. The unit will operate in Air Conditioner mode when the room temperature is above 80 Auto mode, the fan speed cannot be manually changed. Sleep Mode (This mode can only be selected when using the Remote control ) 1) To set Sleep mode, make sure the unit is in Air Conditioner mode.
- Page 13 Emergency Condensate Holding Tank When the room temperature is low and the indoor humidity is high, the air conditioner may not be able to evaporate some of the moisture fast enough. When this happens, the water will accumulate in an emergency condensate tank inside the unit.
-
Page 14: Operating The Unit Using The Remote Control
3) Fan Speed - Press the FAN button to cycle through low, medium, and high fan speeds. 4) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired tempera- ture. Press the ▲ or ▼ to select your desired temperature setting. The temperature on the multi-color display on the control panel will increase or decrease accordingly. -
Page 15: Maintenance
MAINTENANCE Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to performing any maintenance on the unit. Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is recommended to clean the filter once every two weeks or as needed. -
Page 16: This Warranty Does Not Cover
WARRANTY One Year Limited Warranty Soleus International Inc. warrants the accompanying Soleus Air PE2-08R-62 / PE2-10R-32 Portable Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1) year from the date of original retail purchase in the United States.
