Direct Drive
Oil Lube
Portable Air Compressor
CPLDC2541S
To learnmore about pbrtei;_Cbbie
visit our website ati
IMPORTANT
Please make certain that the person who is
to use this equipment
carefully reads and
understands
these
instructions
before
starting operations.
The Model and Sehal No. plate is located on the frame,
Record these numbers in the spaces below and retain for
future i_ference.
Model No.
Type
Sedal No.
Copyright 02001 Porter_able;Corporation
Part No.
D24064-0111-1
Advertisement
Table of Contents
Related Manuals for Porter-Cable CPLDC2541S
Summary of Contents for Porter-Cable CPLDC2541S

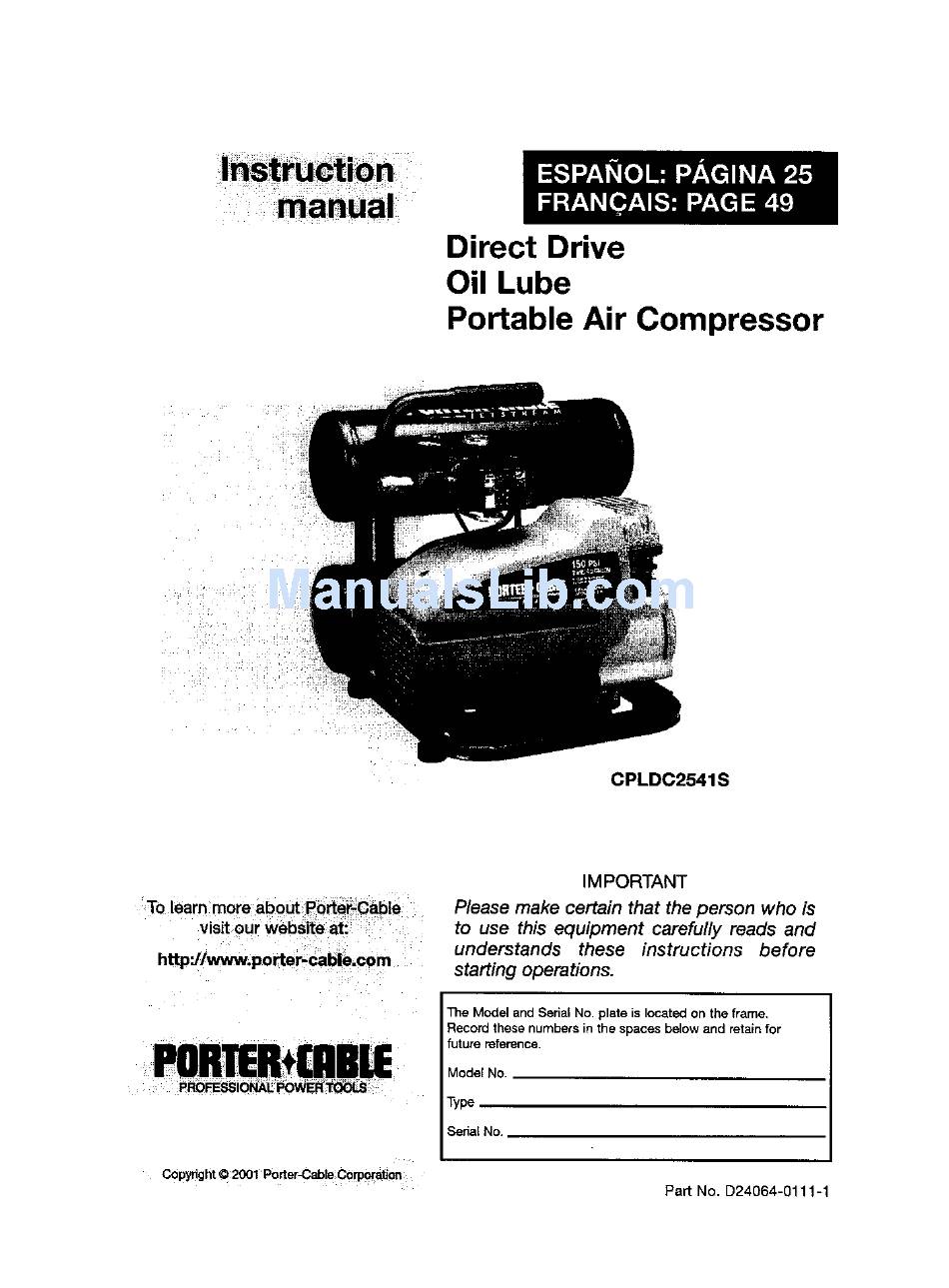

- Page 1 Direct Drive Oil Lube Portable Air Compressor CPLDC2541S IMPORTANT To learnmore about pbrtei;_Cbbie Please make certain that the person who is visit our website ati to use this equipment carefully reads and understands these instructions before starting operations. The Model and Sehal No. plate is located on the frame, Record these numbers in the spaces below and retain for future i_ference.
- Page 2 SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY PROPERTY DAMAGE. READ UNDERSTAND WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT. HAZARD RISK OF EXPLOSION OR FIRE WHAT CAN HAPPEN HOW TO PREVENT IT ALWAYS OPERATE THE COMPRESSOR IN A IT IS NORMAL...
- Page 4 HAZARD RISK OF BURSTING I_.1 THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, RESULT VIOLENT TANK EXPLOSION COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY. WHAT HAPPEN TO PREVENT FAILURE TO PROPERLY DRAIN DRAIN TANK DAILY OR AFTER BACH USE. CONDENSED WATER FROM THE...
-
Page 5: Risk Of Electrical Shock
HAZARD RISK OF ELECTRICAL SHOCK WHAT CAN HAPPEN HOW TO PREVENT IT YOUR AIR COMPRESSOR IS POWERED NEVER OPERATE COMPRESSOR OUTDOORS WHEN IT IS RAINING OR IN WET ELECTRICITY. OTHER CONDITIONS ELECTRICALLY POWERED DEVICE, IF IT IS USED PROPERLY CAUSE NEVER OPERATE COMPRESSOR... -
Page 6: Risk From Moving Parts
HAZARD RISK OF BURNS WHAT CAN HAPPEN HOW TO PREVENT IT TOUCHING EXPOSED METAL SUCH AS THE NEVER TOUCH ANY EXPOSED METAL PARTS COMPRESSOR HEAD OR OUTLET TUBES, ON COMPRESSOR DURING OR IMMEDIATELY CAN RESULT IN SERIOUS BURNS. AFTER OPERATION. COMPRESSOR WILL REMAIN... - Page 7 HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT IT UNSAFEOPERATION OF YOUR AIR REVIEW AND UNDERSTAND COMPRESSORCOULD LEAD TO SERIOUS IN- INSTRUCTIONS AND WARNINGS IN THiS JURY OR DEATH TO YOU OR OTHERS. MANUAL. BECOME FAMILIAR WITH THE OPERATION AND CONTROLS OF THE AIR COMPRESSOR.
-
Page 8: Duty Cycle
This means an air compressor that pumps air more than 50% of one hour is considered misuse, because the air compressor is undersized for the required air demand. Maximum compressor pumping time per hour is 30 minutes. SPECIFICATIONS Model No. CPLDC2541S Horsepower Peak Bore 2.363" Stroke .890" Voltage-Single Phase... - Page 9 ACCESSORIES Accessories for this unit are available at the store the unit was purchased. ASSEMBLY To Add Oil To Pump _=_f_q_ DO NOT A3"I'EMPT TO OPERATE THIS AIR COMPRESSOR WITHOUT FIRST ADDING OIL TO THE CRANKCASE. Serious damage can result from even limited operation unless filled with oil and broken in correctly.
-
Page 10: Installation
INSTALLATION HOW TO SET UP YOUR UNIT Location of the Air Compressor • Locate the air compressor in a clean, dry, and well ventilated area. • The air compressor should be located at least 12" away from the wall or other obstructions that will interfere with the flow of air. - Page 11 Extension Cords Use extra air hose instead of an extension cord to avoid voltage drop and power loss to the motor, and to prevent overheating. If an extension cord must be used, be sure it is: • a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the product •...
-
Page 12: Operation
OPERATION Know Your Air Compressor READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments, Save this manual for future reference. Description of Operation Become familiar with these controls before operating the unit. - Page 13 Dipstick: Indicates the amount of oil in the pump, the + mark indicates full and the - mark indicates oil needs to be added. See Oil paragraphs in the Maintenance section for instructions. Motor Thermal Overload Protector (not shown): This motor has a manual thermal overload protector.
- Page 14 Plug the power cord into the correct branch circuit receptacle. (Refer to Voltage and Circuit Protection paragraph in the Installation section of this manual.) Open the drain valve fully (counter-clockwise) to permit air to escape and prevent air pressure build up in the air tank during the break-in period. Move the On/Auto/Off lever to "ON/AUTO"...
-
Page 15: Maintenance
MAINTENANCE Customer Responsibilities Before Daily or Every Every Every Every each after each Yearly hours hours hours hours ._heck Safety Valve • :)rain Tank • :)il Leaks • 3heck Oil • 3hange Oil _ir Filter 1- more frequent in dusty or humid conditions Unit cycles automatically when power is on. - Page 16 Drain water from air tank by opening drain valve (counter-clockwise) bottom of tank. NOTE: Tilt tank forward to drain tank completely. Water will condense in the air tank. If not drained, water will corrode and weaken the air tank causing a risk of air tank rupture.
- Page 17 NOTE: Use a air compressor oil such as SAE-30 (API CG/CD heavy duty motor oil Under extreme winter conditions use SAE-10 weight oil. Slowly fill crankcase with oil. Crankcase capacity is 8 fluid ounces (236.6 ml). Oil level should be at the + (full) mark on the dipstick. Overfilling with oil will cause premature compressor failure.
-
Page 18: Service And Adjustments
SERVICE AND ADJUSTMENTS _Unit cycles automatically when power is on. When doing Maintenance, you may be exposed to voltage sources, compressed air or moving parts. Personal injuries can occur. Before performing any Maintenance or repair, unplug the compressor and bleed off all air pressure. - Page 19 To Replace Regulator Release all air pressure from air tank. See "To Drain Tank" in the Maintenance section. Unplug outfit, Using an adjustable wrench remove the gauges and quick connect from the regulator, Remove the regulator, Apply pipe sealant tape to the nipple on the pressure switch, Assemble the regulator and orient as shown, NOTE: Arrow indicates flow of air.
-
Page 20: Troubleshooting
TROUBLESHOOTING Pertorming repairs may expose voltage sources, moving parts or compressed air sources, moving parts or compressed air sources. Personal injury may occur. Prior to attempting any repairs, unplug the air compressor and bleed off all air tank air pressure. PROBLEM CAUSE CORRECTION... - Page 21 CAUSE PROBLE M CORRECTION It is normal for "some" If there is an excessive amount Pressure reading of pressure drop when the )ressure drop to occur. on the regulated accessory is used, adjust the pressure gauge regulator as instructed in the (if equipped) Operation section.
- Page 22 CORRECTION PROBLEM CAUSE Motor will not Let motor cool off and Motor overload protection overload switch will run. switch has tripped automatically reset. Tank pressure exceeds Motor will start automatically pressure switch "cut-in" when tank pressure drops pressure. below "cut-in" pressure of pressure switch.
- Page 23 CORRECTION PROBLEM CAUSE KnockingNoise. Possible defect in safety Operate safety valve manually valve. by pulling on ring. If valve still leaks, it should be replaced. Defective check valve. Remove and clean, or replace. Tighten mounting screws,see Compressor mounting screws loose Parts manual for torque specifications.
