Page 1

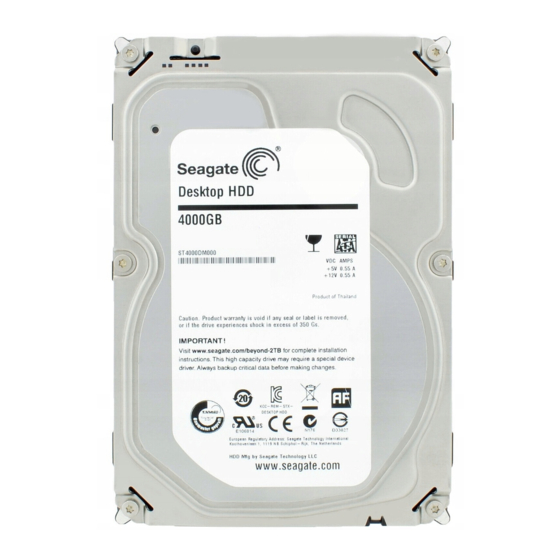

Product Manual Seagate Desktop HDD ® ST4000DM000 ST3000DM003 Gen 15 100710254 Rev. C March 2013...
Page 2
In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or...
Authorized Service Centers For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM and Distribution partner portal, visit: http://www.seagate.com/partners For Seagate reseller portal, visit: http://www.seagate.com/partners/my-spp-dashboard/ Desktop HDD SATA Product Manual, Rev. C...
• Seagate AcuTrac™ servo technology delivers dependable performance,even with hard drive track widths of only 75 nanometers. • Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous generation. • Seagate SmartAlign™ technology provides a simple, transparent migration to Advanced Format 4K sectors •...
Page 10
Introduction www.seagate.com The host adapter may, optionally, emulate a master/slave environment to host software where two devices on separate SATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at Note the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers.
Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases the drive and this drive are used throughout this manual to indicate the following drive models: ST4000DM000 ST3000DM003 2.1 Specification summary tables The specifications listed in are for quick reference.
Page 12
Drive Specifications www.seagate.com Table 1 Drive specifications summary for 4TB and 3TB models (continued) Drive Specification* ST4000DM000 ST3000DM003 Voltage tolerance (including noise) 5V: ±5% 5V: ±5% 12V: ±10% 12V: ±10% Ambient temperature 0° to 60°C (operating) 0° to 60°C (operating) –40°...
2.2 Formatted capacity Formatted Guaranteed Model Bytes per sector capacity* sectors ST4000DM000 4000GB 7,814,037,168 ST3000DM003 3000GB 5,860,533,168 *One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting.
Drive Specifications www.seagate.com 2.4 Recording and interface technology Interface SATA Recording method TGMR Recording density 1550kFCI 1807kFCI Track density (ktracks/inch avg) 3TB and 4TB Areal density (Gb/in Internal data transfer rate (Mb/s max) 1813 1813 Maximum sustained data transfer rate, OD read (MB/s)
Drive Specifications 2.6 Seek time Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows: • Track-to-track seek time is an average of all possible single-track seeks in both directions.
Drive Specifications www.seagate.com During Standby mode, the drive accepts commands, but the drive is not spinning, and the servo and read/ write electronics are in power-down mode. Table 2 DC power requirements (3TB and 4TB) Power dissipation (4-disk values shown) Avg (watts 25°...
Drive Specifications • Idle mode The buffer remains enabled, and the drive accepts all commands and returns to Active mode any time disk access is necessary. • Standby mode The drive enters Standby mode when the host sends a Standby Immediate command. If the host has set the standby timer, the drive can also enter Standby mode automatically after the drive has been inactive for a specifiable length of time.
Drive Specifications www.seagate.com 2.9.4 Altitude Operating –304m to 3048m (–1000 ft. to 10,000 ft.) Non-operating –304m to 12,192m (–1000 ft. to 40,000+ ft.) The maximum storage period: Note • 90 days in uncontrolled storage conditions 2.9.5 Shock All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws.
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389- 7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules.
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an Desktop HDD SATA Product Manual, Rev.
Page 22
Drive Specifications www.seagate.com ambient relative humidity greater than 95%. Materials used in cabinet fabrication, such as vulcanized rubber, that can outgas corrosive compounds should be minimized or eliminated. The useful life of any electronic equipment may be extended by replacing materials near circuitry with sulfide-free alternatives.
3.0 Configuring and Mounting the Drive This section contains the specifications and instructions for configuring and mounting the drive. 3.1 Handling and static-discharge precautions After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions: Caution •...
Configuring and Mounting the Drive www.seagate.com Figure 1 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Desktop HDD drives support latching SATA connectors. 3.4 Drive mounting You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes.
4.0 SATA Interface These drives use the industry-standard Serial ATA (SATA) interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) modes 0 to 4; multiword DMA modes 0 to 2, and Ultra DMA modes 0 to 6. For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment”...
SATA Interface www.seagate.com Table 5 SATA connector pin definitions (continued) Segment Function Definition 3.3V power 3.3V power 3.3V power, pre-charge, 2nd mate Ground 1st mate Ground 2nd mate Ground 2nd mate 5V power, pre-charge, 2nd mate 5V power Power 5V power...
Page 27
SATA Interface Table 6 SATA standard commands (continued) Command name Command code (in hex) Download Microcode Execute Device Diagnostics Flush Cache Flush Cache Extended Format Track Identify Device Idle Idle Immediate Initialize Device Parameters Read Buffer Read DMA Read DMA Extended...
Page 28
SATA Interface www.seagate.com Table 6 SATA standard commands (continued) Command name Command code (in hex) Note: Individual Set Max Address Address: commands are identified by the value Password: placed in the Set Max Features register Lock: as defined to the right.
SATA Interface 4.3.1 Identify Device command The Identify Device command (command code EC ) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in on page 26. All reserved bits or words should be set to zero.
Page 30
SATA Interface www.seagate.com Table 7 Identify Device commands (continued) Word Description Value Number of sectors transferred during a Read Multiple xxxx or Write Multiple command 60–61 Total number of user-addressable LBA sectors available 0FFFFFFFh* (see Section 2.2 for related information) *Note: The maximum value allowed in this field is: 0FFFFFFFh (268,435,455 sectors, 137GB).
Page 31
8080 95–99 ATA-reserved 0000 100–103 Total number of user-addressable LBA sectors available ST4000DM000 = 7,814,037,168 (see Section 2.2 for related information). These words are ST3000DM003 = 5,860,533,168 required for drives that support the 48-bit addressing feature. Maximum value: 0000FFFFFFFFFFFFh. 104–107...
Page 32
SATA Interface www.seagate.com GPL feature set is supported. WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported. WRITE DMA QUEUED FUA EXT command is supported. 64-bit World Wide Name is supported. 9-10 Obsolete. 11-12 Reserved for TLC.
SATA Interface 4.3.2 Set Features command This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, checks the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted.
SATA Interface www.seagate.com 4.3.3 S.M.A.R.T. commands S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T.
Page 35
Index EN 55022, Class B 20 ACA 20 EN 55024 20 acceleration 18 EN60950 20 acoustics 19 enclosures 20 Active 16 Environmental specifications 17 Active mode 16 error-correction algorithms 9 Agency certification 20 ESD 23 altitude 18 EU 20 Ambient temperature 17 EU RoHS directive 21 ambient temperature 15 European Union (EU) requirements 20...
