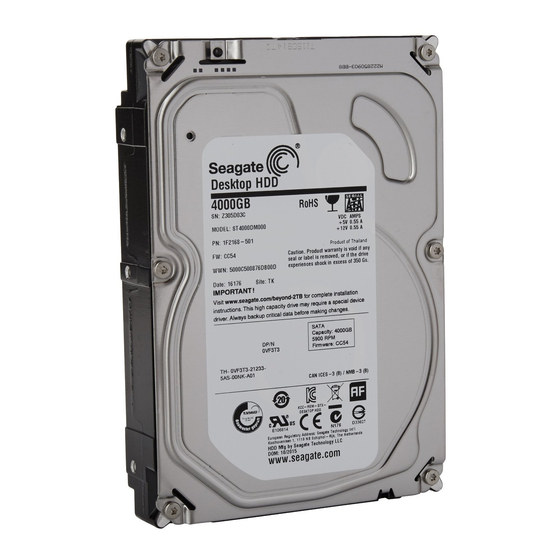

- Page 1 Desktop HDD SATA Product Manual ST4000DM000 ST3000DM003 100799391, Rev. A Gen 15 - March 2016...
- Page 2 Publication number: 100799391, Rev. A March 2016 Seagate, Seagate Technology and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. Desktop HDD and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trade- marks are the property of their respective owners.
-
Page 3: Table Of Contents
Hot-Plug compatibility ......................20 SATA device plug connector pin definitions ................. 20 Supported ATA commands ....................21 4.3.1 Identify Device command ..................23 4.3.2 Set Features command..................27 4.3.3 S.M.A.R.T. commands ..................28 Seagate Desktop HDD Product Manual, Rev. A... - Page 4 Figures Figure 1 Attaching SATA cabling ......................18 Figure 2 Mounting dimensions (3TB and 4TB) ................... 19 Seagate Desktop HDD Product Manual, Rev. A...
-
Page 5: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/seagate-recovery-services/ recover/ For Seagate OEM and Distribution partner and reseller portals, visit: http://www.seagate.com/partners Seagate Desktop HDD Product Manual, Rev. A... -
Page 6: Introduction
SATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed Note at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment. Seagate Desktop HDD Product Manual, Rev. A... -
Page 7: Drive Specifications
Startup current (typical) 12V 2.0A 5V: ±5% Voltage tolerance (including noise) 12V: ±10% 0° to 60°C (operating) Ambient temperature –40° to 70°C (non-operating) 20°C per hour max (operating) Temperature gradient 30°C per hour max (nonoperating) Seagate Desktop HDD Product Manual, Rev. A... -
Page 8: Formatted Capacity
4000GB 7,814,037,168 ST3000DM003 3000GB 5,860,533,168 *One GB equals one billion bytes and 1TB equals one trillion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Seagate Desktop HDD Product Manual, Rev. A... -
Page 9: Lba Mode
Areal density (Gb/in Internal data transfer rate (Mb/s max) 1858 2111 Maximum sustained data transfer rate, OD read (MB/s) 3TB and 4TB Average data rate, read/write (MB/s) 3TB and 4TB I/O data-transfer rate (MB/s max) Seagate Desktop HDD Product Manual, Rev. A... -
Page 10: Physical Characteristics
(in seconds) 17 (max) 10 (typical) Ready to spindle stop (in seconds) 11 (max) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS power down procedures. Seagate Desktop HDD Product Manual, Rev. A... -
Page 11: Power Specifications
• Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10MHz. Note Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Seagate Desktop HDD Product Manual, Rev. A... -
Page 12: Voltage Tolerance
If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all com- mands and returns to Active mode when disk access is necessary. Seagate Desktop HDD Product Manual, Rev. A... -
Page 13: Environmental Specifications
40°C (104°F max) 2.9.4 Altitude Operating –304m to 3048m (–1000 ft. to 10,000 ft.) Non-operating –304m to 12,192m (–1000 ft. to 40,000+ ft.) The maximum storage period: Note • 90 days in uncontrolled storage conditions Seagate Desktop HDD Product Manual, Rev. A... -
Page 14: Shock
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below. 5Hz to 22Hz 3.0 Gs (Limited displacement) 22Hz to 350Hz 3.0 Gs 350Hz to 500Hz 3.0 Gs Seagate Desktop HDD Product Manual, Rev. A... -
Page 15: Acoustics
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 16: Warranty
EN 55024. Drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with the directives when used in the test systems, we cannot guarantee that all systems will comply with the directives. The drive is designed for operation inside a properly designed enclosure, with properly shielded I/O cable (if necessary) and terminators on all unused I/O ports. -
Page 17: Fcc Verification
As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules. -
Page 18: China Restriction Of Hazardous Substances (Rohs) Directive
The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. -
Page 19: Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as illustrated in Figure 1 Figure 1 Attaching SATA cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. Desktop HDD drives support latching SATA connectors. Seagate Desktop HDD Product Manual, Rev. A... -
Page 20: Drive Mounting
• The screws should be inserted no more than 0.150 inch (3.81mm) into the bottom or side mounting holes. • Do not overtighten the mounting screws (maximum torque: 6 inch-lb). Figure 2 Mounting dimensions (3TB and 4TB) Seagate Desktop HDD Product Manual, Rev. A... -
Page 21: Sata Interface
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate back- plane configuration. • All used voltage pins (V ) must be terminated. Seagate Desktop HDD Product Manual, Rev. A... -
Page 22: Supported Ata Commands
Read Sectors Extended Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Seagate Desktop HDD Product Manual, Rev. A... - Page 23 Write DMA Extended Write DMA FUA Extended Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate Desktop HDD Product Manual, Rev. A...
-
Page 24: Identify Device Command
4.3.1 Identify Device command The Identify Device command (command code EC ) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in on page 21. All reserved bits or words should be set to zero. - Page 25 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078 0078 Minimum PIO cycle time with IORDY flow control (120 nsec) Seagate Desktop HDD Product Manual, Rev. A...
- Page 26 Total number of user-addressable LBA sectors available (see Section 2.2 for related ST4000DM000 = 7,814,037,168 100–103 information). These words are required for drives that support the 48-bit ST3000DM003 = 5,860,533,168 addressing feature. Maximum value: 0000FFFFFFFFFFFFh. Seagate Desktop HDD Product Manual, Rev. A...
- Page 27 Integrity word Advanced Power Management (APM) and Automatic Acoustic Note Management (AAM) features are not supported. See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate Desktop HDD Product Manual, Rev. A...
-
Page 28: Set Features Command
WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported. WRITE DMA QUEUED FUA EXT command is supported. 64-bit World Wide Name is supported. 9-10 Obsolete. 11-12 Reserved for TLC. IDLE IMMEDIATE command with IUNLOAD feature is supported. Seagate Desktop HDD Product Manual, Rev. A... - Page 29 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate Desktop HDD Product Manual, Rev. A...
- Page 30 Disable use of SATA features Enable read look-ahead (read cache) feature (default) Report full capacity available At power-on, or after a hardware or software reset, the Note default values of the features are as indicated above. Seagate Desktop HDD Product Manual, Rev. A...
-
Page 31: Commands
S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x04 (abort) is written to the Error register. Seagate Desktop HDD Product Manual, Rev. A... - Page 32 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100799391, Rev. A...
