Panel Descriptions

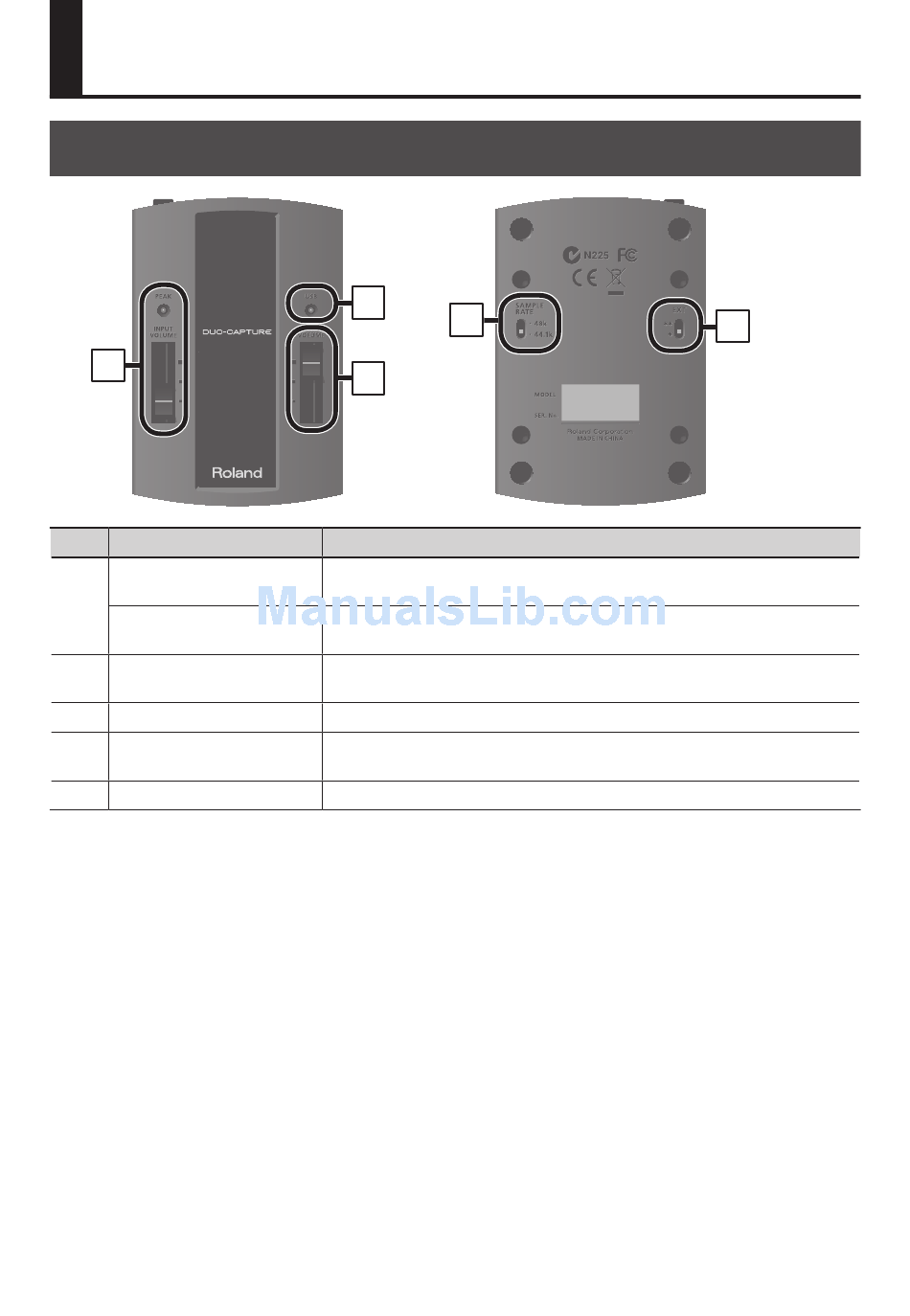

Top Panel, Bottom Panel

1
No . Name
PEAK indicator
1
[INPUT VOLUME] slider
2 USB indicator
3 [OUTPUT VOLUME] slider
4 [SAMPLE RATE] switch
5 [EXT] switch
2
4
3
Description
Blinks in time with the audio signal that is input via the LINE IN jack or MIC/
GUITAR jack.
Adjusts the volume of the audio signal that is input via the LINE IN jack or
MIC/GUITAR jack.
Lights when the DUO-CAPTURE is connected to a computer and the
computer has detected the DUO-CAPTURE.
Adjusts the volume of the audio signal that is output to the PHONES jack.
44.1k: The DUO-CAPTURE will record and play back at a sample rate of 44.1 kHz.
48k: The DUO-CAPTURE will record and play back at a sample rate of 48 kHz.
Feature-expansion switch. Normally this switch should be set to "*. "
