D Group Call; D Displaying The Received Call Record - Icom IC-F34GT Instruction Manual

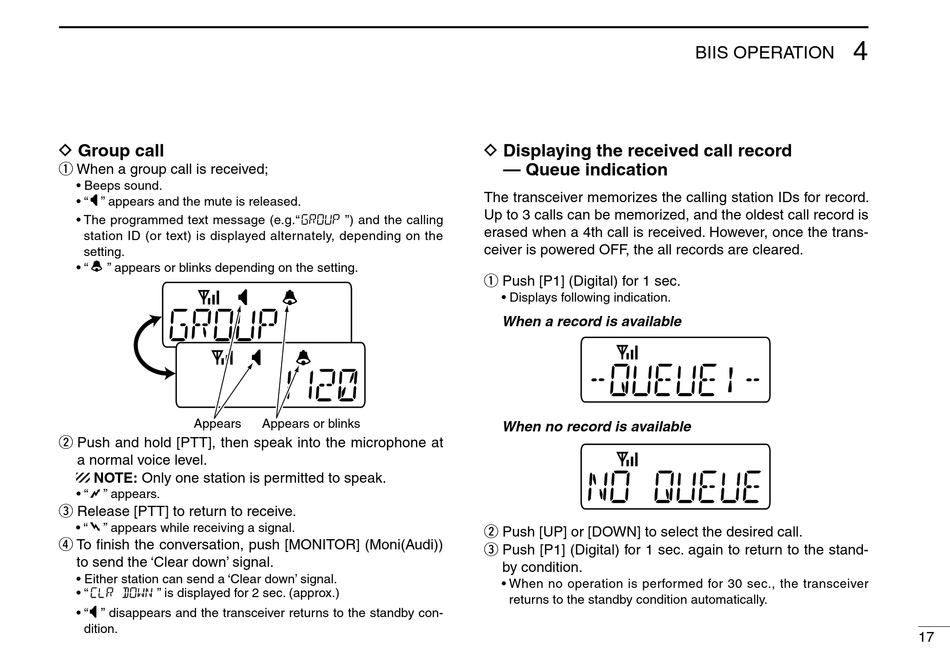

D Group call

q When a group call is received;
• Beeps sound.
• " " appears and the mute is released.
• The programmed text message (e.g."
station ID (or text) is displayed alternately, depending on the
setting.
• " " appears or blinks depending on the setting.
Appears
w Push and hold [PTT], then speak into the microphone at
a normal voice level.
NOTE: Only one station is permitted to speak.
• " " appears.
e Release [PTT] to return to receive.
• " " appears while receiving a signal.
r To finish the conversation, push [MONITOR] (Moni(Audi))
to send the 'Clear down' signal.
• Either station can send a 'Clear down' signal.
• " " is displayed for 2 sec. (approx.)
• " " disappears and the transceiver returns to the standby con-
dition.
") and the calling
Appears or blinks

D Displaying the received call record

— Queue indication
The transceiver memorizes the calling station IDs for record.
Up to 3 calls can be memorized, and the oldest call record is
erased when a 4th call is received. However, once the trans-
ceiver is powered OFF, the all records are cleared.
q Push [P1] (Digital) for 1 sec.
• Displays following indication.
When a record is available
When no record is available
w Push [UP] or [DOWN] to select the desired call.
e Push [P1] (Digital) for 1 sec. again to return to the stand-
by condition.
• When no operation is performed for 30 sec., the transceiver
returns to the standby condition automatically.
4
BIIS OPERATION
17
