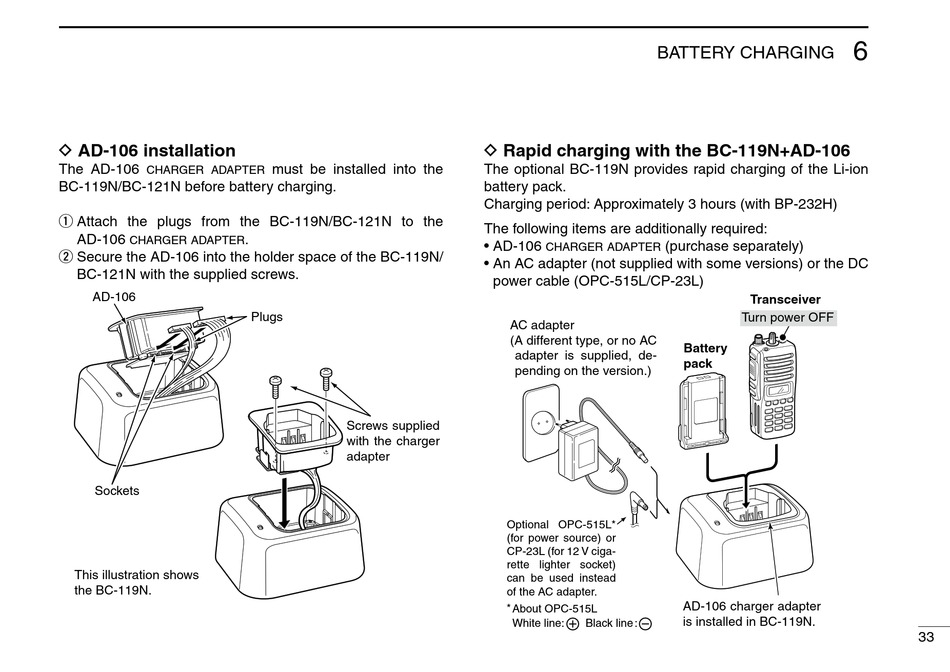

D AD-106 installation
The AD-106
charger adapter
BC-119N/BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the
AD-106
charger adapter
w Secure the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
AD-106
Sockets
This illustration shows
the BC-119N.
must be installed into the
.
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3 hours (with BP-232H)
The following items are additionally required:
• AD-106
charger adapter
• An AC adapter (not supplied with some versions) or the DC
power cable (OPC-515L/CP-23L)
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V ciga-
rette lighter socket)
can be used instead
of the AC adapter.
*
About OPC-515L
White line: Black line :
(purchase separately)
Transceiver
Turn power OFF
Battery
pack
AD-106 charger adapter
is installed in BC-119N.
