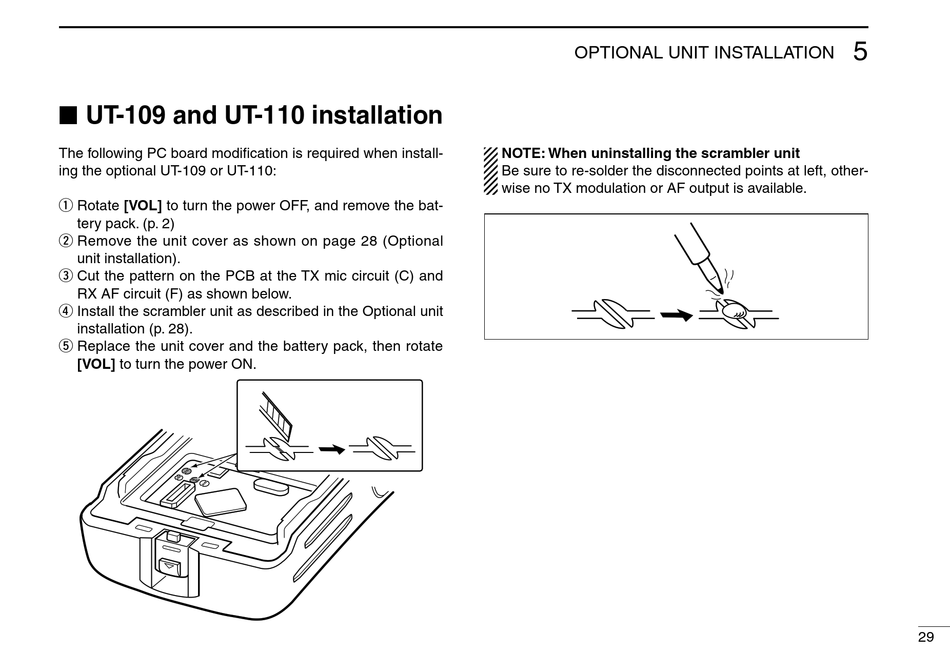

UT-109 and UT-110 installation

■
The following PC board modification is required when install-
ing the optional UT-109 or UT-110:
q Rotate [VOL] to turn the power OFF, and remove the bat-
tery pack. (p. 2)
w Remove the unit cover as shown on page 28 (Optional
unit installation).
e Cut the pattern on the PCB at the TX mic circuit (C) and
RX AF circuit (F) as shown below.
r Install the scrambler unit as described in the Optional unit
installation (p. 28).
t Replace the unit cover and the battery pack, then rotate
[VOL] to turn the power ON.

OPTIONAL UNIT INSTALLATION

NOTE: When uninstalling the scrambler unit
Be sure to re-solder the disconnected points at left, other-
wise no TX modulation or AF output is available.
