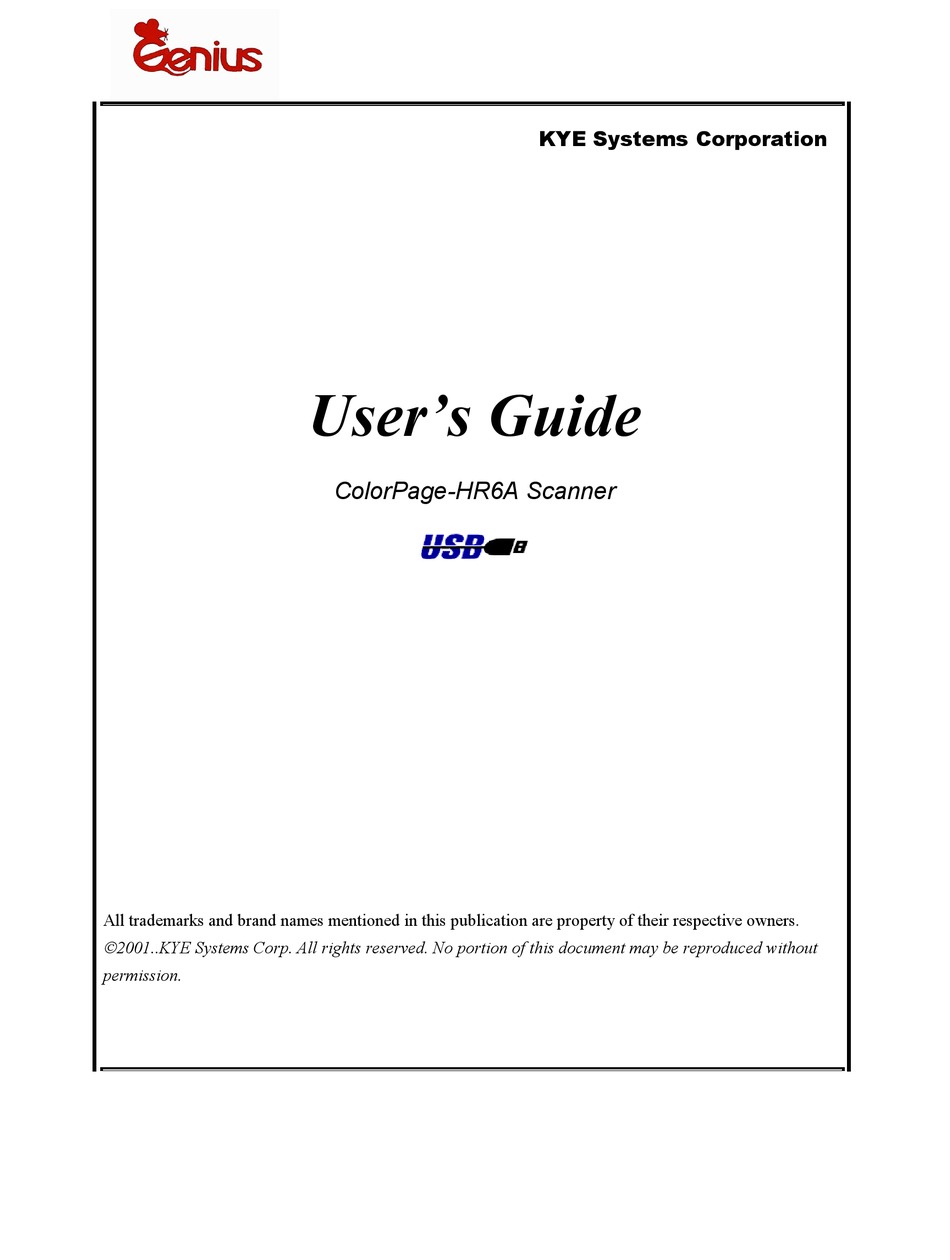

- Page 1 KYE Systems Corporation User’s Guide ColorPage-HR6A Scanner All trademarks and brand names mentioned in this publication are property of their respective owners. 2001..KYE Systems Corp. All rights reserved. No portion of this document may be reproduced without permission.
-
Page 2: Table Of Contents
ONVENTIONS OF THIS UIDE ..........................3 OTE ABOUT CONS ..........................4 YSTEM EQUIREMENTS ........................... 5 ACKAGE ONTENTS CHAPTER I. INSTALLING GENIUS COLORPAGE-HR6A SCANNER ..........6 ......................... 7 OFTWARE EQUIREMENTS ........................7 ARDWARE EQUIREMENTS ....................7 NSTALLING AND ETTING UP THE CANNER ......................... -
Page 3: Introduction
GeniusLife Homepage (http://www.geniusnet.com.tw) for getting better service. Thank you for choosing Genius Product. We hope you will continue to turn to us for additional quality products as your computing needs and interests grow. Genius ColorPage-HR6A Scanner... -
Page 4: How To Use This Guide
If any items are missing, please contact the vendor where you purchased your scanner or the Genius Service Center directly at one of the locations listed on the last page of this manual. -
Page 5: A Note About Icons
A procedure that must be followed carefully to prevent injury, or accidents. Danger Caution: Information that, if not followed, may result in data loss or damage to the product. Caution Pay Special Attention: Instructions that are important to remember and may prevent mistakes. Attention Genius ColorPage-HR6A Scanner... -
Page 6: System Requirements
64 MB RAM (128 MB Recommended) 160 Free Hard Disk Space (260 MB Recommended) USB Port Microsoft™ Windows Me/98/2000 NOTE: Windows NT 4.0 does not support Universal Serial Bus (USB) connectivity. Video card that supports 16-bit color or greater Genius ColorPage-HR6A Scanner... -
Page 7: Package Contents
Quick Installation Guide CD-ROM in 1 pc Setup / Application CD-ROM includes the following application programs: • Scanner Setup Program • Genius TWAIN Program • NewSoft PageManager Program • NewSoft ImageFolio (Imaging Editing Software) • ABBYY FineReader Sprint 4.0 (Text Recognition Software) •... -
Page 8: Chapter I. Installing Genius Colorpage-Hr6A Scanner
Chapter I. Installing Genius ColorPage-HR6A Scanner Genius ColorPage-HR6A Scanner... -
Page 9: Software Requirements
Hardware Requirements Genius ColorPage-HR6A scanner connects to your computer through the Universal Serial Bus (USB) which supports hot Plug and Play. To determine whether your computer is USB-capable, you must check the rear of your PC. Upon examination, you should find one or two rectangular USB ports. - Page 10 (see Figure 4, Step 4). You can find a USB sign beside the USB connector at the rear of the scanner. Plug the rectangular end (Type A connector) of the USB cable to the USB port on the back of your computer (see Figure 4, Step 5). Genius ColorPage-HR6A Scanner...
- Page 11 USB cable, make sure that it is a fully rated twisted-pair USB Attention cable and has a Type A connector at one end and a Type B plug on the other. The USB hub is not included with the scanner. Genius ColorPage-HR6A Scanner...
-
Page 12: Software Installation
Windows starts. 2. Please click on the NEXT button to continue. The following window will appear: 3. Choose SEARCH FOR THE BEST DRIVER FOR YOUR DEVICE [RECOMMENDED] and click on the NEXT button again, opening the following window: Genius ColorPage-HR6A Scanner... -
Page 13: Installing Additional Software
3. A window will pop up, asking you to confirm the deletion of the selected application and all of its components. Click OK and the UninstallShield program will run automatically and delete the scanner software driver. Once completed, restart Windows. Genius ColorPage-HR6A Scanner... -
Page 14: Chapter Ii. Usage And Maintenance
Chapter II. Usage and Maintenance Genius ColorPage-HR6A Scanner... -
Page 15: Scanner Utility Program
The Scanner Utility program does NOT affect the quality of scanned images. It is only used to establish a connection with the scanner. Settings that affect the scanned image (i.e., color, size, readability, clarity, etc.) can be found in the scanner software programs and especially the TWAIN interface. Genius ColorPage-HR6A Scanner... -
Page 16: Connection Status
Click on the ALIGN POSITION buttons until the top left corner of the scanned photograph aligns with the top left corner of the preview window. Click on the check mark button when the alignment has been completed. Genius ColorPage-HR6A Scanner... -
Page 17: Lamp Control
You may also set the default time for the lamp to automatically turn off after a scan by clicking the up or down arrows next to the area that reads “minutes to turn off lamp.” Genius ColorPage-HR6A Scanner... -
Page 18: Using The Adf (Auto Document Feeder)
Lift up the paper tray. Paper Input Tray Paper Width Slider Paper Output Tray Figure 7. Automatic Document Cover If you are loading long sheets of paper into the ADF, slide the extension arm to its upright Genius ColorPage-HR6A Scanner... - Page 19 Attention • The ADF cover should be kept closed when not in use. Make sure to return the extension arm to its down position before closing the cover Genius ColorPage-HR6A Scanner...
-
Page 20: Scanning
Pressing the “Scan” hot key button on the front site of scanner body. The Presto! PageManager software will be launched, then Genius TWAIN window will appear and starts to automatically scan. (refer to Figure 9. Genius TWAIN) You may select the appropriate scan mode and resolution. - Page 21 If an image appears on your screen, your scanner is working properly. If the image doesn’t appear to your liking, don’t worry. You only need to adjust some settings in the Genius TWAIN window. To learn how to adjust scanner settings, please refer to the Genius Help by clicking on the Help button in the Genius TWAIN window.
-
Page 22: Chapter Iii. How To Use Quick Function Buttons
Chapter III. How to Use Quick Function Buttons Genius ColorPage-HR6A Scanner... -
Page 23: Function Buttons Setting
2. To use ADF scanning, please make sure to remove documents from the scanning glass before doing ADF documents scan. 3. Press the “Scan” Button 4. “PageManager” Window displayed 5. “Genius TWAIN” displayed 6. Automatically scanning 7. Automatically saving file under the folder of “INBOX” in “PageManager” software. "Email/Web" Button Note 1. - Page 24 To use ADF scanning, please make sure to remove documents from the scanning glass before doing ADF documents scan. Press the “Email/Web” Button Automatically scanning Automatically saving image file and transfer image file into “Page abc” Web Editing software. Genius ColorPage-HR6A Scanner...
-
Page 25: Text/Ocr" Button
To use ADF scanning, please make sure to remove documents from the scanning glass before doing ADF documents scan. Press the Print/Copy Button Scanner starting to automatically scan Choose “Yes” or “No” for Next Page to Copier Copying Genius ColorPage-HR6A Scanner... -
Page 26: File/Fax" Button
Place a document or picture face down on the scanning glass. To use ADF scanning, please make sure to remove documents from the scanning glass before doing ADF documents scan. Press the “File/Fax” Button Scanner starting to automatically scan Genius ColorPage-HR6A Scanner... - Page 27 Choose “Yes” or “No” for Next Page to scan. “PageManager” Window Open. Scanned Image will be filed into the default folder of “PageManager”. Genius ColorPage-HR6A Scanner...
-
Page 28: Maintenance
Then, wipe the glass thoroughly with the cloth. DO NOT SPRAY CLEANER DIRECTLY ONTO THE SCANNER GLASS. Excess liquid residue may fog or damage the scanner. • ° ° ° ° Your scanner operates best in temperatures between 10 C to 40 C (50 F to 104 Genius ColorPage-HR6A Scanner... -
Page 29: Appendix A: Specifications
USB Port Warranty: 1 Year Warranty (from date of purchase) Lamp type: Cold Cathode Lamp Power adapter: Power Output DC 24V, 550mA Power Consumption: Operation – 13.2 watts maximum Idle – 6 watts EMI: FCC Class B Genius ColorPage-HR6A Scanner... -
Page 30: Appendix B: Customer Service And Warranty
We are continuously enhancing the performance of our product drivers. To check for the updated device driver you may visit our Web Site. (Please refer to the section of “Contacting Genius” on the last page of this manual.) Attention Genius ColorPage-HR6A Scanner... -
Page 31: Statement Of Limited Warranty
If this product is an optional feature, this Limited Warranty applies only when the feature is used in a machine for which it was designed. If you have any questions about your Limited Warranty, contact Genius. THIS LIMITED WARRANTY REPLACES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABLITY AND FITNESS FOR A PARTICULAR PURPOSE. -
Page 32: Fcc Radio Frequency Statement
Consult the dealer or an experienced radio/TV technician for help if the conditions persist. √ Changes or modifications not expressly approved by the manufacturer or authorized service center could void the users authority to operate this equipment. Genius ColorPage-HR6A Scanner... -
Page 33: Contacting Genius
Web site: http://www.geniusnet.com.tw Fax: (852)2341 9517 Web Site: http://www.geniusnet.com.hk ASIA PACIFIC ASIA PACIFIC Genius IT Incorporation (Thailand) Ltd. KYE Systems (M) SDN BHD 7 The IT Mall Plaza Bldg. NO. 2, Jalan BK 1/12, Kinrara Industrial Park Room no. 3E 43-44 (3 fl.)
