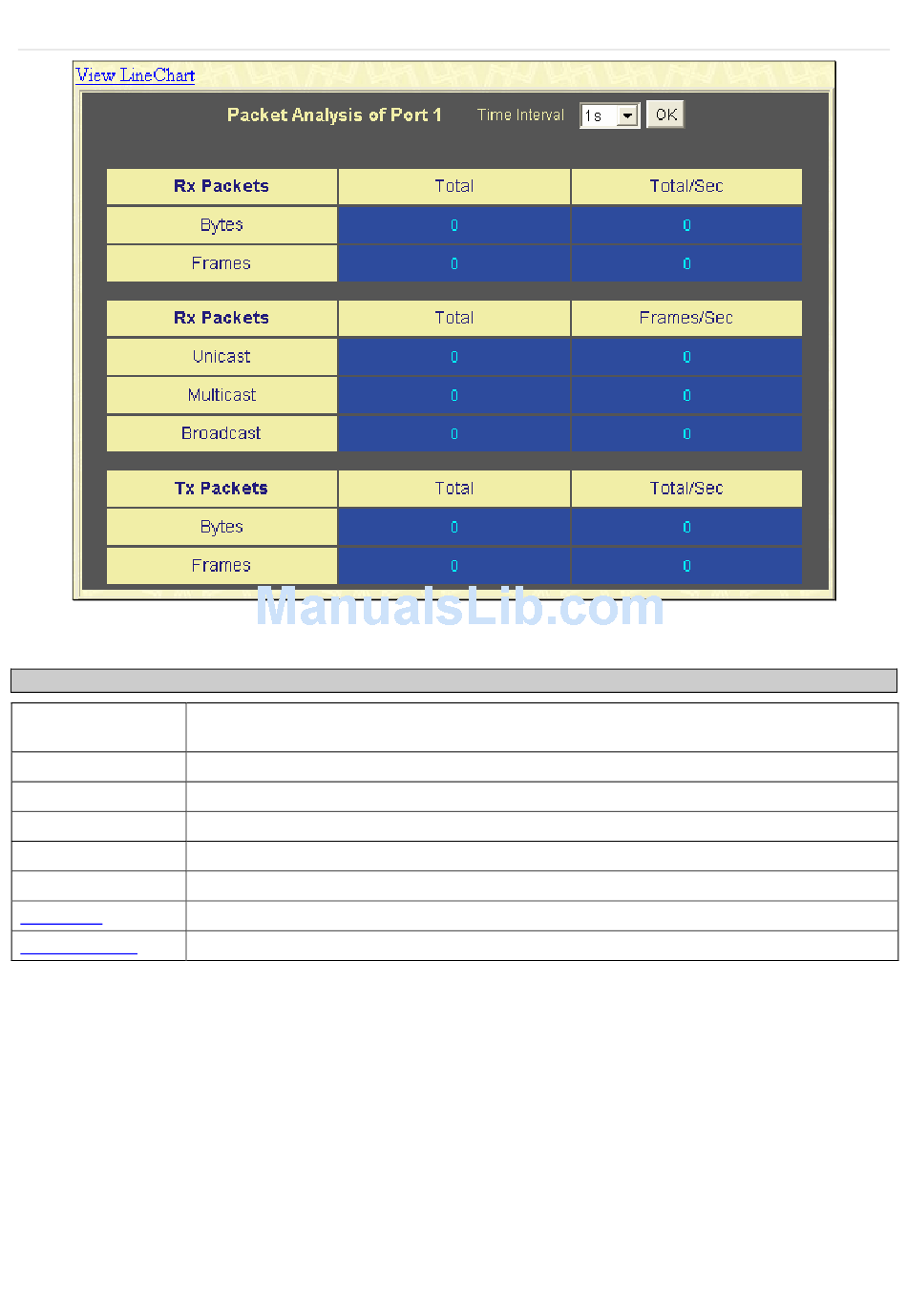

Figure 8- 5. Rx Packets Analysis window (table for Bytes and Packets)
The following fields may be set or viewed:
Parameter
Time Interval
Record Number
Bytes
Packets
Show/Hide
Clear
View Table
View Line Chart

UMB Cast (RX)

Click, Monitoring > Packets > UMB Cast (RX) to view the following graph of UMB cast packets received on the Switch.
®
DES-3500 Series Layer 2 Stackable Fast Ethernet Managed Switch User Manual
Description
Select the desired setting between 1s and 60s, where "s" stands for seconds. The default
value is one second.
Select number of times the Switch will be polled between 20 and 200. The default value is 20.
Counts the number of bytes received on the port.
Counts the number of packets received on the port.
Check whether to display Bytes and Packets.
Clicking this button clears all statistics counters on this window.
Clicking this button instructs the Switch to display a table rather than a line graph.
Clicking this button instructs the Switch to display a line graph rather than a table.
