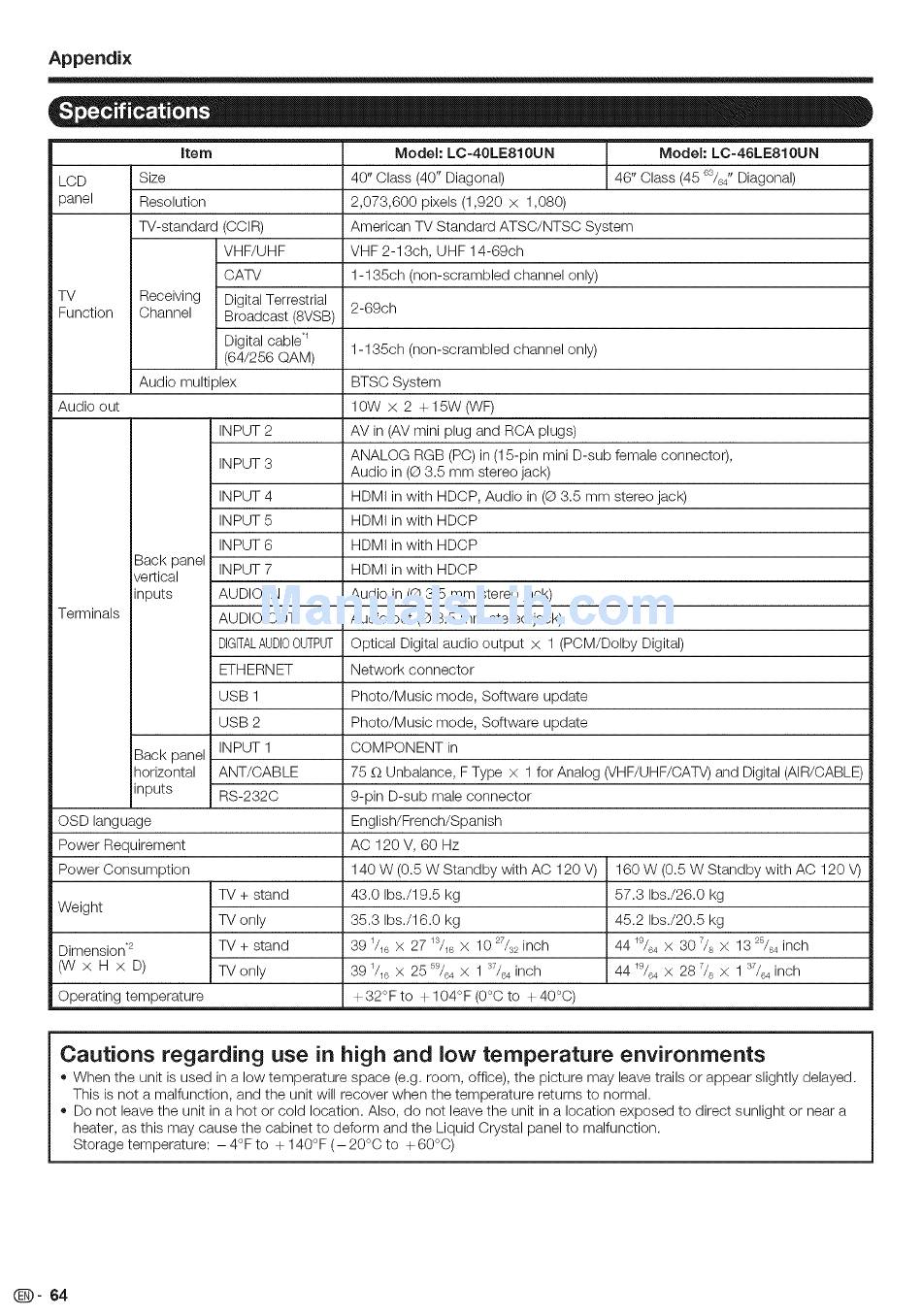

Appendix
item Model: LC-40LE810UN Model: LC-46LE810UN
LCD Size 40" Class (40" Diagonal) 46" Class (45 Gs ,, /04 Diagonal)
panel Resolution 2,073,600 pixels (1,920 x 1,080)
TV-standard (CCIR) American TV Standard ATSC/NTSC System
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-135ch (non-scrambled channel only)
TV Receiving Digital Terrestrial
2-69ch
Function Channel Broadcast (8VSB)
Digital cable .1
1-135ch (non-scrambled channel only)
(64/256 QAM)
Audio multi olex BTSC System
Audio out 10W x 2 ÷ 15W (WF)
INPUT 2 AV in (AV mini plug and RCA plugs)
ANALOG RGB (PC) in (15-pin mini D-sub female connector),
INPUT 3
Audio in (® 3.5 mm stereo jack)
INPUT 4 HDMI in with HDCP, Audio in (® 3.5 mm stereo jack)
INPUT 5 HDMI in with HDCP
INPUT 6 HDMI in with HDCP
Back panel
vertical INPUT 7 HDMI in with HDCP
inputs AUDIO IN Audio in (@3.5 mm stereo jack)
Terminals AUDIO OUT Audio out (© 3.5 mm stereo jack)
DIGITALAUDI00UTPUT O ptical Digital audio output x 1 (POM/Dolby Digital)
ETHERNET Network connector
USB 1 Photo/Music mode, Software update
USB 2 Photo/Music mode, Software update
INPUT 1 COMPONENT in
Back panel
horizontal ANT/CABLE 75 _ Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
inputs RS-2320 9-pin D-sub male connector
OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
Power Consumption 140 W (0.5 W Standby with AC 120 V) 160 W (0.5 W Standby with AC 120 V)
TV + stand 43.0 Ibs./19.5 kg 57.3 Ibs./26.0 kg
Weight
TV only 35.3 Ibs./16.0 kg 45.2 Ibs./20.5 kg
Dimension*2 TV + stand 39 _/_6x 27 ls/_6 x 10 27/s2 inch 44 19/64 x 30 7/8 x 13 26/64 inch
(W x H x D) TV only 39 1/16x 25 59/64x 1 s7/64 inch 44 19/64 x 28 7/6 x 1 s7/64 inch
Operating temperature ÷ 32°F to ÷ 104°F (0°C to ÷ 40°0)
Cautions regarding use in high and low temperature environments
o When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
o Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.
Storage temperature: - 4°F to ÷ 140°F (- 20°C to ÷ 60°C)
