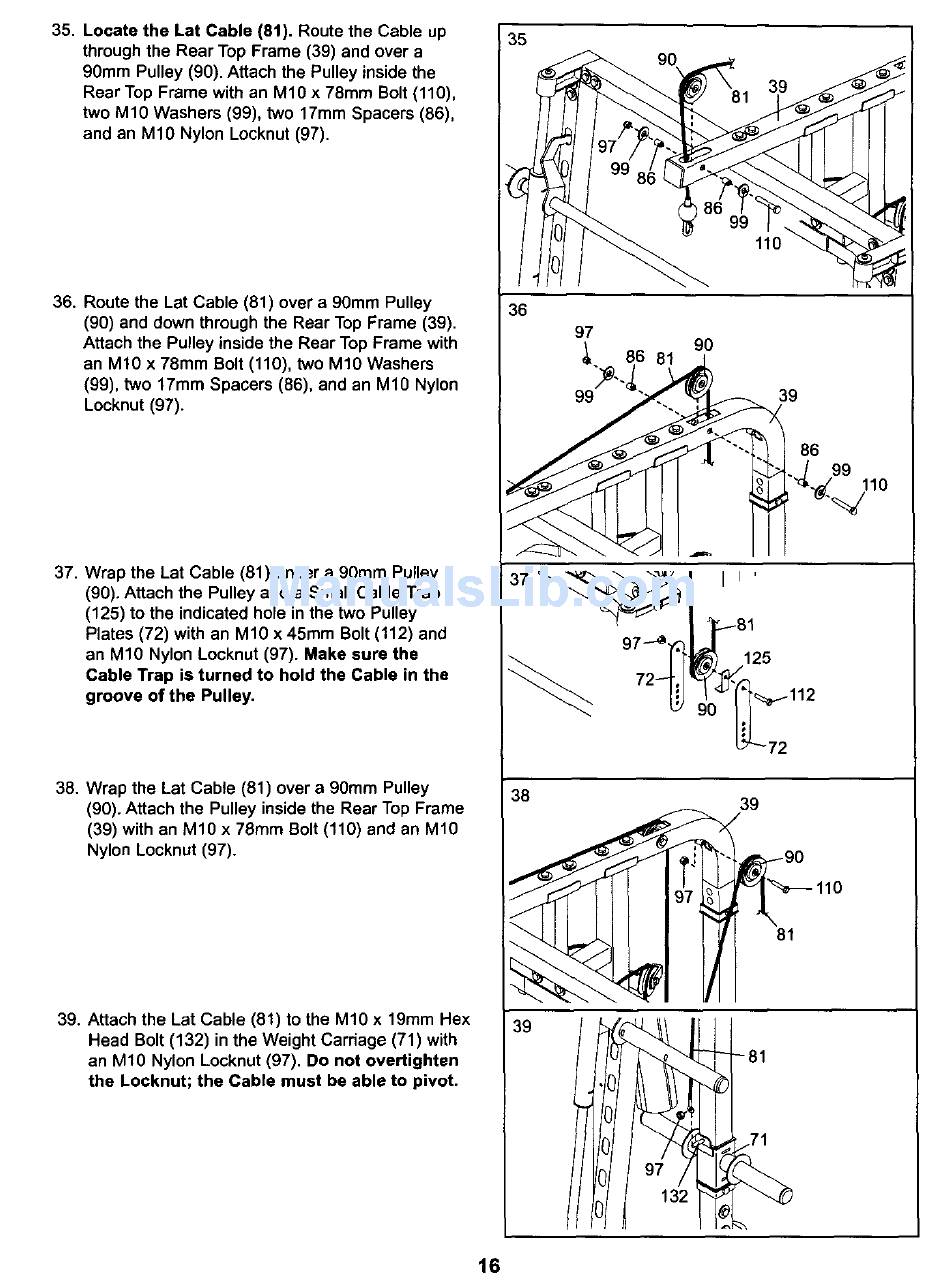

35. Locate the Lat Cable (81). Route the Cable up
through the Rear Top Frame (39) and over a
90ram Pulley (90). Attach the Pulley inside the
Rear Top Frame with an M10 x 78mm Bolt (110),
two M10 Washers (99), two 17mm Spacers (86),
and an M10 Nylon Locknut (97).
36. Route the Let Cable (81) over a 90mm Pulley
(90) and down through the Rear Top Frame (39).
Attach the Pulley inside the Rear Top Frame with
an M10 x 78mm Bolt (110), two M10 Washers
(99), two 17mm Spacers (86), and an M10 Nylon
Locknut (97).
37. Wrap the Lat Cable (81) under a 90mm Pulley
(90). Attach the Pulley and a Small Cable Trap
(125) to the indicated hole in the two Pulley
Plates (72) with an M10 x 45mm Bolt (112) and
an M10 Nylon Locknut (97). Make sure the
Cable Trap is turned to hold the Cable in the
groove of the Pulley,
38. Wrap the Lat Cable (81) over a 90mm Pulley
(90). Attach the Pulley inside the Rear Top Frame
(39) with an M10 x 78ram Bolt (110) and an MI0
Nylon Locknut (97).
39. Attach the Let Cable (81) to the M10 x 19mm Hex
Head Bolt (132) in the Weight Carriage (71) with
an M10 Nylon Locknut (97). Do not overtightan
the Locknut; the Cable must be able to pivot.
35
90
110
36
97
99
9O
39
86
99
38 39
81
39
110
16
