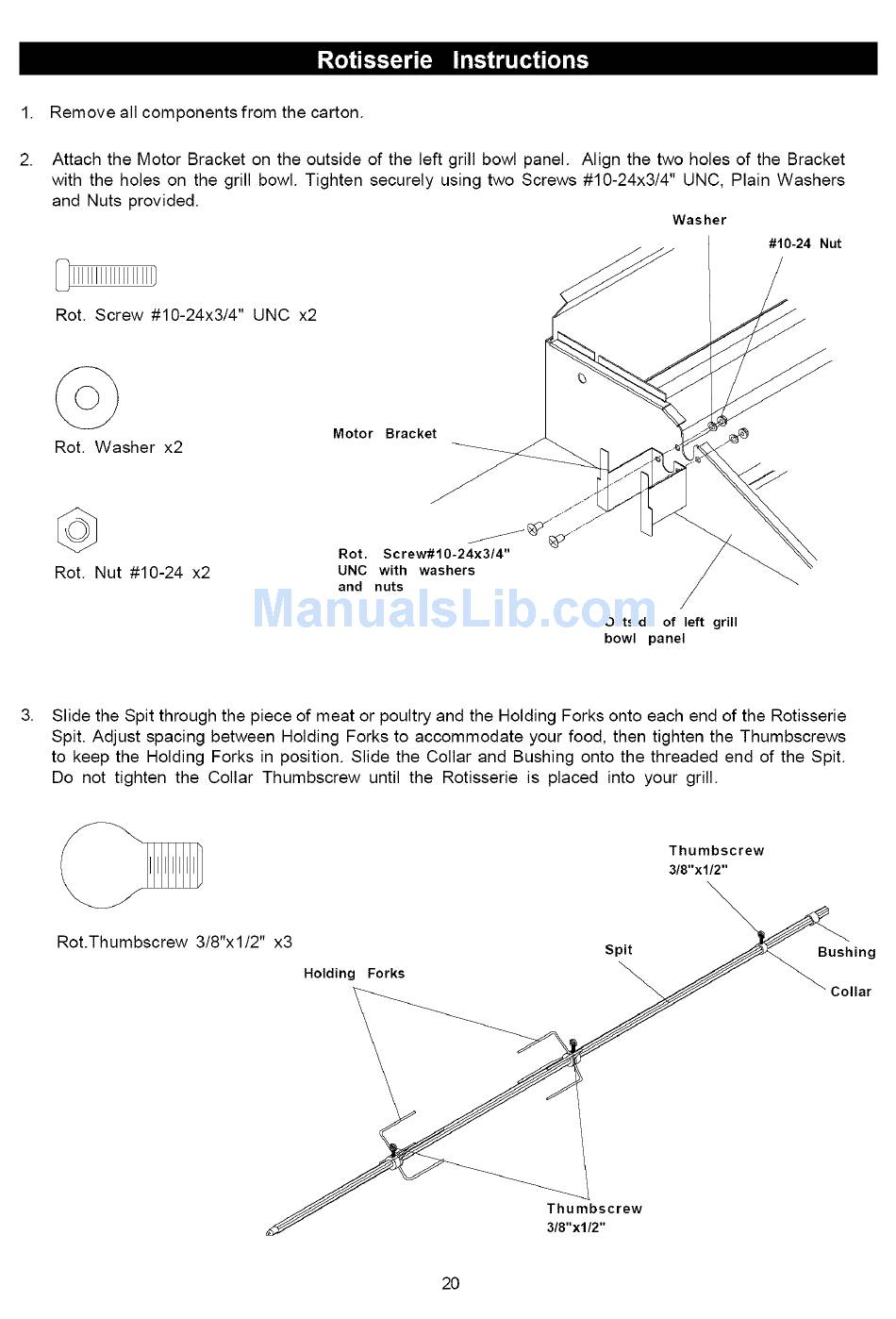

Remove all components from the carton.
Attach the Motor Bracket on the outside of the left grill bowl panel. Align the two holes of the Bracket
with the holes on the grill bowl. Tighten securely using two Screws #10-24x3/4"
UNC, Plain Washers
and Nuts provided.
Washer
#10-24
Nut
[ 11111111111111111
Rot. Screw #10-24x3/4"
UNC x2
©
Rot. Washer
x2
Motor
Bracket
Rot. Nut #10-24 x2
r
//
Rot.
Screw#10-24x3/4"
UNC
with
washers
and
nuts
Outside
of left grill
bowl
panel
.
Slide the Spit through the piece of meat or poultry and the Holding Forks onto each end of the Rotisserie
Spit. Adjust spacing between Holding Forks to accommodate
your food, then tighten the Thumbscrews
to keep the Holding Forks in position. Slide the Collar and Bushing onto the threaded end of the Spit.
Do not tighten the Collar Thumbscrew
until the Rotisserie
is placed into your grill.
Thumbscrew
3/8"x1/2"
Rot.Thumbscrew
3/8"xl/2"
x3
Holding Forks
Spit
Bushing
Collar
Thumbscrew
3/8"x1/2"
