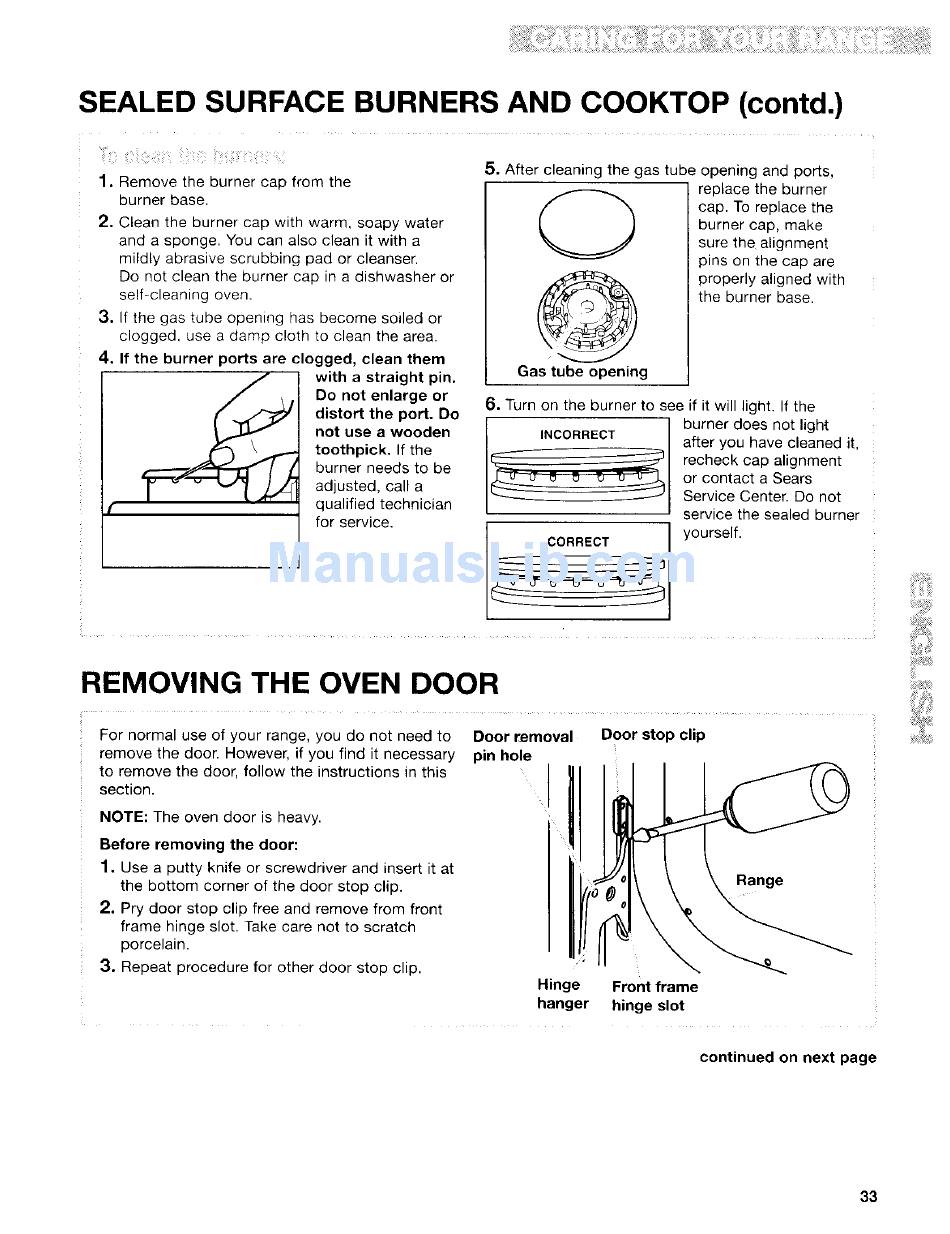

SEALED SURFACE BURNERS AND COOKTOP (contd.)
1.
Remove the burner cap from the
burner base.
2. Clean the burner cap with warm, soapy water
and a sponge. You can also clean it with a
mildly abrasive scrubbing pad or cleanser.
Do not clean the burner cap in a dishwasher or
self-cleaning oven.
3, If the gas tube opening has become soiled or
clogged, use a damp cloth to clean the area.
4. If the burner ports are clogged, clean them
with a straight pin.
Do not enlarge or
distort the port. Do
not use a wooden
toothpick. If the
burner needs to be
adjusted, call a
qualified technician
for service.
5. After cleaning the gas tube opening and ports,
C)
Gas tube opening
replace the burner
cap. To replace the
burner cap, make
sure the alignment
pins on the cap are
properly aligned with
the burner base.
6.
Turn on the burner to see if it will light. If the
burner does not light
after you have cleaned it,
recheck cap alignment
or contact a Sears
Service Center. Do not
service the sealed burner
yourself.
REMOVING THE OVEN DOOR
For normal use of your range, you do not need to Door removal
remove the door. However, if you find it necessary pin hole
to remove the door, follow the instructions in this I
section.
I
NOTE: The oven door is heavy.
Before removing the door:
1.
Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door stop clip
Range
Hinge Front frame
hanger hinge slot
continued on next page
33
